Installation Steps 35
PV-10PX / PV-10HPX

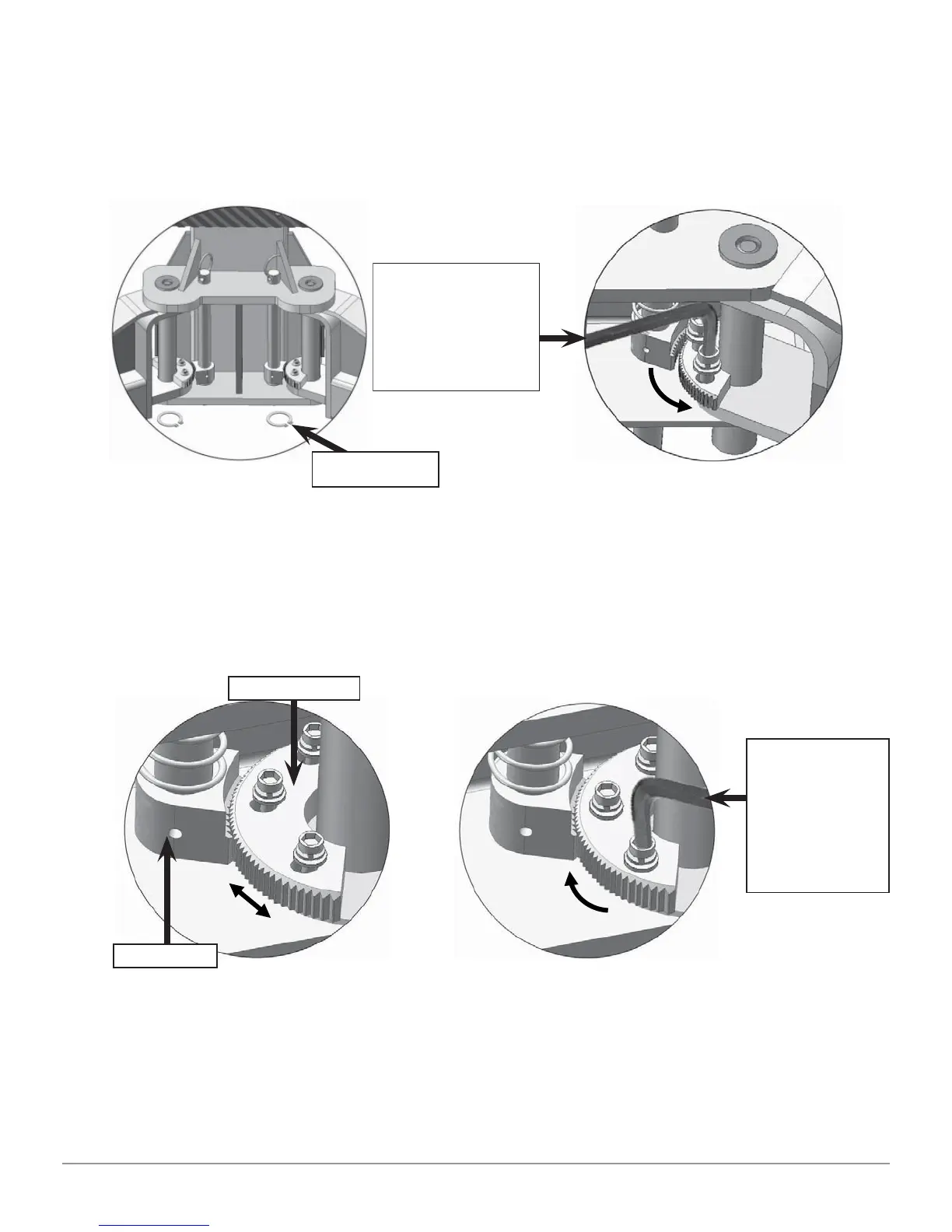

Q. Install lifting arms and adjust the arm locks
1. Install lifting arms. (Fig. 40)
2. Lower the carriages down to the lowest position. Use an 8mm Allen wrench to
loosen the bolt. (Fig. 41)
Fig. 40 Fig. 41
3. Adjust arm lock in direction of arrow. (Fig. 42)
4. Adjust moon gear and arm lock until they mesh, then tighten the Allen bolts
on the arm lock. (Fig. 43)
Fig. 42 Fig. 43
Use the 8mm
Allen Head
Wrench to
loosen the
Allen Bolt
Snap Ring
Tighten the
bolts after
the moon
gear and
arm lock
mesh well
Moon Gear
Arm Lock
To Next Page
