30.1.11 Internal Oscillator Speed

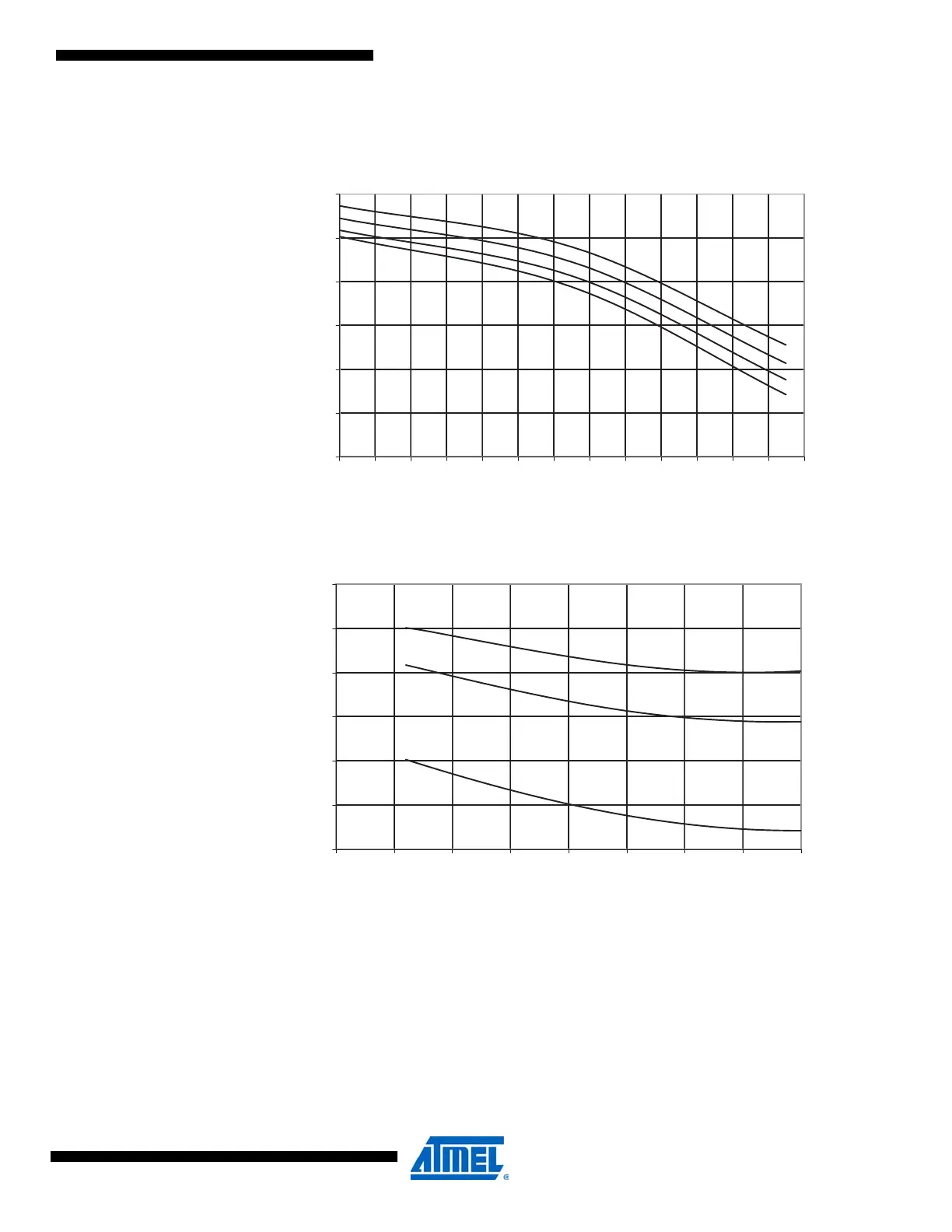

Figure 30-35. ATmega48A: Watchdog Oscillator Frequency vs. Temperature
Figure 30-36. ATmega48A: Watchdog Oscillator Frequency vs. V
CC
5.5 V
4.0 V
3.3 V
2.7 V
104
106
108
110
112
114
116
-40 -30 -20 -10 0 10 20 30 40 50 60 70 8090
Temperature (°C)
F
RC
(kHz)
85 °C
25 °C
-40 °C
106
108
110
112
114
116
118
1.5 2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
F
RC
(kHz)
