ATtiny15L
7
Register Direct, Single-register Rd

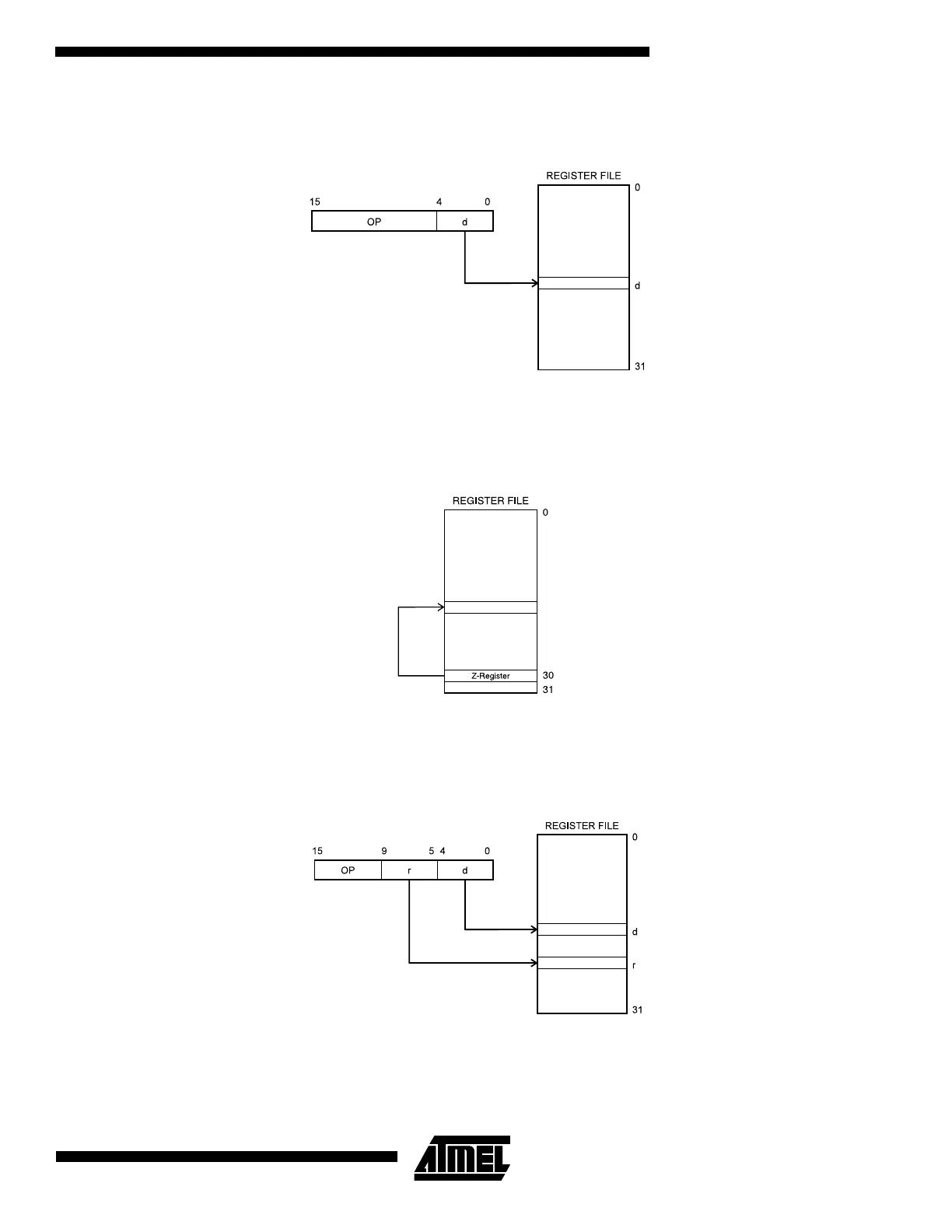

Figure 4. Direct Single-register Addressing
The operand is contained in register d (Rd).
Register Indirect
Figure 5. Indirect Register Addressing
The register accessed is the one pointed to by the Z-register low byte (R30).
Register Direct, Two Registers Rd and Rr
Figure 6. Direct Register Addressing, Two Registers
Operands are contained in register r (Rr) and d (Rd). The result is stored in register d (Rd).
