Atmel SAMA5D3 EK Series User Manual

26
SAMA5D3x-EK User Guide [USER GUIDE]
11180B–ATARM–29-Oct-13
4.3.10 SODIMM200 Interface
The SAMA5D3 series CM board uses SODIMM200 card edge connector to interface with the MB board.
Refer to Section 5.4.22 “SODIMM Card Edge Socket”.
4.3.11 Connectors

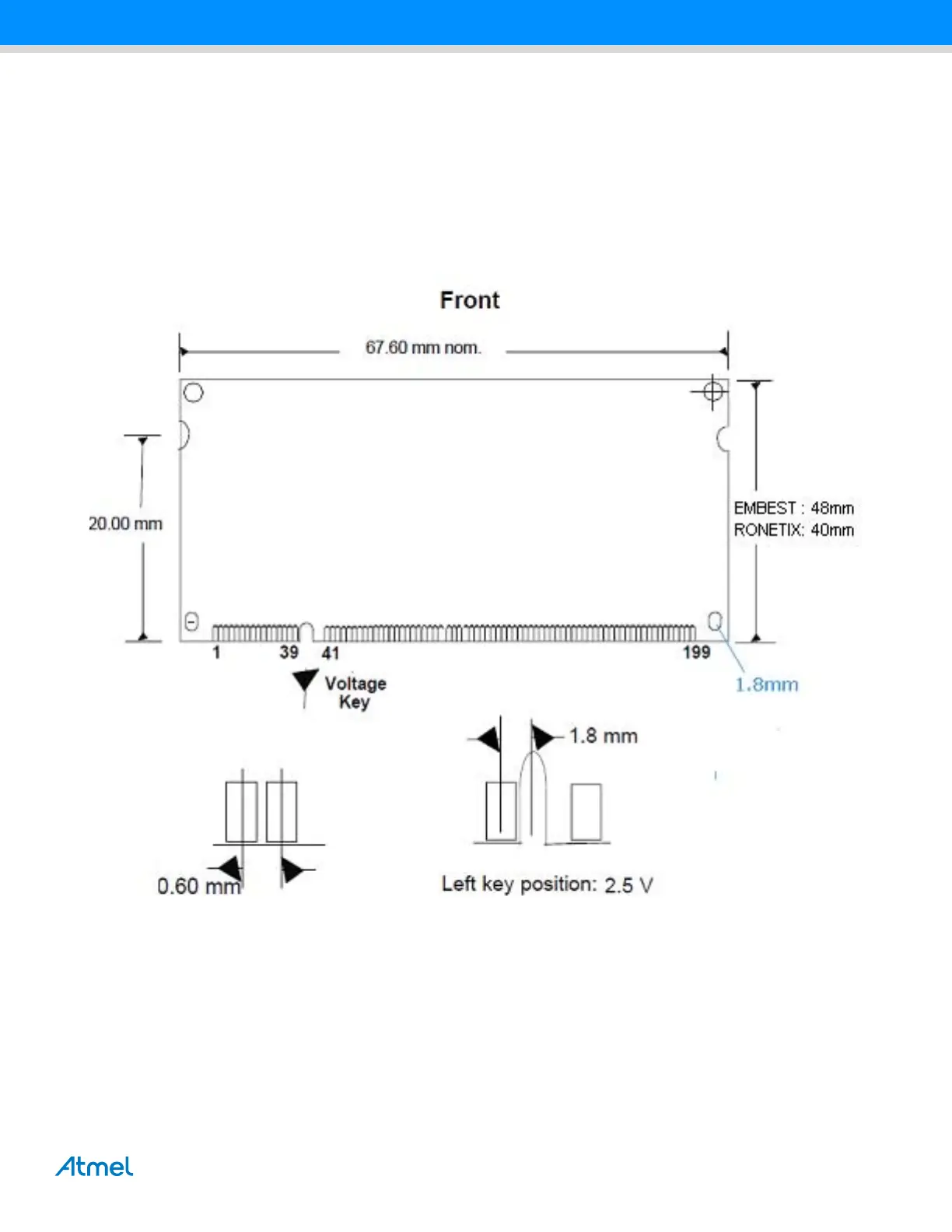

Figure 4-19 shows the mechanical dimensions of the SAMA5D3 series CM board outline and the mounting holes.
Figure 4-19. CPU Module Board Dimensions
Holes for mounting screws on carrier board.
