53
SAMA5D3x-EK User Guide [USER GUIDE]
11180B–ATARM–29-Oct-13
5. Main Board (MB)
5.1 Main Board Overview
The SAMA5D3 series main board (MB) hosts any of the SAMA5D31/33/34/35/36 CPU module boards (CM). The main
board features all necessary peripheral devices and interfaces for processor evaluation.

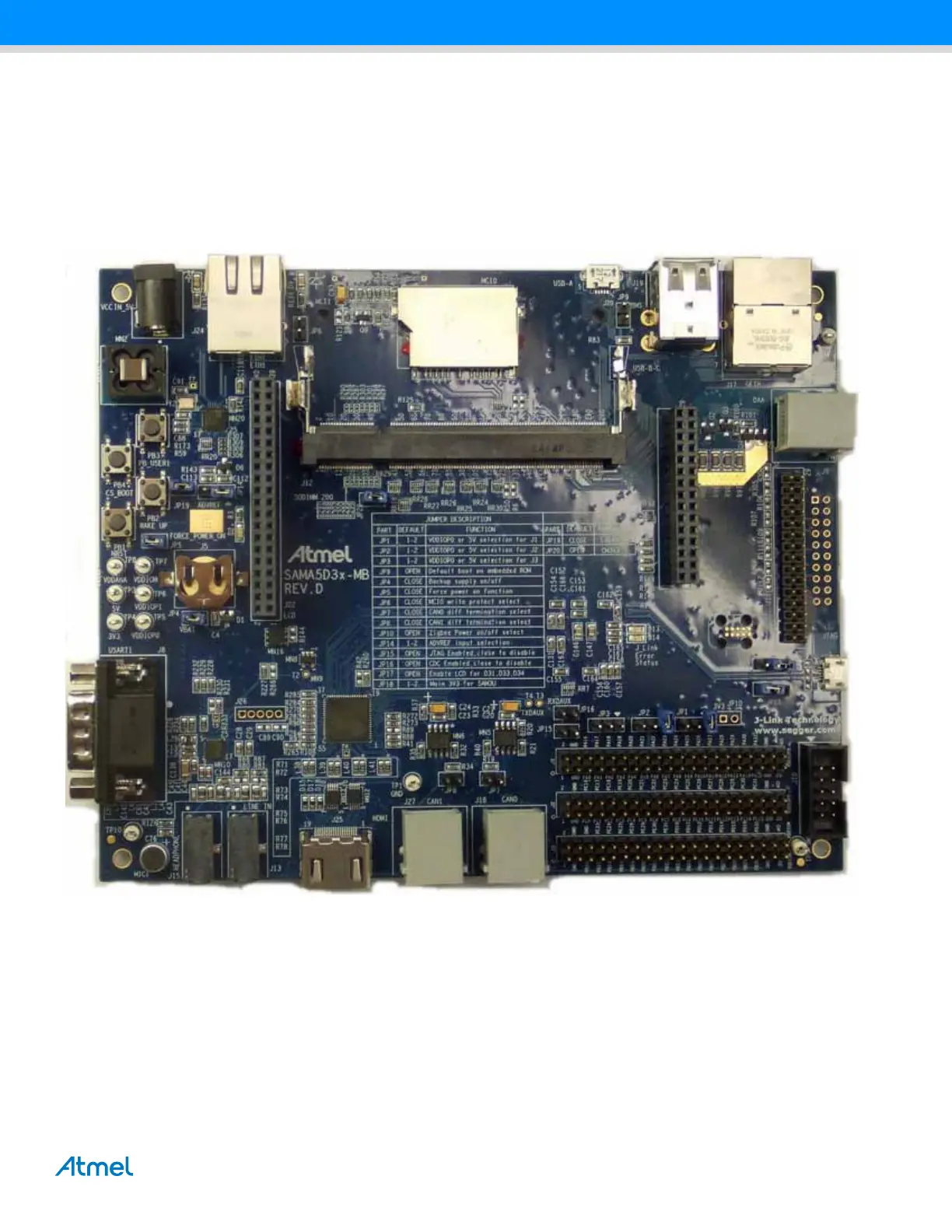

Figure 5-1. Main Board Top View
