82
SAMA5D3x-EK User Guide [USER GUIDE]
11180B–ATARM–29-Oct-13
5.4.9 CAN RJ12 Socket (6P6C)

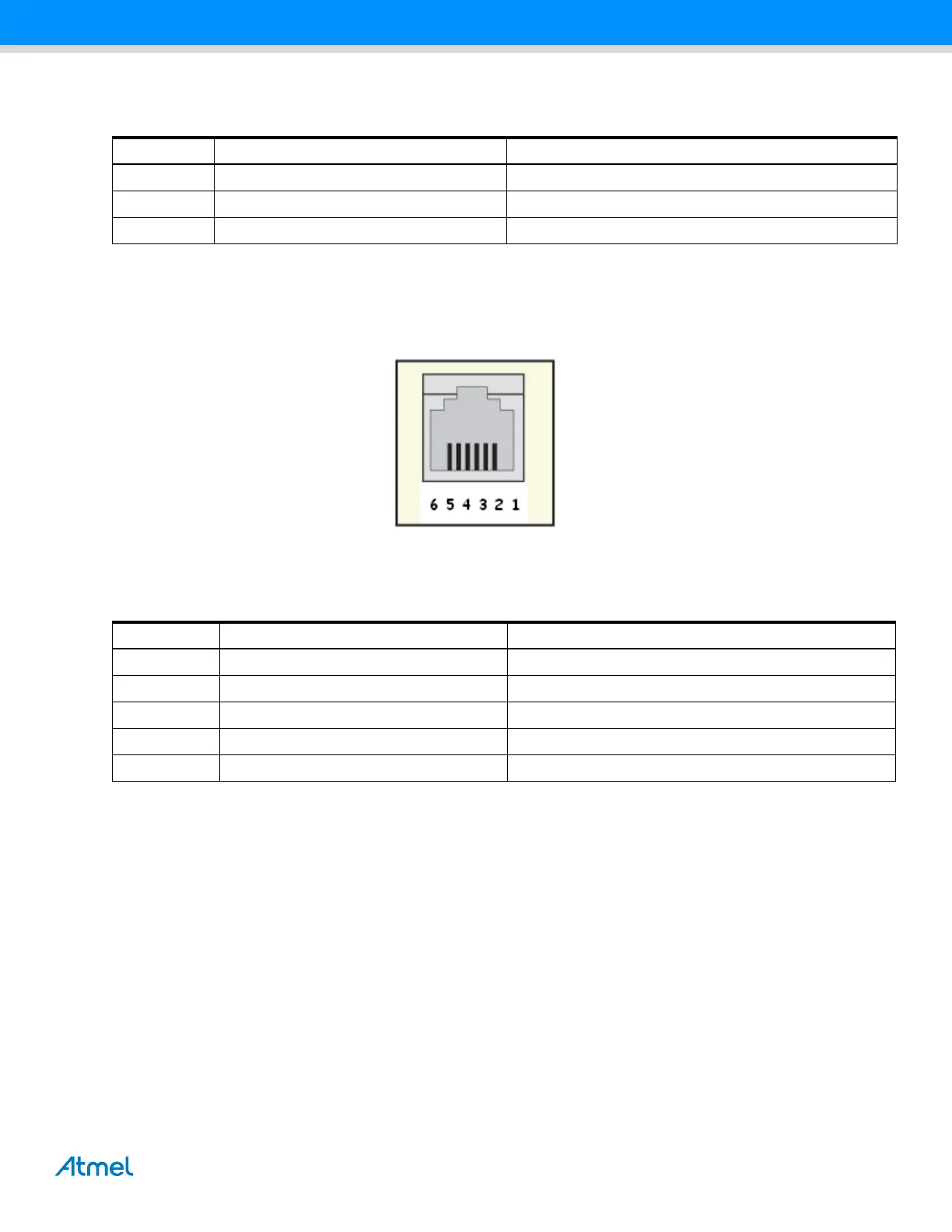

Figure 5-32. CAN RJ12 Socket J18, J27
Table 5-11. DAA RJ11 Socket J16 Signal Descriptions
Pin Mnemonic Signal Description
1, 2, 5, 6 No connection
3 RAC RING side of ordinary telephone line
4 TAC TIP side of ordinary telephone line
Table 5-12. CAN RJ12 Socket Signal Descriptions
Pin Mnemonic Signal Description
1 3V3 Power pin
2 5V Power pin
4 CANL CAN bus differential pair
5 CANH CAN bus differential pair
3, 6 GND Common ground
