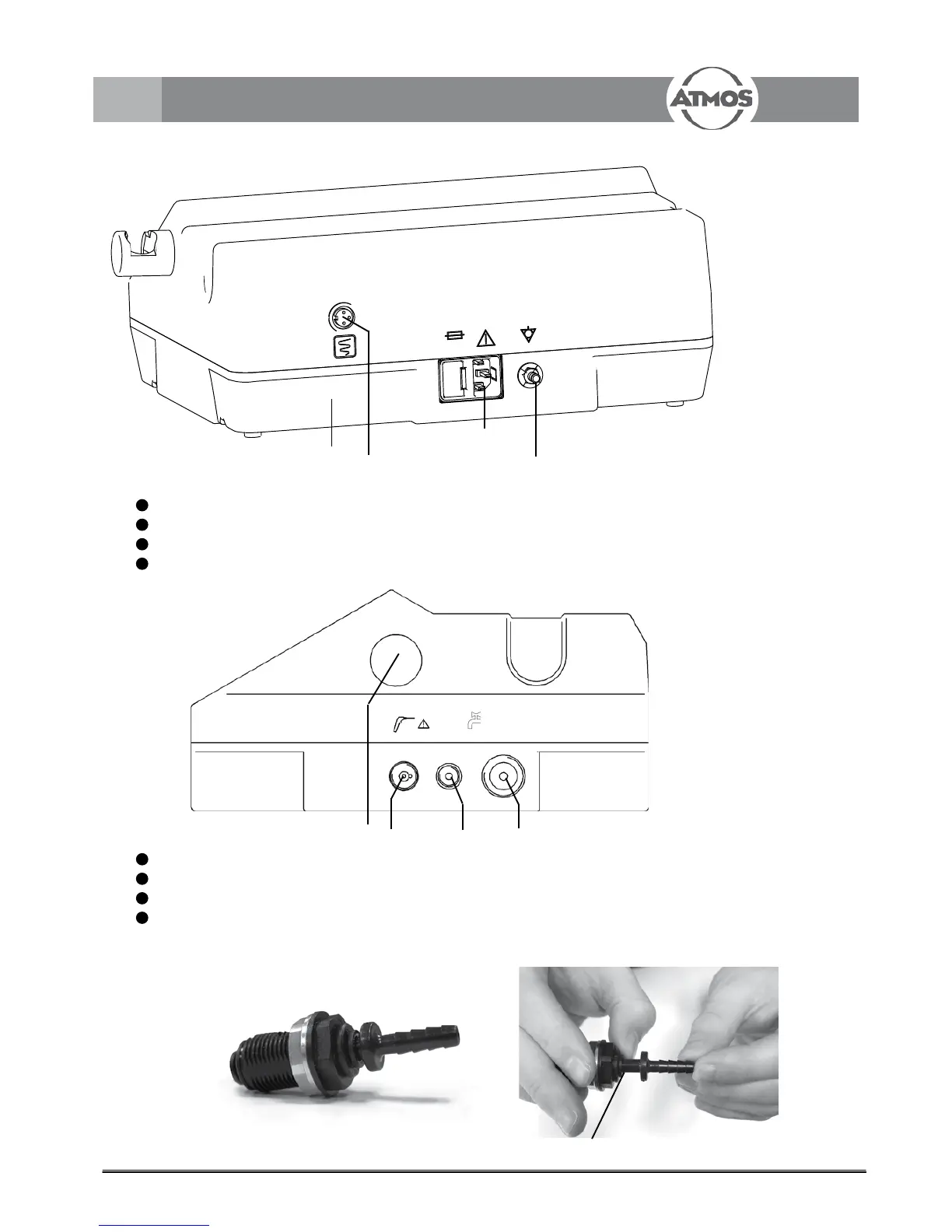

Fig. 3. Side view
1
Support for handle
2
Connection for double-barrelled hose
3
Connectionforwastewaterhose*
4
Connectionforwatersupplyhose
3.0 Setting up and starting up
F 14 AH




Fig. 2. Rear view
1
Type plate
2
Control output for controlling a nystagmograph
3
Deviceplugwithfusecompartment
4
Equipotential bonding connection




p=+2000...+6000hPa
t=+7...+19,5°C
Pressdownring



*
