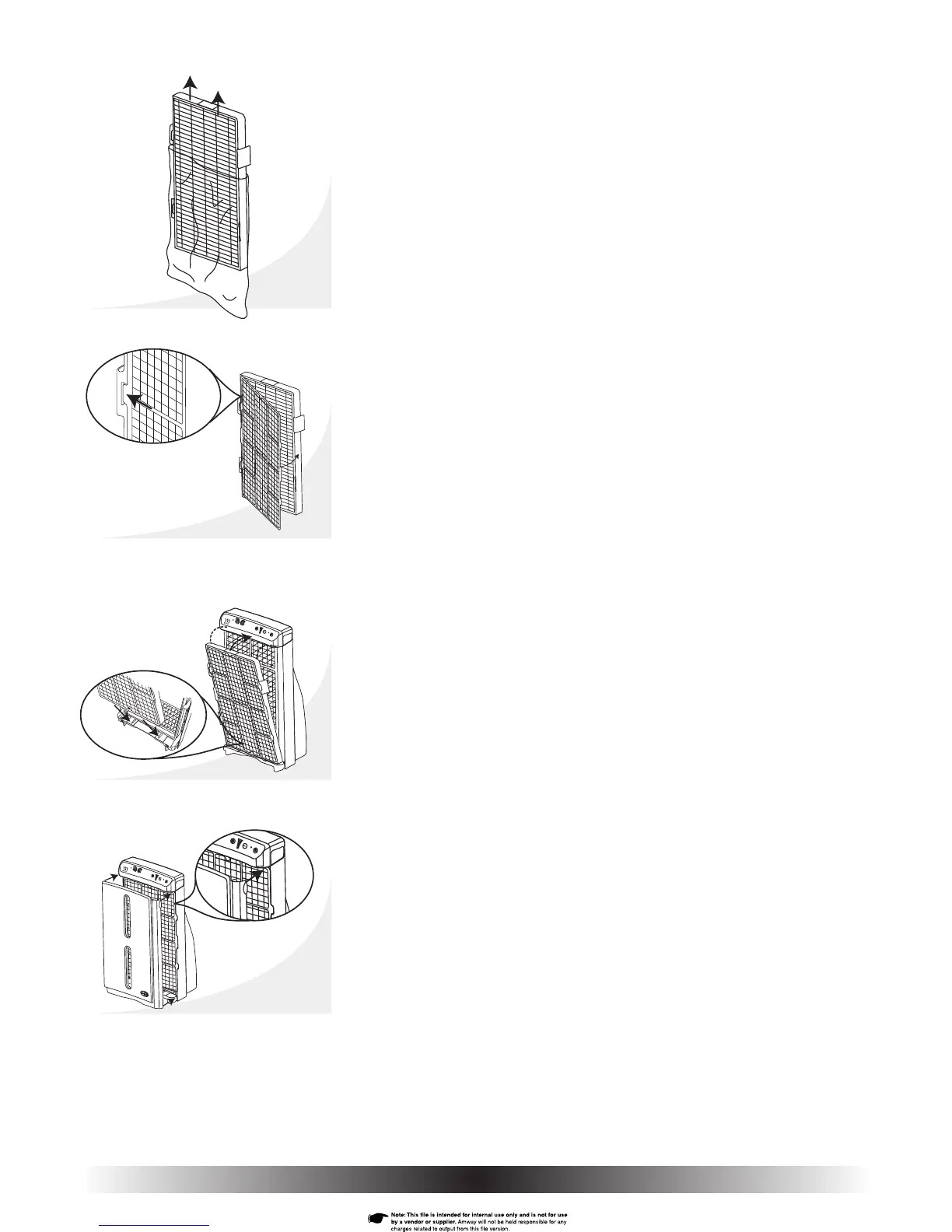

2. Remove the HEPA fi lter from its plastic bag (Fig. 8).
3. Reattach the pre-fi lter by sliding the left two tabs into the slots in the
frame of the HEPA fi lter (Fig. 9a).
4. Slide the right two tabs into the slots in the frame of the HEPA fi lter
(Fig. 9).
5. With the pre-fi lter facing out, reinstall the combined fi lter assembly by
fi rst placing the bottom of the frame into the slots at the bottom of the
housing (Fig. 10a).
6. Swing the fi lters in place making sure the two tabs on the frame fi t into
the slots on each side of the housing (Fig. 10).
7. Reattach the front cover by aligning the four black pegs on the back of the
cover with the four corresponding holes on the housing (Fig 11a). Starting
with the top two, push the four black pegs into the holes (Fig. 11).
Fig. 8
Fig. 11
Fig. 11a
Fig. 9
Fig. 9a
Fig. 10a
Fig. 10
