Installation Manual:

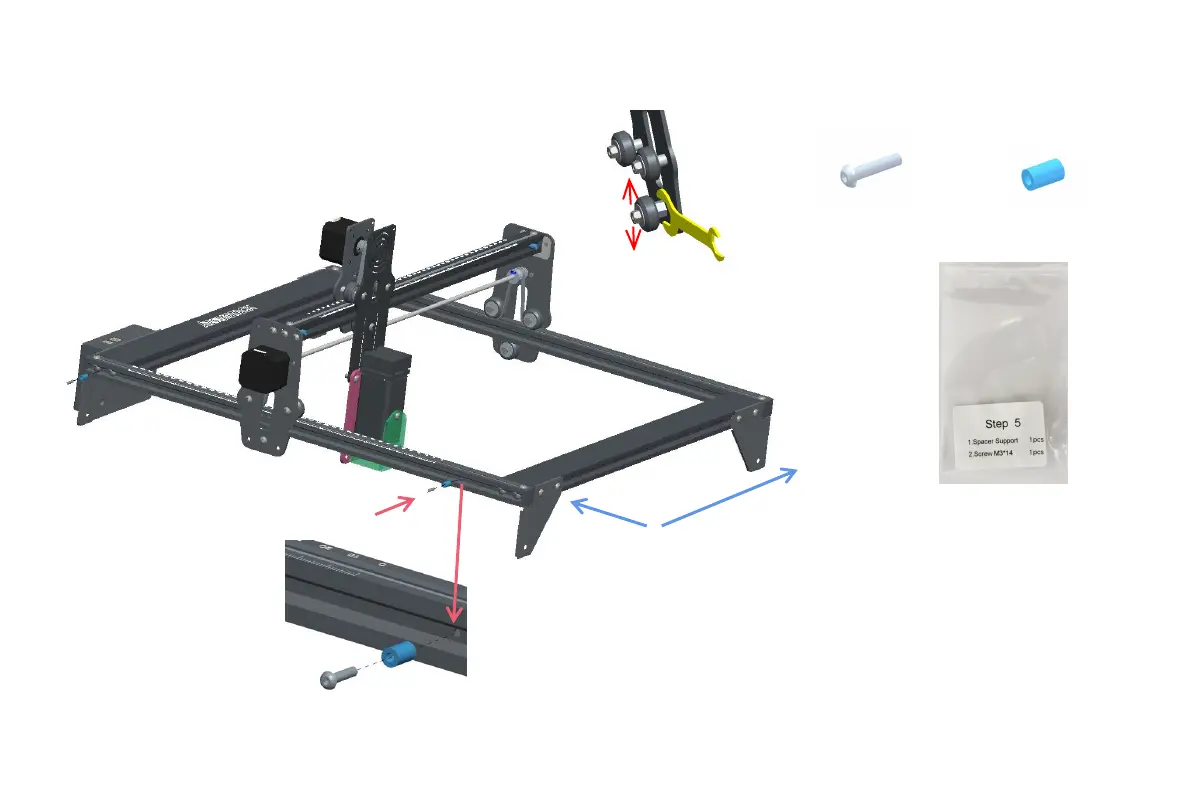

1. As shown in the figure, fix the Y-axis limit
column with M3*14 screws on the left slide rail.
2. Adjust the eccentric nut to ensure that the X-
axis and Y-axis move smoothly without shaking.
TIPS：
How to determine the tightness of eccentric nuts?
Under the condition of ensuring that the bracket does
not shake, you can lift one end of the machine to an
angle of 45 degrees with the horizontal plane, and
release the X-axis or Y-axis bracket from a high place.
If the bracket can slide at a constant speed to the end,
the tightness is suitable.
Y
X
M3*14Screw*1
(Pro：M3*14Screw*2)
Y-axis limit column *1
(Pro;Y-axis limit column *2)
Step5 Required components:
S t e p 5
Use a wrench to turn the eccentric
nut to adjust the tightness of the
guide wheel and the guide rail
To Next Page
