X-axis componentY-axis component
Components required
Step 1

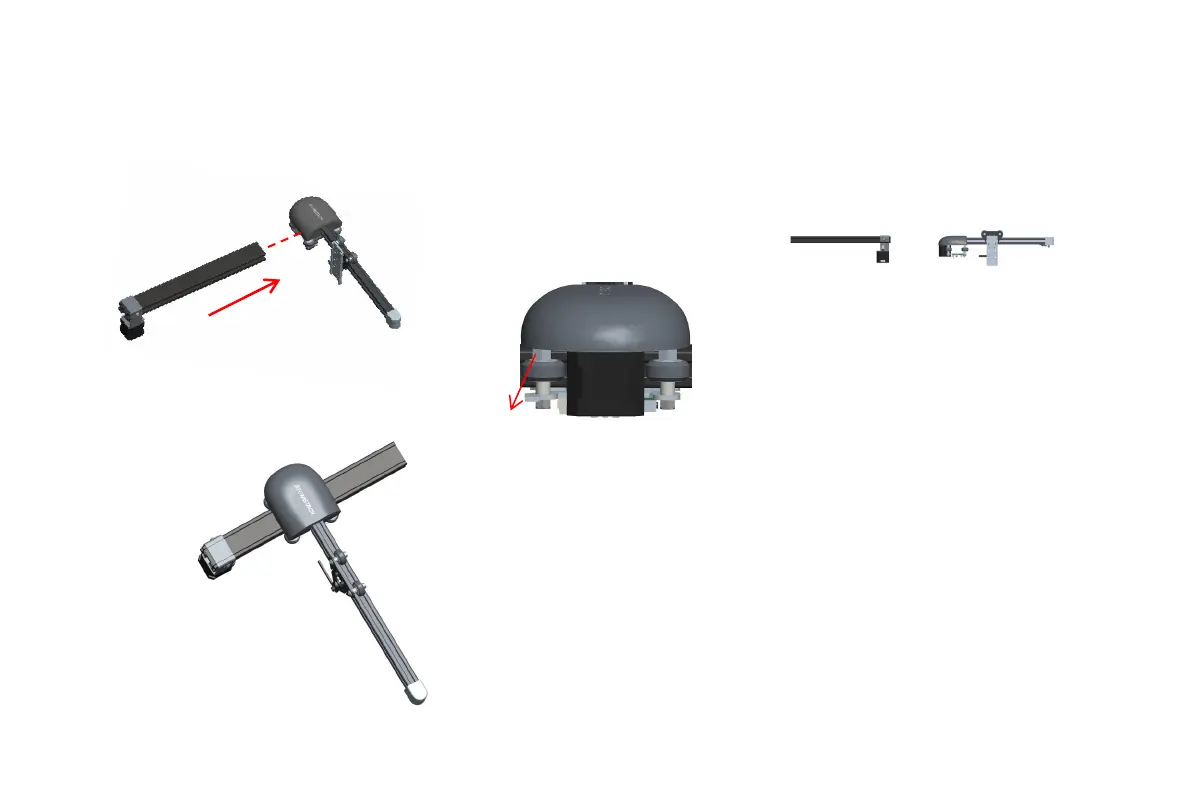

1. As shown in Figure 1, push the X-axis assembly
along the dotted line into the guide rail frame on
the Y-axis assembly. Before pushing the X-axis
assembly into the Y-axis frame, use an open-end
wrench to loosen the eccentric nut to avoid
pushing into the Y-axis machine. The rollers on
the X-axis assembly are too tight when mounting.
2.As shown in Figure 2, after pushing the X-axis
assembly into the Y-axis guide rail, properly
tighten the eccentric nut on the X-axis assembly
with an open-end wrench to prevent the rollers
on the X-axis assembly from loosening.
3. As shown in Figure 3, it is a complete display of
the X/Y axis assembly after assembly.
2
eccentric nut
1
3
