WRONG CONNECTION

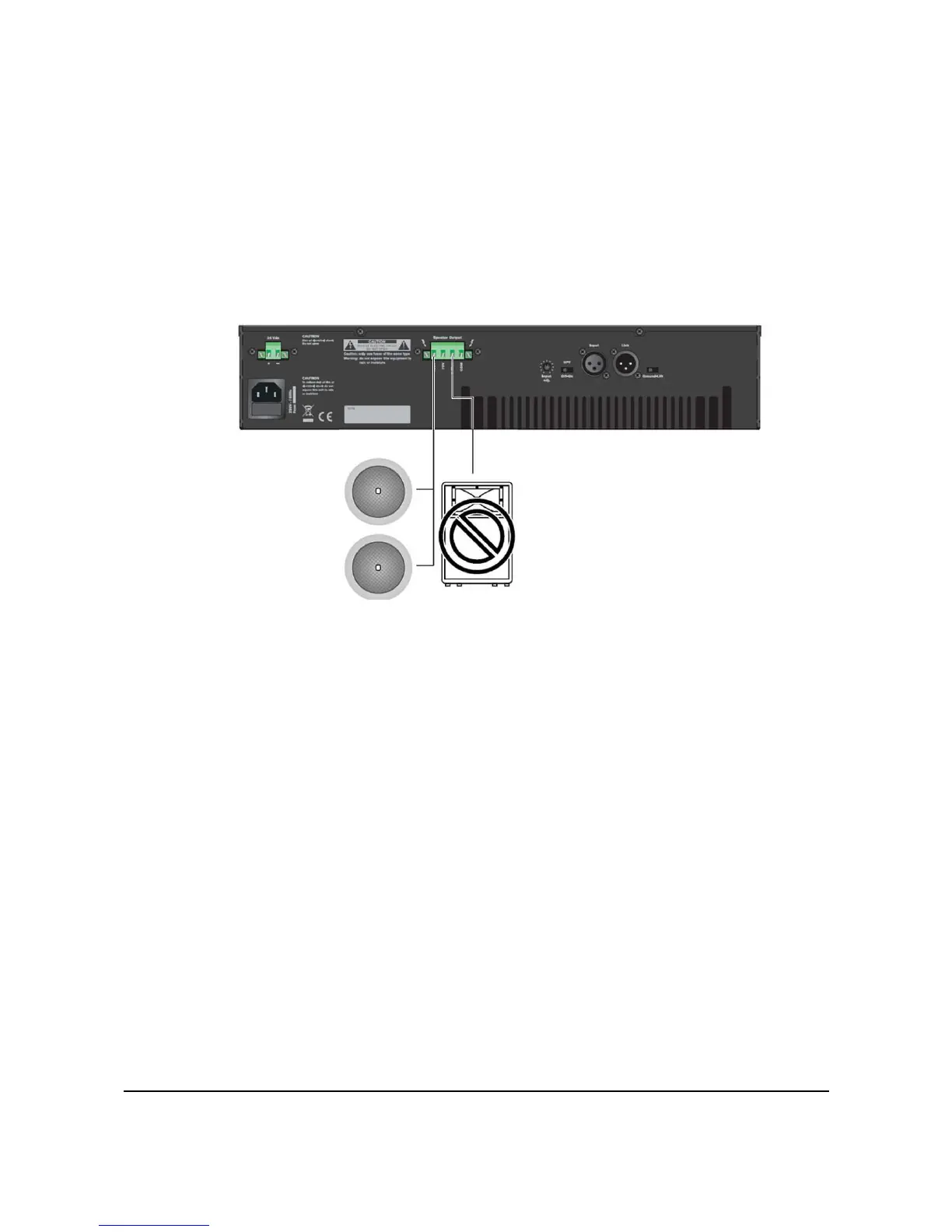

The figure below shows a WRONG connection.
Caution: NEVER use both the low-Z (4Ω) and Hi-Z (70V and 100V) terminals at the same time.
