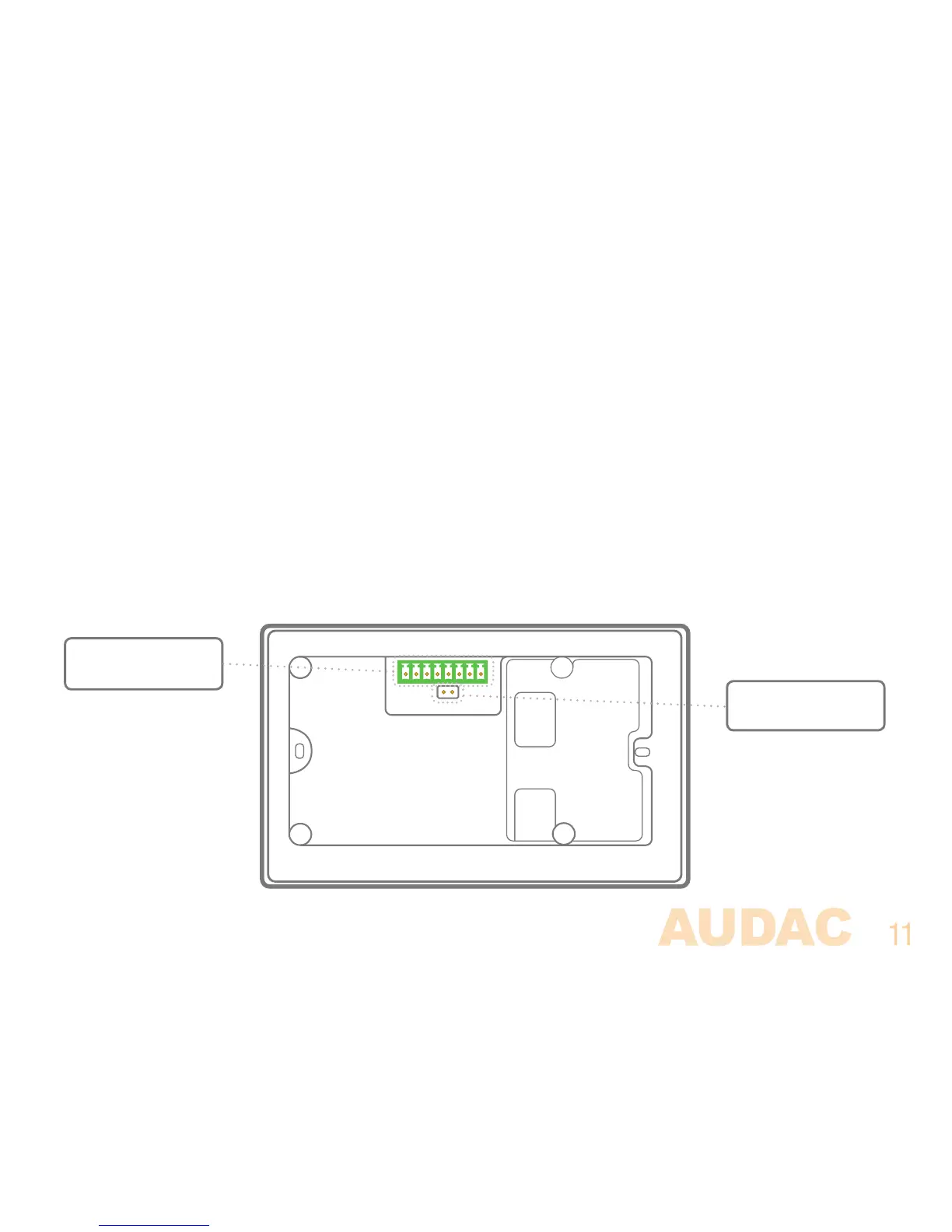

Overview rear panel
The rear panel of the MWX65 contains an 8 pin connector for connecting the wall panel to the matrix
system and a jumper for terminating the RS485 databus. A detailed description of how the MWX65
should be connected, can be found in the chapter 3 of this user manual. The jumper for terminating
the databus should always be placed when only one wall panel is connected to the databus, and is
always provided and placed upon delivery.
8-pin terminal block
connector
RS485 bus
termination jumper
