AUDAC SMA Series User Manual

SMA&SMQ - User manual024
Output setup >> Bridge
General setup
Output setup >> SPKR preset
Pairs of two subsequent channels can be bridged with merged power of
both channels obtaining one single channel with double output power.
The bridged pairs should always be subsequent channels (OUT 1+OUT2

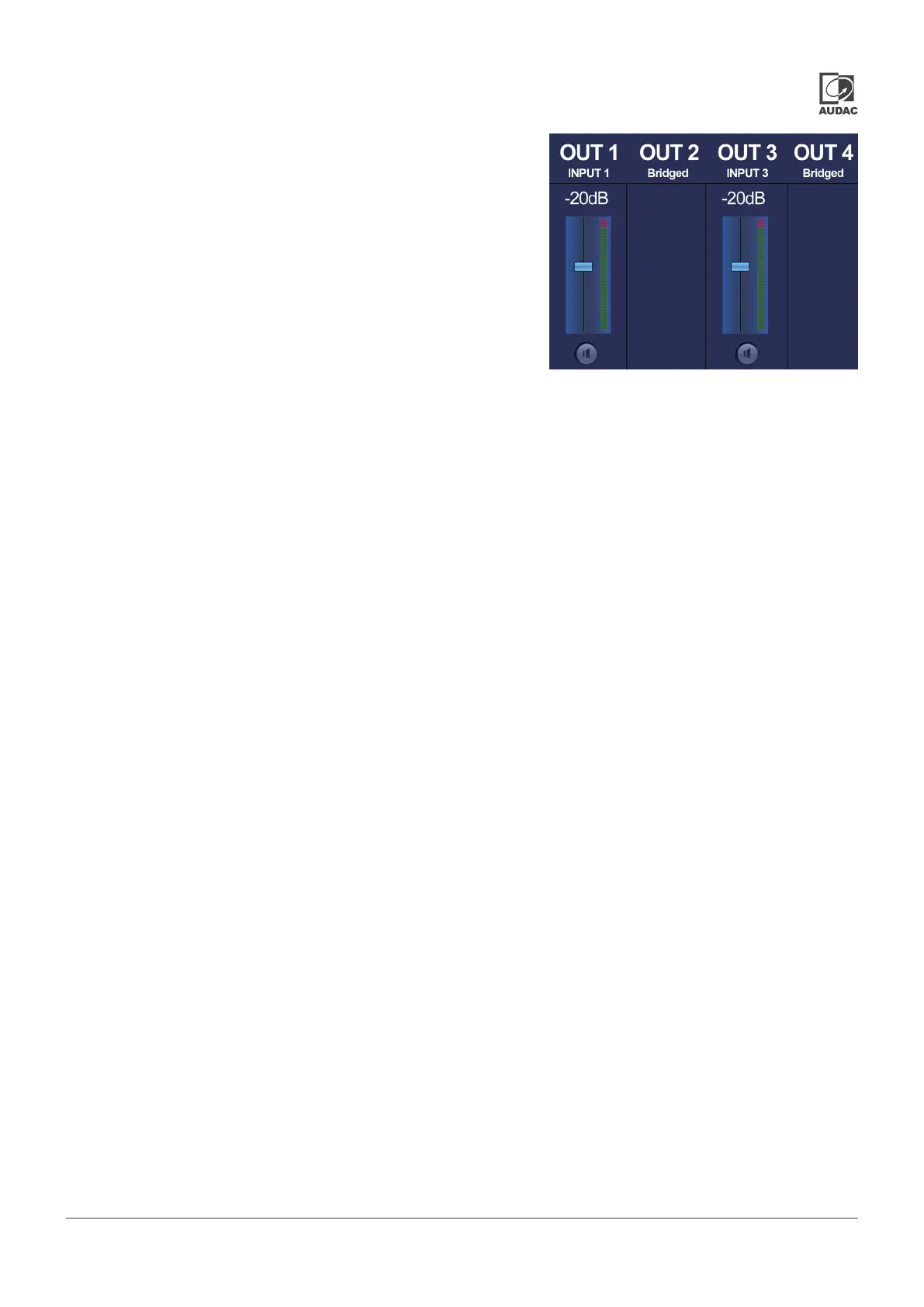

& OUT3+OUT4 for SMQ). When bridging two channels, only one fader
for the bridged channel will be shown in the main screen.
Bridging can be switched ON and OFF, whereby OFF means that all
channels are functioning completely separately and ON means that two
channels are bridged.
For SMQ Ampliers (four channels), three channel congurations can be
made whereby two channels are functioning separately and two channels
are bridged. These congurations are typical for applications where stereo
top speakers are used in combination with a single bass cabinet.
From the settings menu the general setup will lead you to a separate menu where some global conguration settings for the
amplier can be made.
Loudspeaker and total system (set) congurations can be uploaded to the amplier. Every preset is made and optimized for
one specic loudspeaker or system. This window will indicate if any preset is currently loaded. Presets which are meant for
others than the connected loudspeakers may affect the performance and sound quality in negative way, while not providing
optimal protection.
Clearing of the currently loaded presets can be done by selecting this option and pressing clear. Please note that other
congurations for the corresponding channel (Eg. lters, equalizing, … ) which are separately made from the preset will remain
unchanged. When a total system conguration (set solution *.SOL) is currently loaded and cleared, congurations on other
outputs which are part of this preset will be cleared too.
