AUDAC SMA Series User Manual

SMA&SMQ - User manual018
ATTENTION
Do not connect any conventional 100 Volt line transformers directly to the loudspeaker outputs, an integrated decoupling
network shall be provided when used in combination with line transformers.
Wire up the system
The wiring of the system must be done according to the following rules, to guarantee a proper functioning of
the system in all circumstances.
1. Speaker cable for amplied outputs:
Minimum 2 x 1.5 mm²
If distance > 15 m: 2 x 2.5 mm²
2. Music sources and zone outputs:
Must be connected with high-quality audio cable and high-quality
connectors
Three channel conguration (Only SMQ):

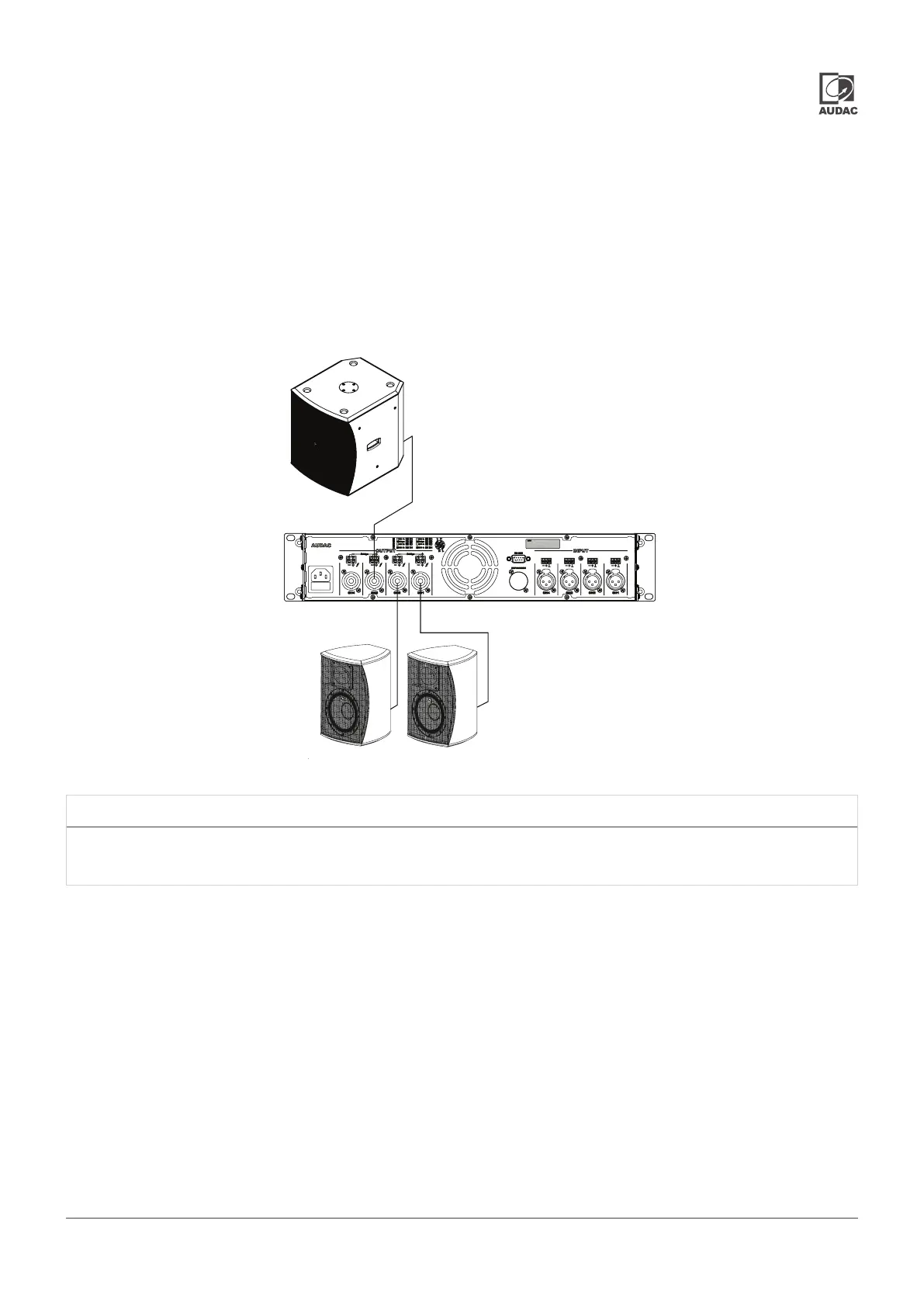

In three channel conguration, two outputs are used in normal operation mode and both other outputs are
switched in bridged mode while feeding the amplier with a stereo input signal. This conguration is commonly
used when two mid/high frequency loudspeakers are supplemented with an additional (mono) bass cabinet for
the low frequencies. The mid/high frequency loudspeakers are connected as described in normal operation
mode, while the bass cabinet is connected as described in bridged mono mode.
Besides the selection for the bridged amplier channel, further advanced settings such as ltering is usually
congured for this kind of setups. All these settings can be congured by the user interface which is controllable
using the front panel controls.
Channel 3+4 Bridged
Channel 1 Channel 2
