W a rm a nd cold 99
Air outlets
Air distribution determines the air flow to the individual vents .

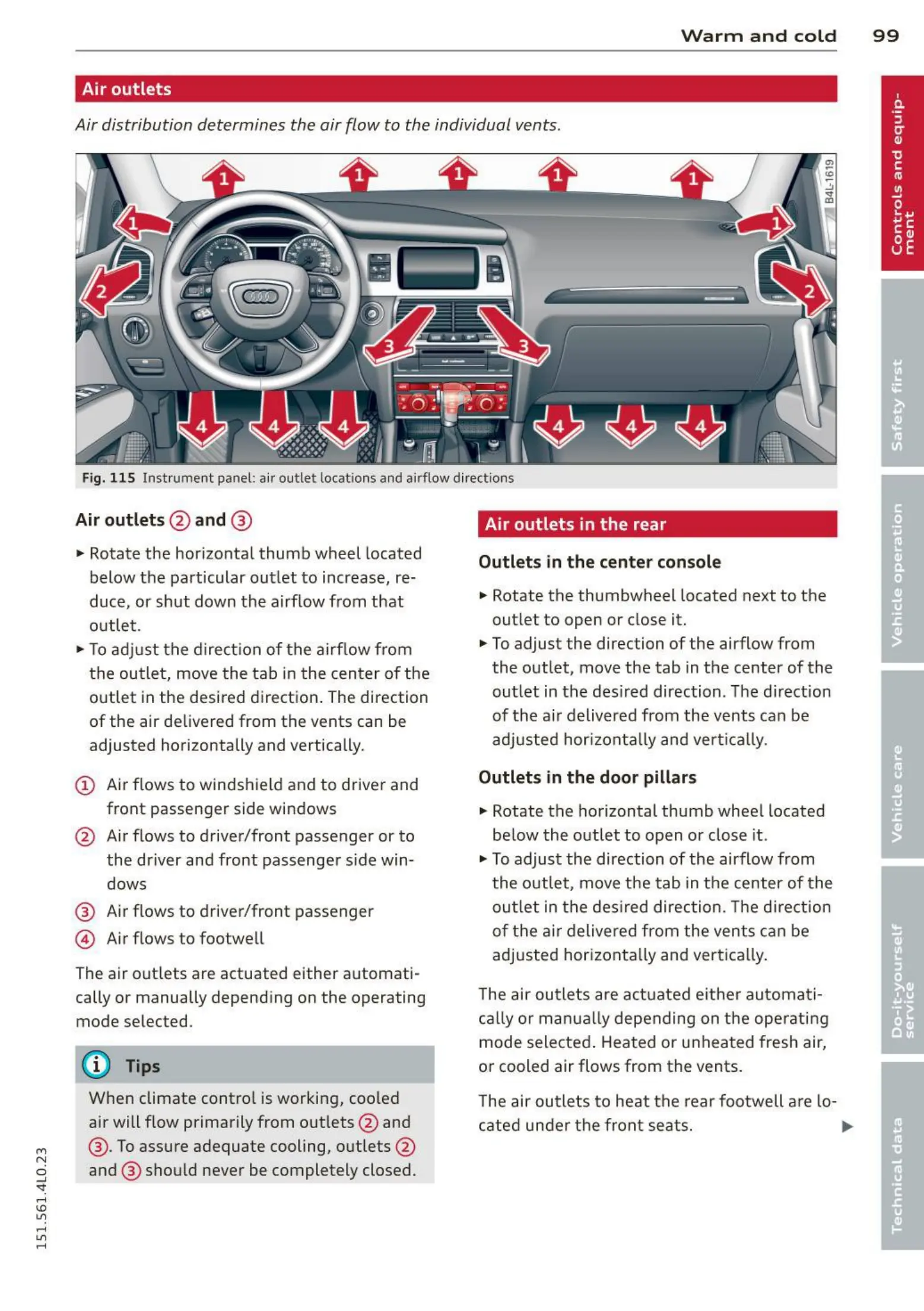

Fig. 11 5 Inst rument pane l: a ir outle t locati on s a nd airflow direction s
Air out lets @ and @
~
Rotate the hor izonta l thumb wheel located
below the particular outlet to increase, re-
duce , or shut down the airflow from that
outlet.
~
To adj ust the direct ion of the airflow from
the outlet, move the tab in the center of the
outlet in the desired direct ion . The direction
of the air de livered from the vents can be
adjusted horizontally and vertically .
(D Air flows to windshield and to driver and
front passenger side windows
@ Air flows to driver/front passenger or to
the driver and front passenger s ide win-
dows
@ Air flows to driver/front passenger
© Air flow s t o footwell
The air out lets are actuated either automati -
cally or manually depend ing on the operating
mode selected.
@ Tips
When climate contro l is working, cooled
air will flow primarily from outlets @ and
@ . To assure adequate cooling, outlets @
and @ should never be completely closed.
Air outlets in the rear
Outlets in the cent er console
~
Rotate the thumbwheel located next to the
outlet to open or close it.
~
To adj ust t he direct ion of the airflow from
the outlet , move the tab in the center of the
outlet in the des ired direction . The direction
of the air delivered from the vents can be
adjusted hor izonta lly and vertically.
Outlets in the door pillars
~
Rotate the horizontal thumb whee l located
be low the outlet to open or close it .
~
To adjust the direction of the airflow from
the outlet, move the tab in the center of the
out let in the des ired direction. The direct ion
of the air delivered from the vents ca n be
adjusted hor izonta lly and vert ically.
The air outlets are actuated e ither automati-
cally or ma nua lly depending on the operat ing
mode selected . Heated or unheated fresh air,
or cooled air flows from the vents.
The air outlets to heat the rear footwell are lo-
cated under t he fron t seats. ..,.
