Page 16

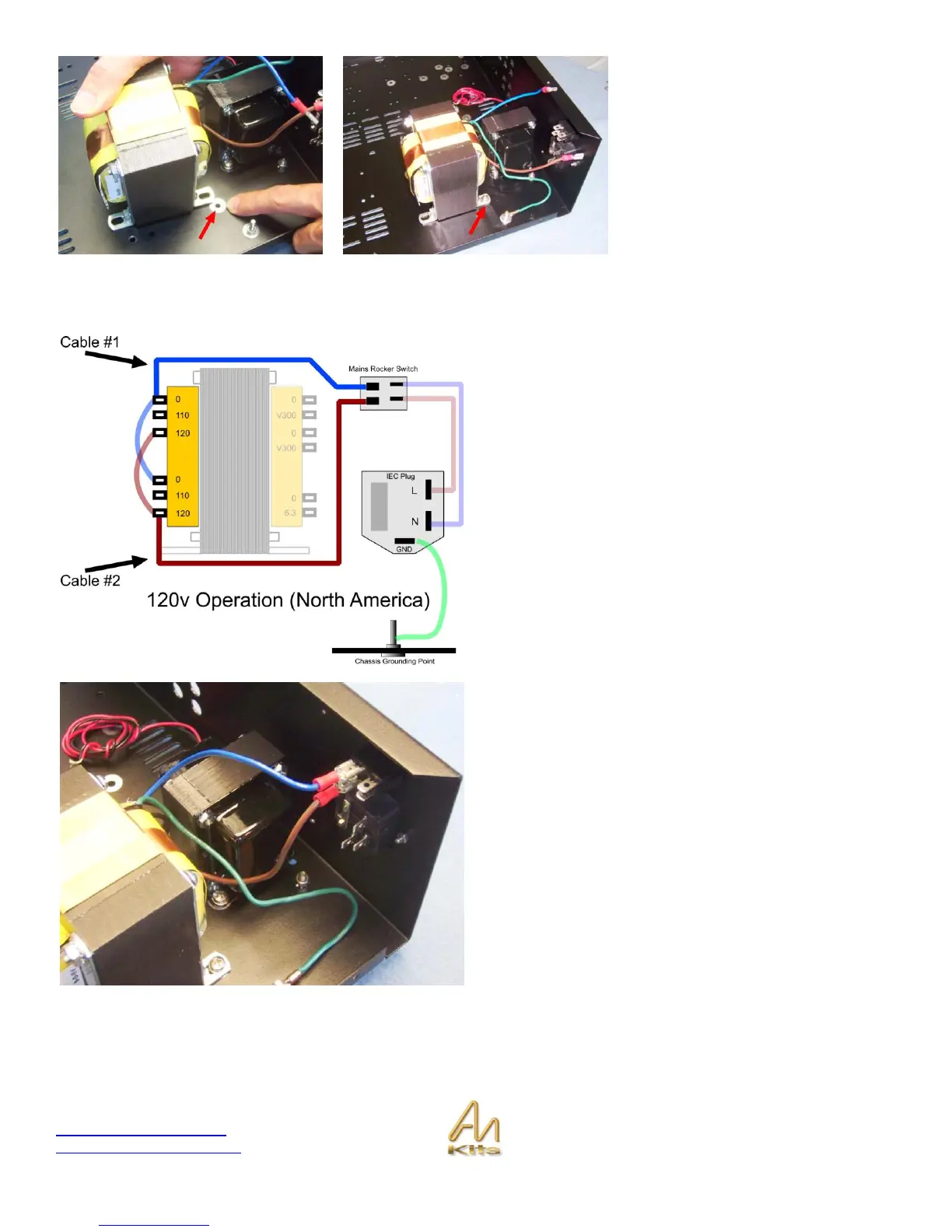

When installing the Mains transformer
be sure to line it up with the unpainted
hole in order to ensure a ground
connection.
Secure the transformer at all four
corners.
Wiring up the Mains
Once the transformer is installed you can connect up the
Blue and Brown Crimped wires from the Mains transformer
directly to the Rocker Switch.
Also connect the green earth wire from the mains
transformer to the GND lug as shown opposite.
