Section 8: Digital Board Power Supply Connections

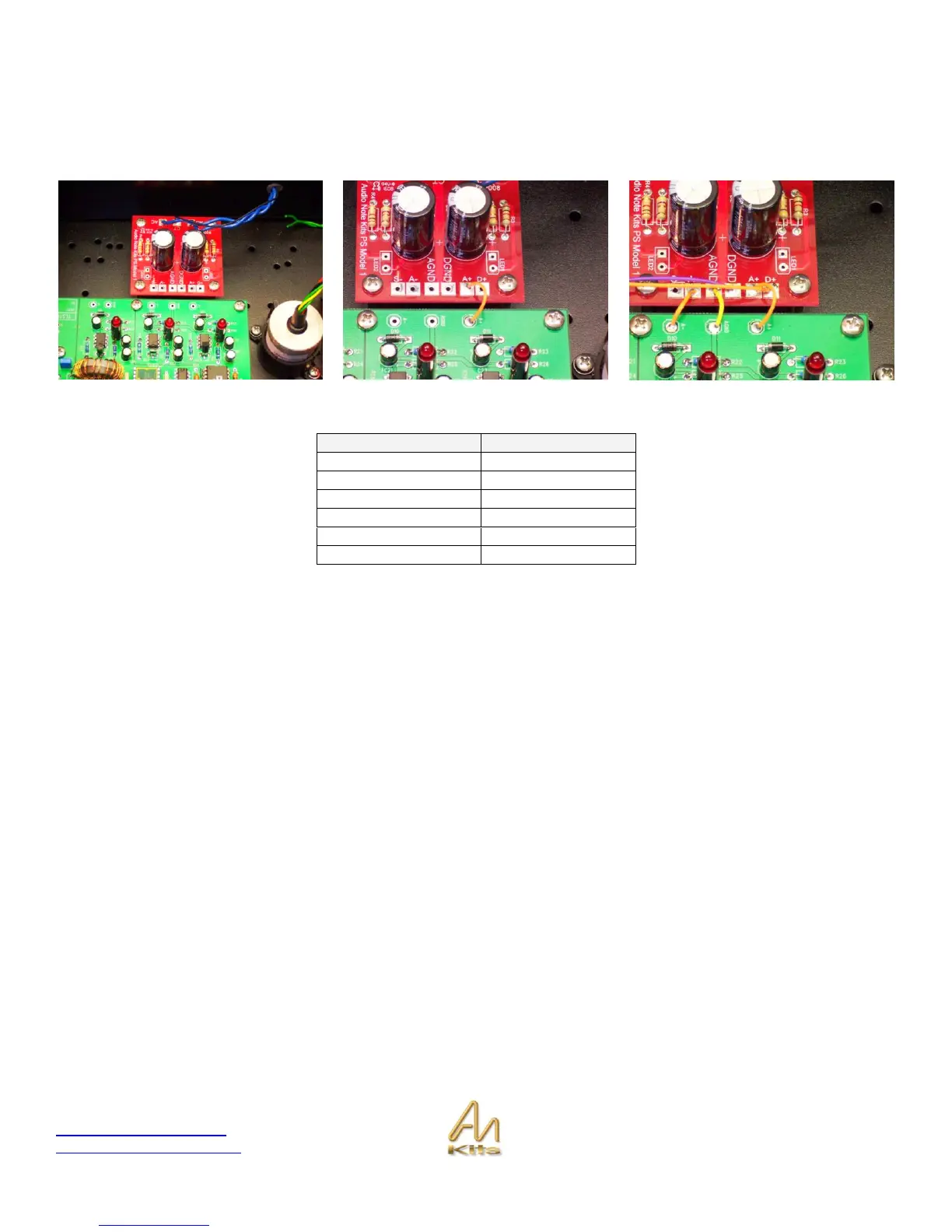

In this section we will make the connections between the digital Power supply (small red board) and the Digital DAC board
(green board). This is quite straightforward and shouldn‟t present any problems.
Please refer to the following wiring table:
Power Supply Pad
Digital Board Pad
AGND
AGND
A+
A+
A-
A-
DGND
DGND
D+
D+
S- (unused)
Using the colored PTFE wire provided you can make connections between the named connections: A+, A-, AGND, D+,
and DGND - the S- is not used (it is a spare output).
