Wiring the I/V Transformers
All you need now to do is connect the Red lead from the Left I/V transformer to the LSIG and the Black lead from the left
I/V transformer to the LGND on the Digital Board.
Repeat for the Right I/V transformer.

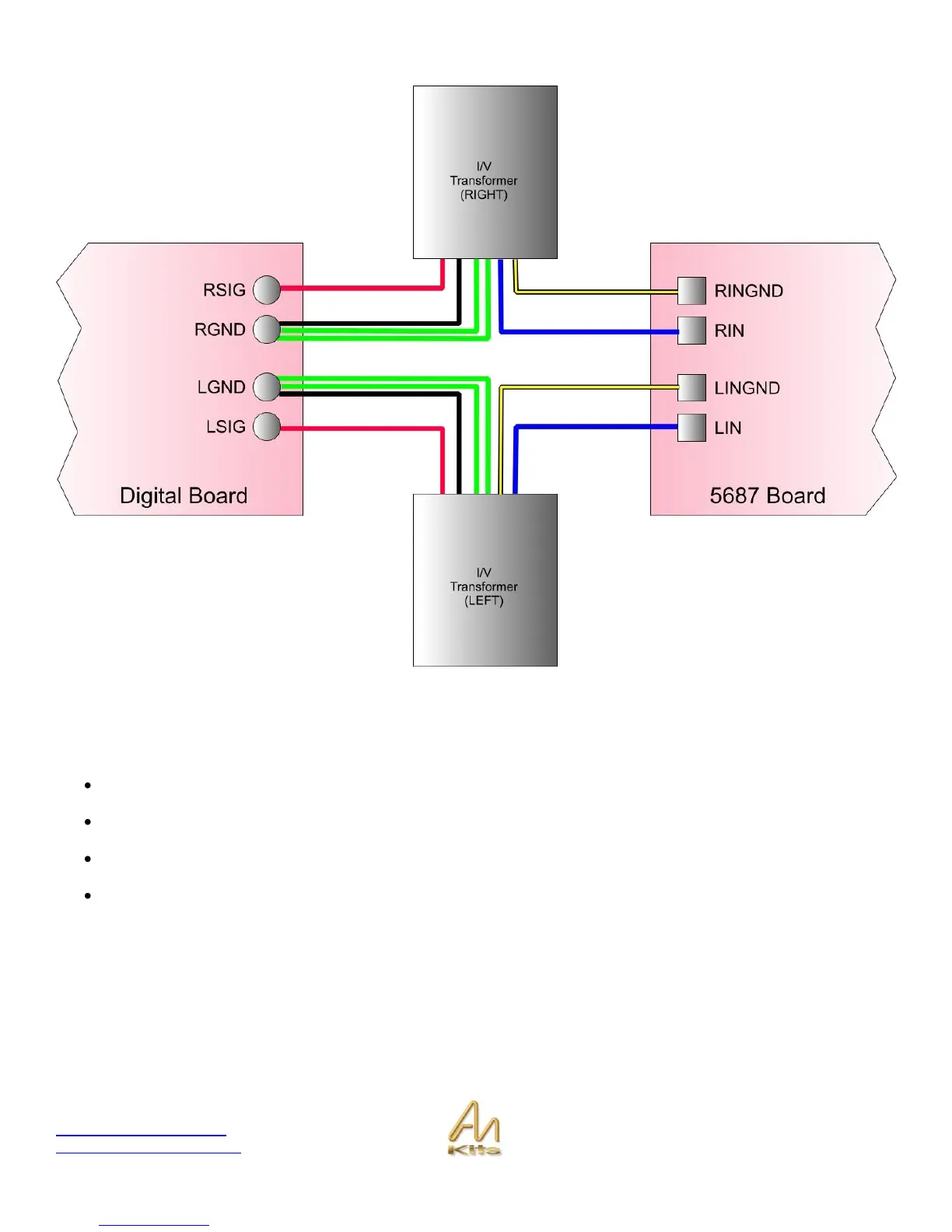

RSIG RED (right I/V)
RGND BLK (right I/V)
LSIG RED (left IV)
LGND BLK (left IV)
You will also want to connect two green wires from each I/V transformer to the Digital Ground for each channel.
Now that we have installed correctly the interface between the IV‟s and the digital Board side we now need to do a similar
thing on the 5687 analog board.
Solder the Blue wires to left and right channel inputs (LIN / RIN). Then solder the corresponding Yellow wires to the input
Ground LINGND (Left Input Ground), RINGND (Right Input Ground).
