Page 51
Standard Diode Installation

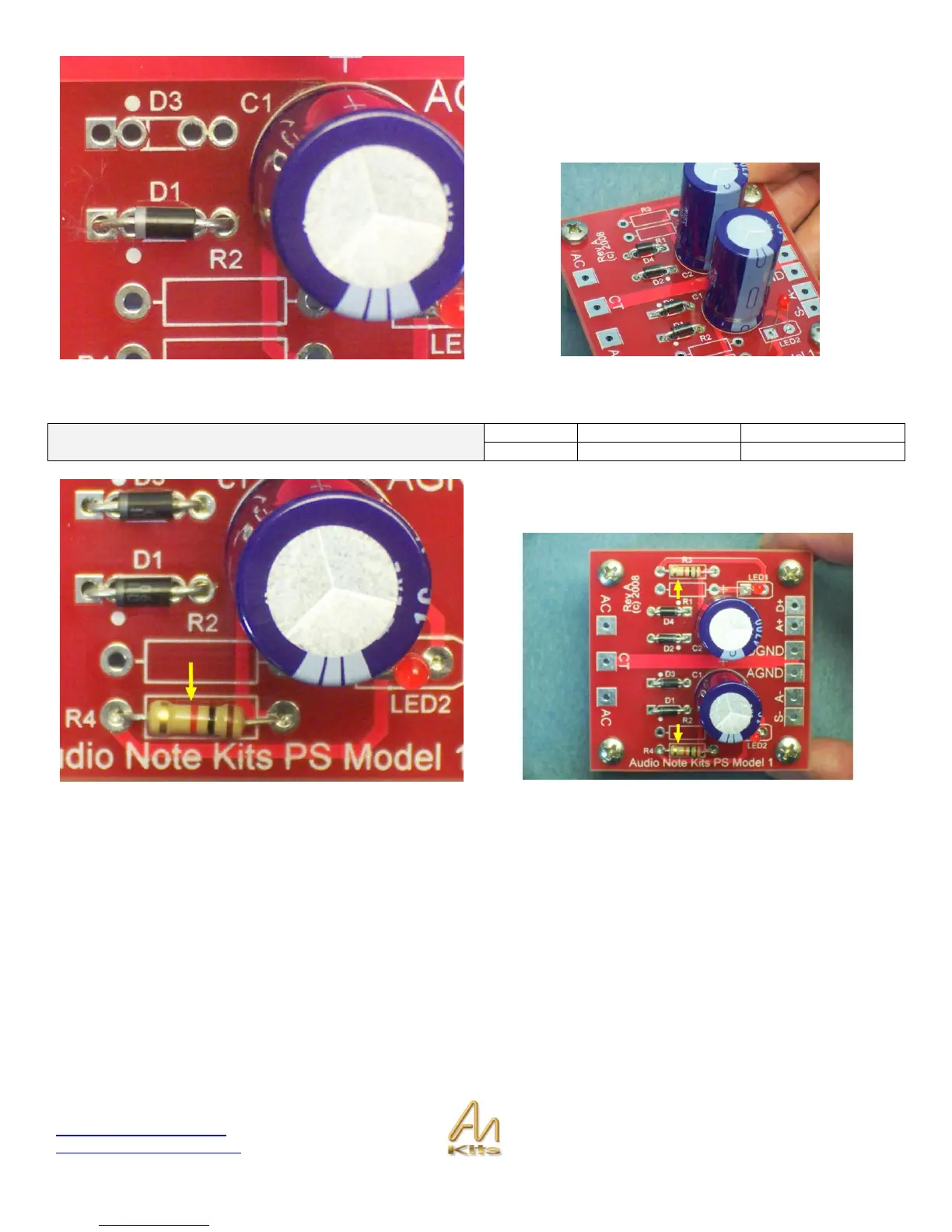

Opposite is a picture of the standard diode inserted – you
will want to line up the gray stripe on the diode that denotes
the positive side and position it where the White Dot is.
Installing the Resistors
Resistors
2
1K0
R3, R4
2
4R7
R1, R2
Install all four resistors into their correct positions. These
pictures only show R3 and R4.
