Section 10: Installing I/V transformers
In this section we will install the IV transformers into the DAC.
Secure the IV transformers in their clamps with their leads facing upward and so they are flush with the bottom of the
clamp where the fixing holes are situated. Then fix the clamps into position in the chassis as shown in the following
picture.

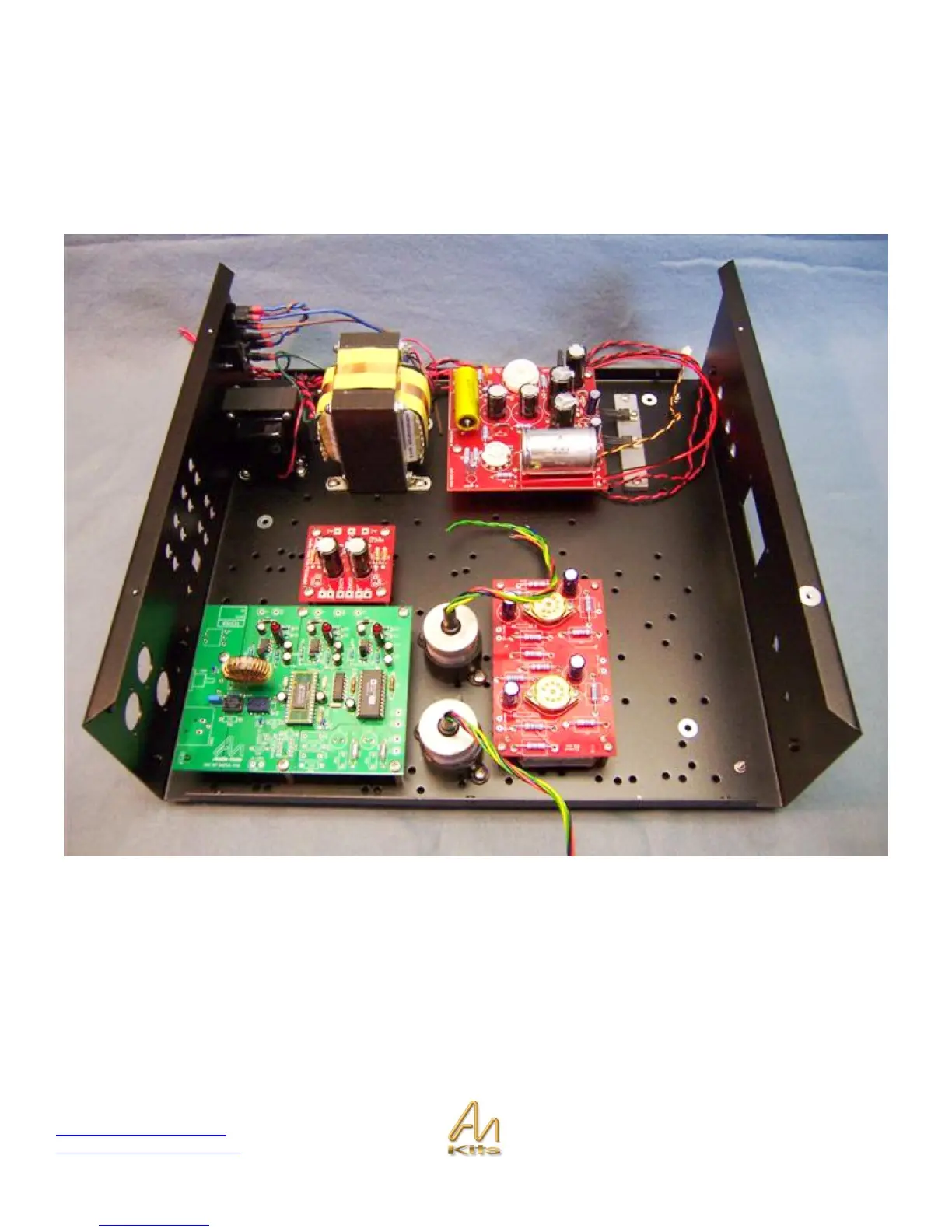

Above, you can see the I/V transformers installed in the chassis in between the analog output board and the digital board.
