DC Output 1 and 2 On/Off
Either of the DC outputs (front panel double banana jacks) may be
turned on and off individually.
DC Output 1 and 2 Value
Either DC output may be independently set to any voltage in the
range ±10.5 Vdc. A new value may be entered or the existing value
may be edited from the keyboard, followed by the
E key.
Operation Panel
DCX-127 Multifunction Module User’s Guide Page 21

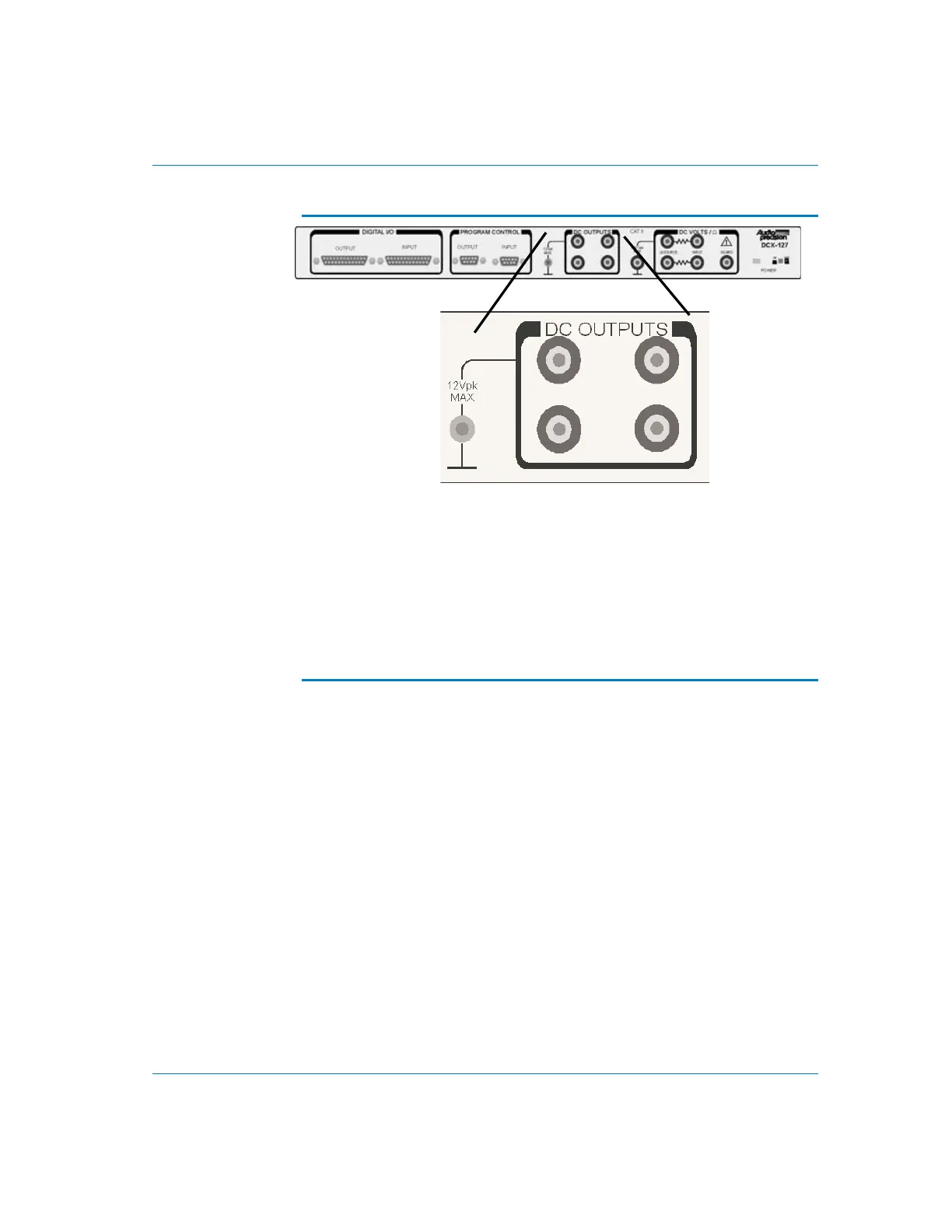

Figure 14. Connectors for DC Outputs
