Fuse Information
The connector/fuse block/voltage selector assembly allows two
fusing arrangements: North American (see Figure 6) and European
(see Figure ). The North American fusing arrangement uses a single
type 3AG (0.25 x 1.25 in.) SB (“slow blow”) fuse; the European fusing
arrangement uses two5x20mmIEC-approved type T fuses. Both
types should be rated 250 V. Fuse current ratings are 200 mA for 100 –
120 V inputs, or 100 mA for 230 – 240 V inputs. Confirm this
information on the label on rear panel.
Installation Fuse Information
DCX-127 Multifunction Module User’s Guide Page 13
Fuse
Fuse block
Cover
Jumper bar

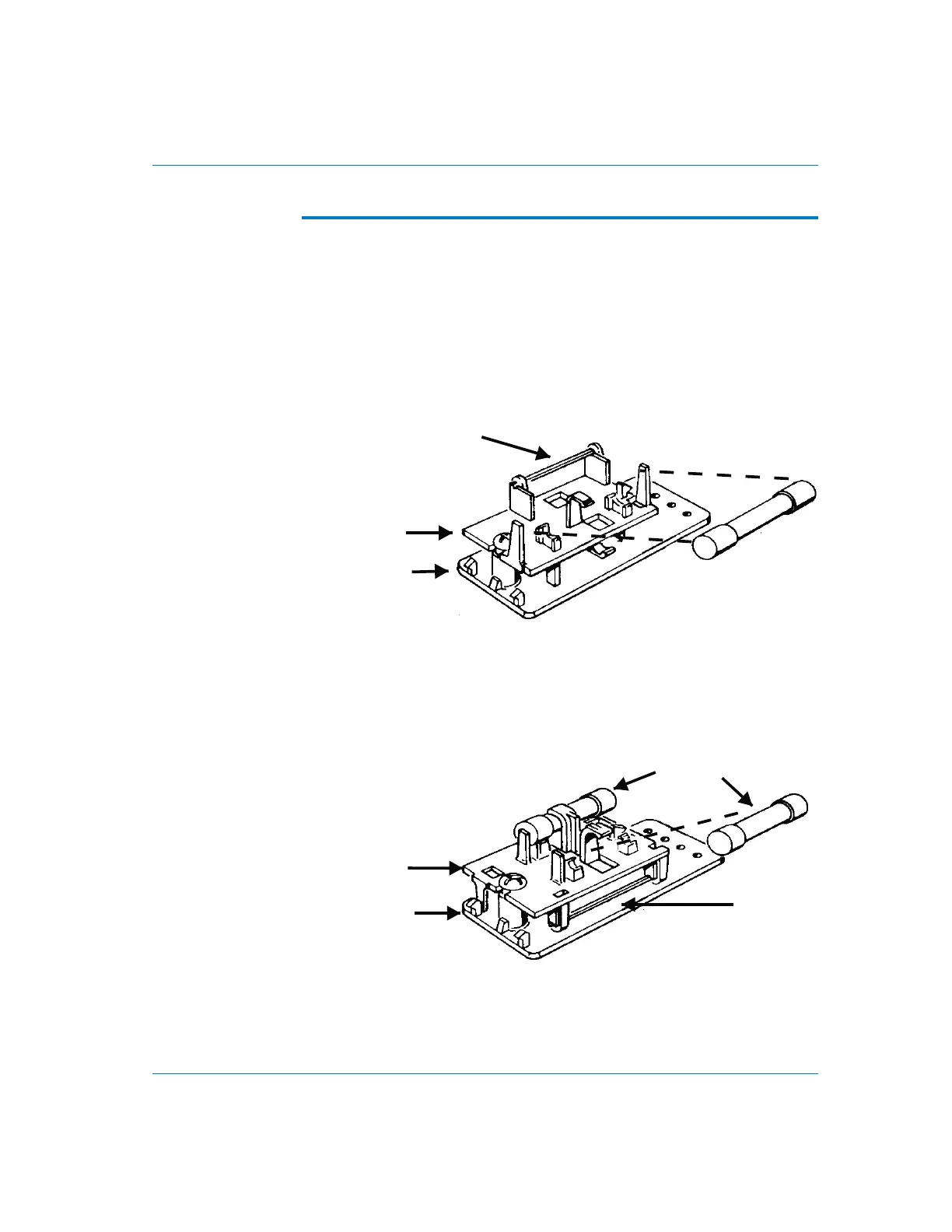

Figure 6. North American fusing arrangement
Fuses
Fuse block
Cover
Jumper bar
Figure 7 . European fusing arrangement
