Auxiliary Outputs
Panel Operation
Page 26 DCX-127 Multifunction Module User’s Guide
51
96

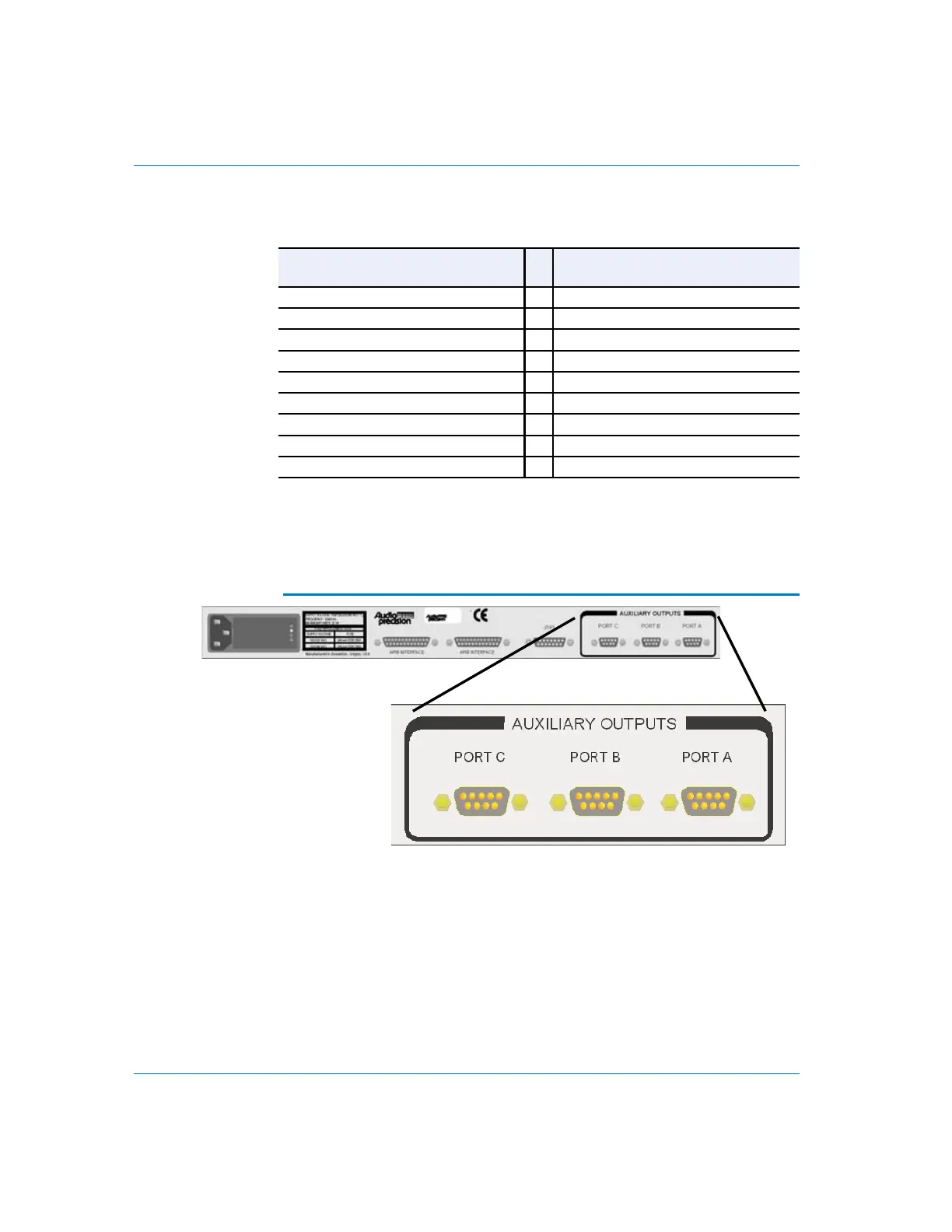

Figure 17. Connectors for Auxiliary Outputs, showing pin numbering
Pin
Number
Program Control
Output
Pin
Number
Program Control
Input
1 Delayed Sweep Rate 1 Bit 7 (MSB)
2 Reset 2 Bit 6
3 Data Acquired 3 Bit 5
4 Trigger 4 Bit 4
5 Undefined 5 Bit 3
6 Sweep Gate 6 Bit 2
7 Channel A/B 7 Bit 1
8 Ground 8 Bit 0 (LSB)
9 Ground 9 Ground
Table 3. Program Control Output and Input connectors pin assignments
