Disengages the motor/platter and returns tone arm to rest.
3. TONE ARM LIFT BUTTON
Lifts and lowers tone arm for manual selection.
4. PLATTER SPEED BUTTON
Select 33 RPM (button in high position) or 45 RPM
(button in low position) platter speed.
5. SIZE SELECTOR
Select the size of the record: 12″ or 7″.
6. PLATTER
Aluminum platter mounts directly to center spindle/
motor shaft.
7. CENTER SPINDLE
Precision-machined platter-mount portion of the motor shaft.
8. 45-RPM ADAPTER (Shown in receptacle)
Adapts 7″ records with large center holes to fit center spindle.
9. DUST COVER HINGE HOLDERS
Attachment points for removable hinged dust cover.
10. DUST COVER
11. TONE ARM/HEADSHELL ASSEMBLY
Tone arm is permanently attached to the headshell assembly.
12. STYLUS ASSEMBLY
13. STYLUS (“NEEDLE”)
14. STYLUS GUARD
15. PRE-AMP SELECTOR SWITCH (PHONO/LINE)
(On back of turntable) Use PHONO setting when you connect to the phono input on your home stereo. Use the LINE level when you
connect to CD/TAPE/AUX inputs of your home stereo.
Initial Setup
Assembling the Turntable
The AT-LP60 requires some assembly before first use.
IMPORTANT: Do not connect the AC power cord until assembly is complete.

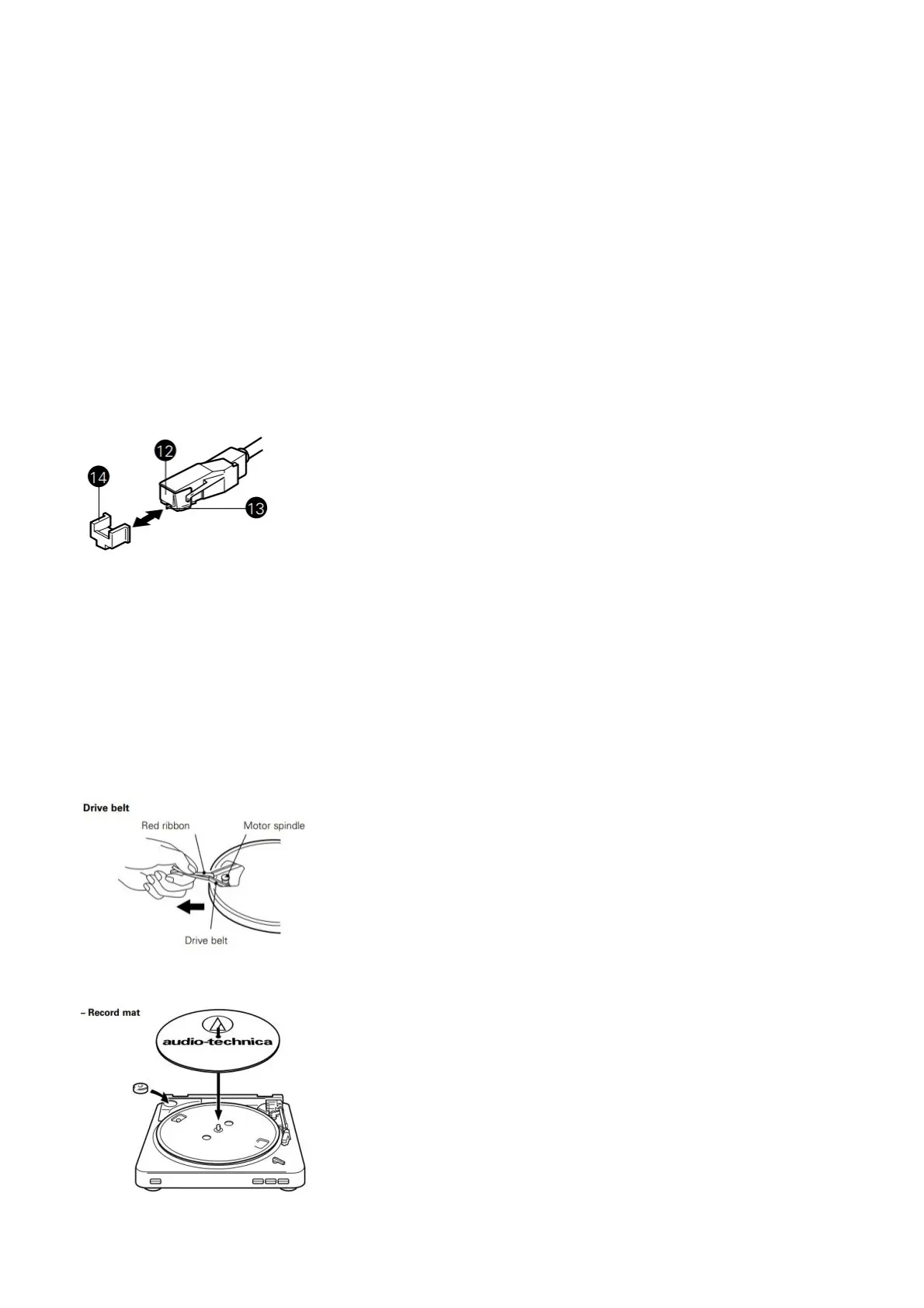

1. Carefully place the turntable platter on the center spindle, making certain the platter is fully seated on the spindle.
2. While holding both ends of the red tape ribbon on the
turntable belt, carefully pull the belt over the motor pulley. (If the belt drops off, remove the turntable platter and put the belt back on it,)
3. Once the belt is seated in the pulley’s groove, carefully remove the ribbon. Make certain the belt is not twisted.
4. Place the turntable mat on top of the turntable platter.
5. If desired, the hinged dust cover may be removed. Hold both sides of the dust cover and pull upward gently and evenly to detach the
cover from the turntable . Keep the cover in a safe, clean place.
To Next Page
