Connecting Scarlett Solo to loudspeakers
The ¼” jack outputs on the rear panel can be used to connect monitoring speakers. Self-powered
monitors incorporate internal amplifiers with a volume control, and may be connected directly.
Passive loudspeakers will require a separate stereo amplifier; in this case, the rear panel outputs
should be connected to the amplifier’s inputs.
RIGHT LEFT
RIGHT LEFT
The line outputs are 3-pole (TRS) ¼” (6.35 mm) jack sockets, and are electronically balanced. Typical
consumer (Hi-Fi) amplifiers and small powered monitors will have unbalanced inputs, either on
phono (RCA) sockets, or via a 3.5 mm 3-pole jack plug intended for direct connection to a computer.
In either case, use a suitable connecting cable with jack plugs at one end.

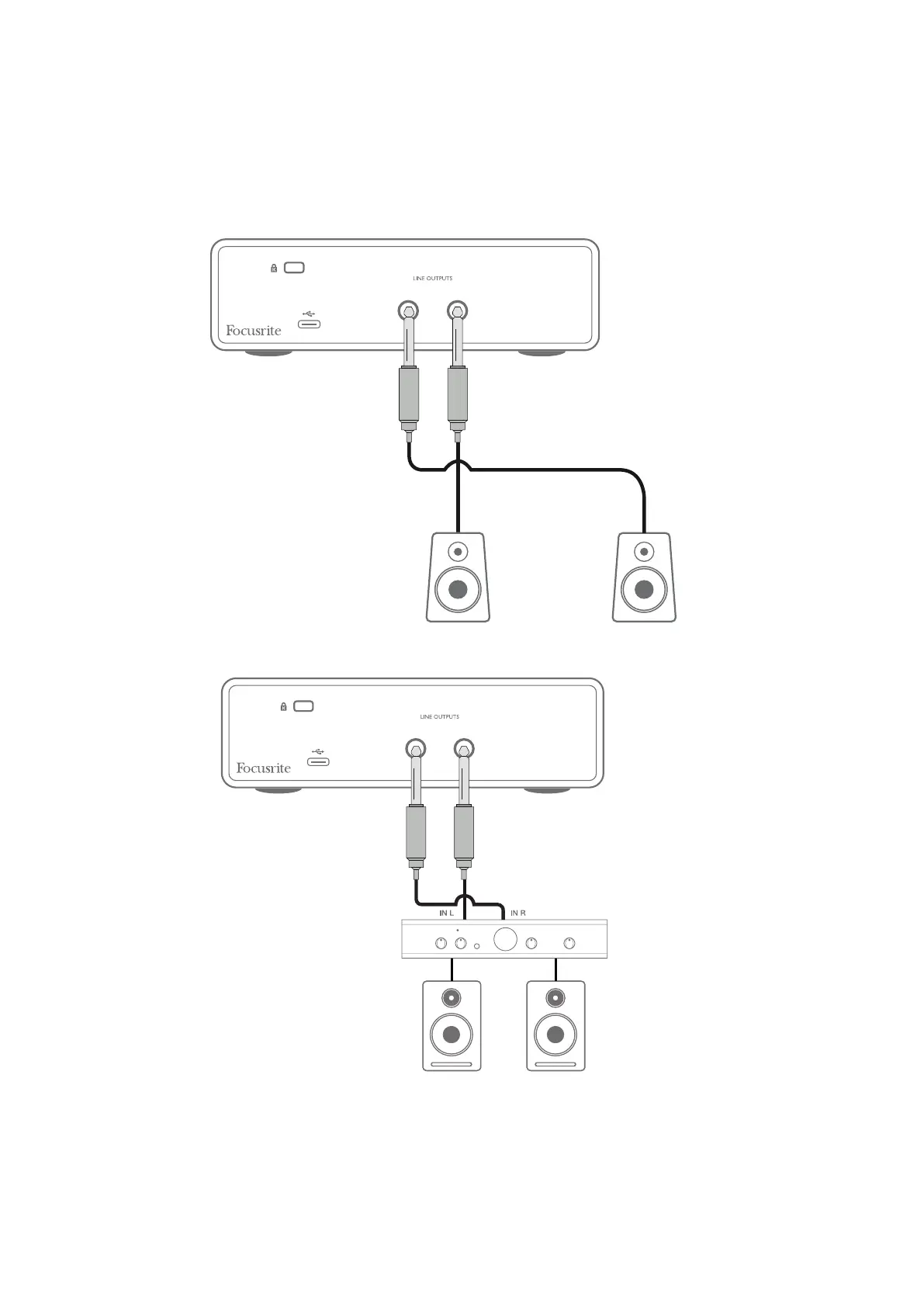

Connecting active speakers
Connecting passive speakers
