CHAPTER4 Mounting the Device

Mediant 800 Gateway & E-SBC | Hardware Installation Manual

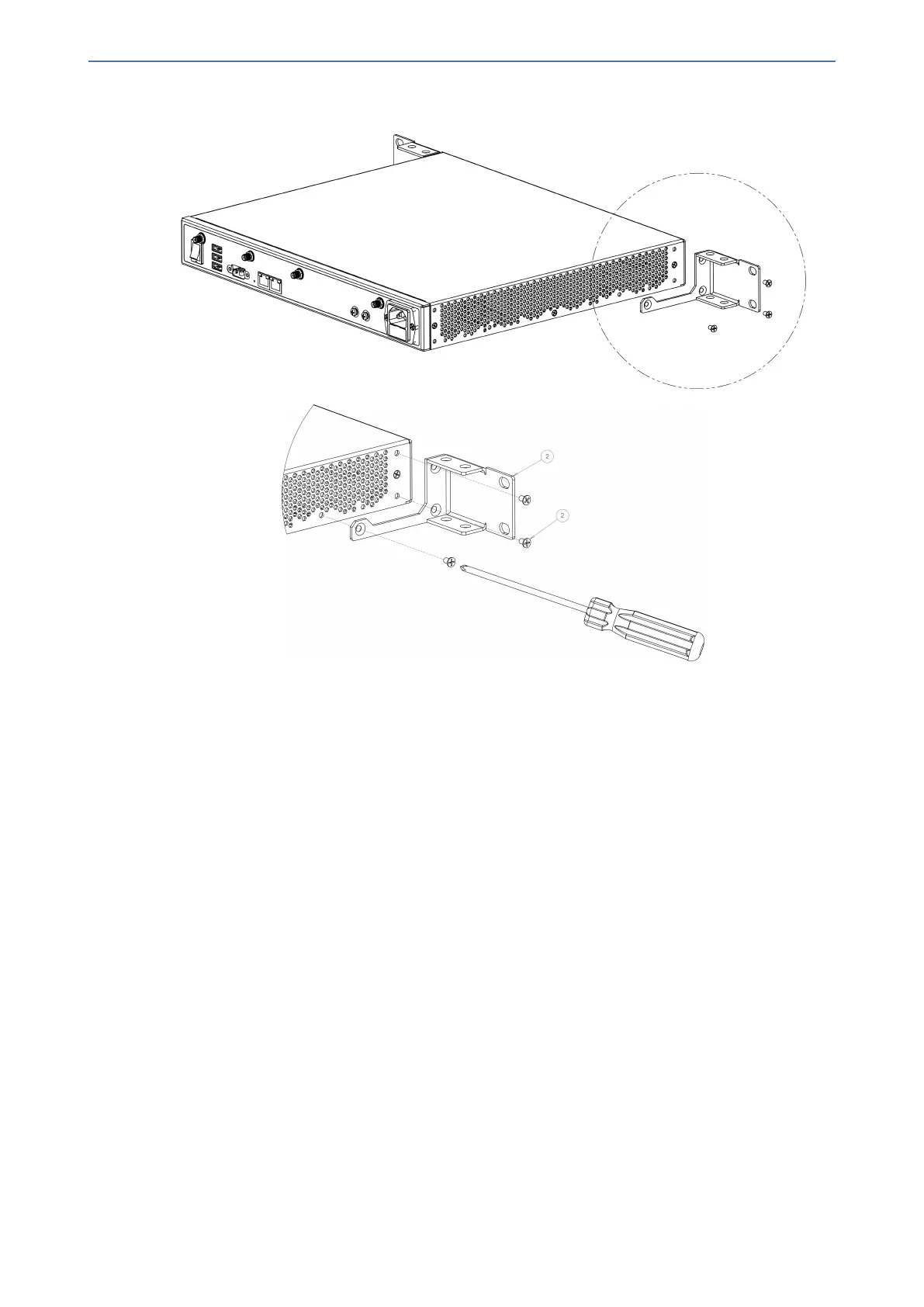

Figure 4-2: Attaching the Mounting Brackets to Chassis

2. Mark the drilling locations of the four mounting holes on the wall. You can use the chassis with

the attached wall-mounting brackets as a template. For this two people are needed, one to hold

the chassis and one to mark the holes. Hold the chassis so that the mounting brackets are

flush against the wall. Make sure that the orientation of the chassis is correct –front panel

facing up (toward the ceiling). Make sure that the chassis is horizontal with the floor (you can

use a level). With a pencil, stencil the mounting brackets' keyholes on the wall.

3. Remove the chassis and place it on a horizontal surface.

4. Drill holes in the wall where you marked the keyholes.

5. Insert wall anchors (not supplied) of appropriate size into each drilled hole.

6. With one person holding the chassis flush against the wall with the mounting brackets'

keyholes aligned with the wall anchors, Philips pan-head wood screws of 20-mm length (not

supplied) to secure the brackets to the wall.

- 11 -
