AudioCodes Mediant 800 Series User Manual

CHAPTER5 Cabling the Device
Mediant 800 Gateway & E-SBC | Hardware Installation Manual
b. Connect an analog PSTN line to Port B.

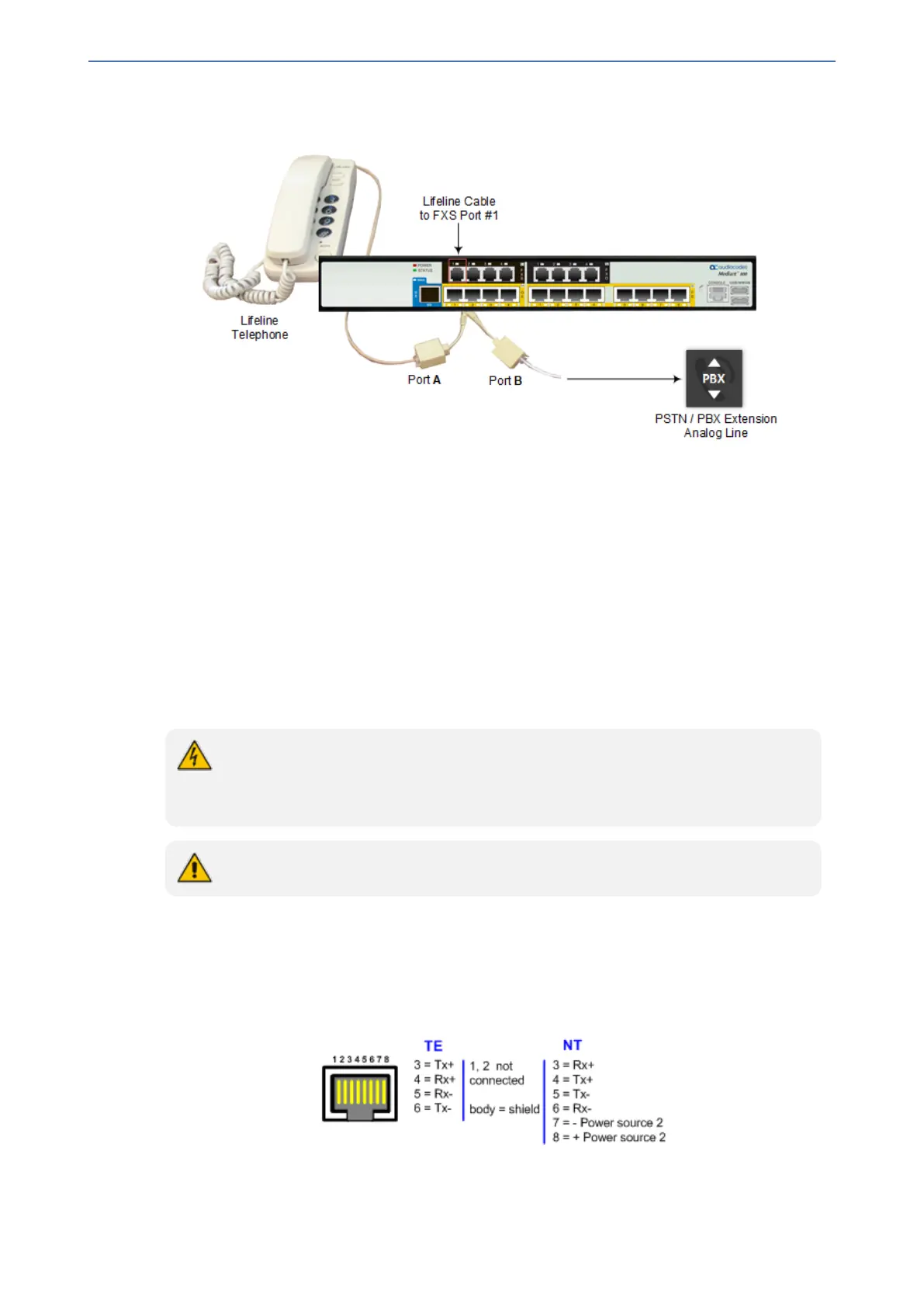

Figure 5-9: Cabling FXS Lifeline
ISDN BRI Interfaces
This section describes how to cable the BRI interfaces.
Connecting to BRI Lines
The device provides up to four BRI S/T ports. These ports connect to ISDN terminal equipment
such as ISDN telephones. Each BRI port can be configured either as termination equipment/user
side (TE) or network termination/network side (NT). Up to eight terminal equipment (TE) devices
can be connected per BRI S/T port, using an ISDN S-bus that provides eight ISDN ports. When
configured as NT, the BRI port drives a nominal voltage of 38 V with limited current supply of up to
100 mA.
● BRI port cabling must be routed only indoors and must not exit the building.
● To protect against electrical shock and fire, use a 26 AWG min wire to connect the
BRI ports to the PSTN.
BRI interfaces are a separate orderable item.
Cable specifications:
■ Cable: 26 AWG min.
■ Connector Type: RJ-45
■ Connector Pinouts:
Figure 5-10: RJ-45 Connector Pinouts for BRI Ports
- 21 -

AudioCodes Mediant 800 Series Specifications

General

VoIP Protocols	SIP, H.323
Humidity	10% to 90% non-condensing
Interfaces	FXS, FXO, BRI, E1/T1
Network Interfaces	10/100/1000 Ethernet
Telephony Interfaces	FXS, FXO, BRI, E1/T1
Management	Web GUI, CLI, SNMP
Security	TLS, SRTP, HTTPS, SSH, IPsec
Power Supply	AC 100-240V, 50/60Hz
Type	VoIP Gateway
Redundancy	Optional
Fax Support	T.38, G.711 pass-through
Codecs	G.711, G.726, G.729, G.723
Ethernet Interfaces	Up to 4 x 10/100/1000Base-T
Dimensions	1U
Operating Temperature	0°C to 40°C
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
