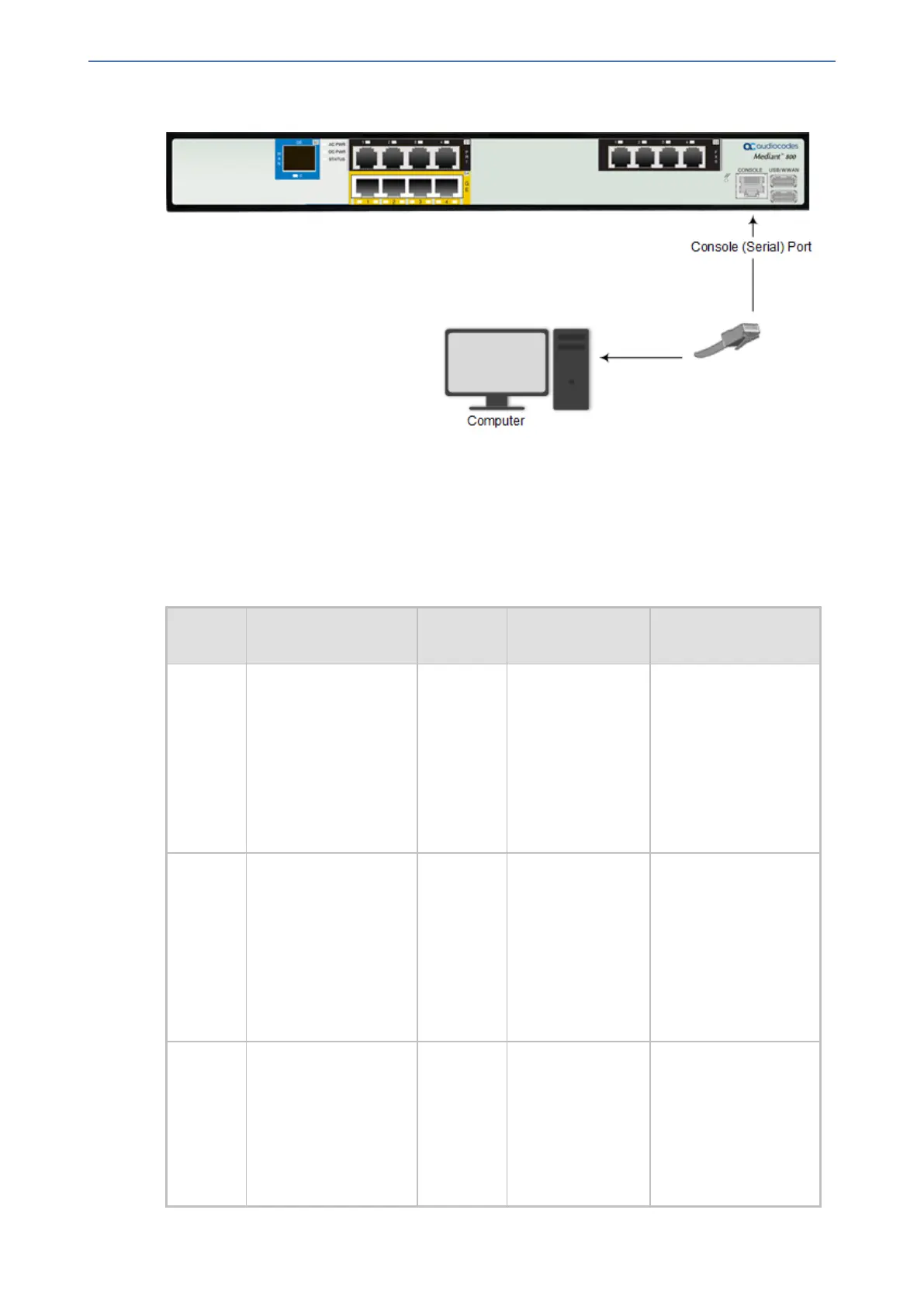

Figure 5-17: Cabling Serial Interface
Connecting the OSN Server
The device may be ordered with an embedded, Open Network Solution (OSN) platform for hosting
third-party services such as an IP PBX. The OSN modules are located on the device's rear panel.
The following table lists available, orderable OSN server platforms:
Table 5-3: OSN Server Platforms
OSN
Platform
CPU Memory Storage Interfaces
OSN2 2
nd
Generation Intel
Core Celeron
1.6 GHz
2 or 4 GB HDD 500 GB ■ Two external
Gigabit Ethernet
■ Internal Gigabit
Ethernet
■ Three USB 2.0 via
Connection
Module
■ VGA
OSN4 3
rd
Generation Intel
Core i7 Quad Core
16 GB
ECC
DDR3
HDD (500 GB) or
SSD (240 GB)
■ Two external
Gigabit Ethernet
■ Internal Gigabit
Ethernet
■ Three USB 2.0 via
Connection
Module
■ VGA
OSN5 Intel Atom N2800 1.86
GHz Dual Core
2G HDD 500 GB ■ One external
Gigabit Ethernet
■ Internal Gigabit
Ethernet
■ Three USB 2.0 via
Connection
Module
