CHAPTER4 Mounting the Device
Mediant 800 Gateway & E-SBC | Hardware Installation Manual

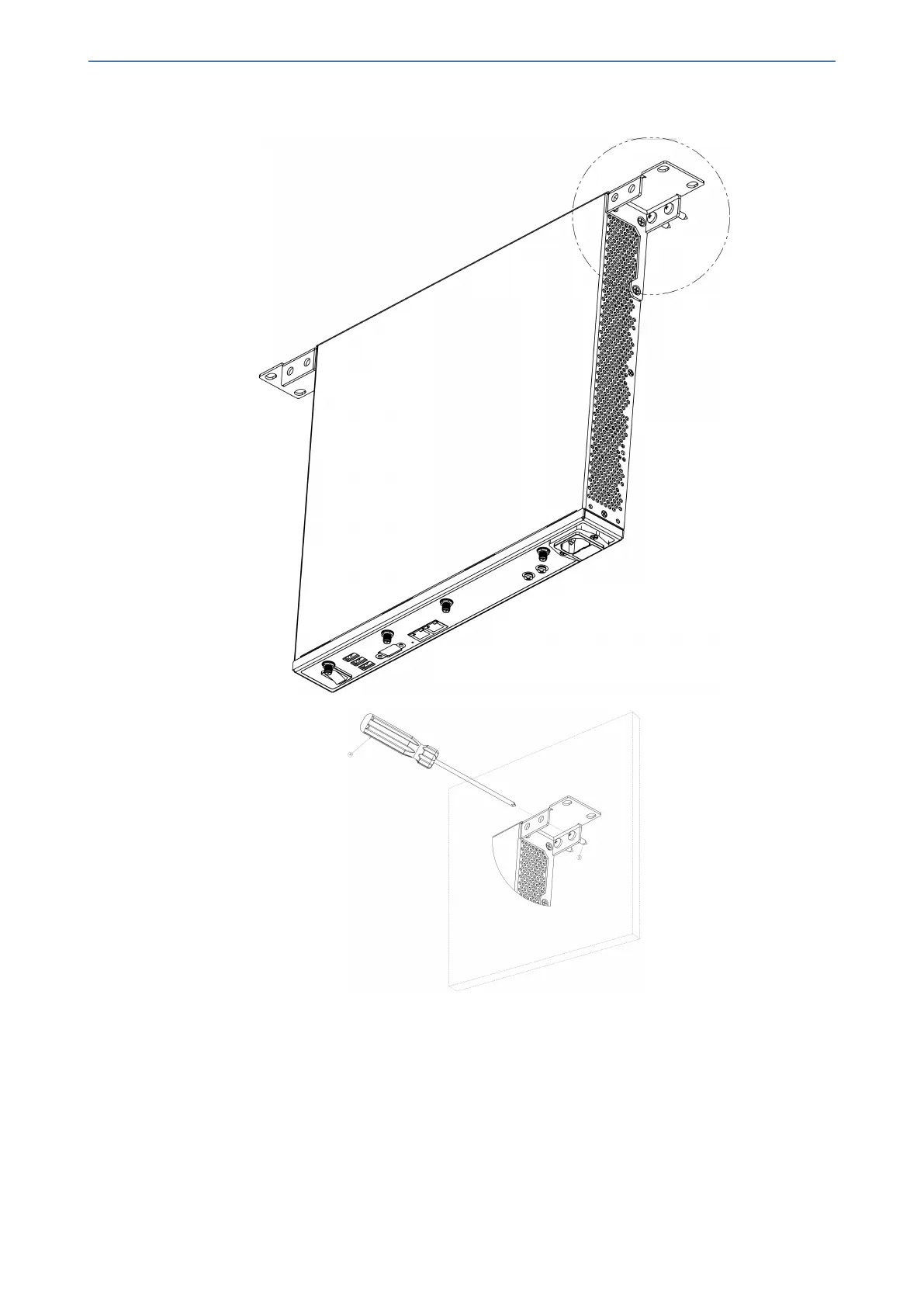

Figure 4-3: Attaching the Chassis with Mounting Brackets to Wall
19-Inch Rack Mounting
The device can be installed in a standard 19-inch rack by implementing one of the following
mounting methods:
■ Placing it on a pre-installed shelf in a 19-inch rack – see Using a Pre-Installed Rack Shelf on
the next page
■ Attaching it directly to the rack’s frame using the device's mounting brackets (supplied) that
need to be attached to the chassis – see Using Mounting Brackets on the next page
