CHAPTER5 Cabling the Device
Mediant 800 Gateway & E-SBC | Hardware Installation Manual

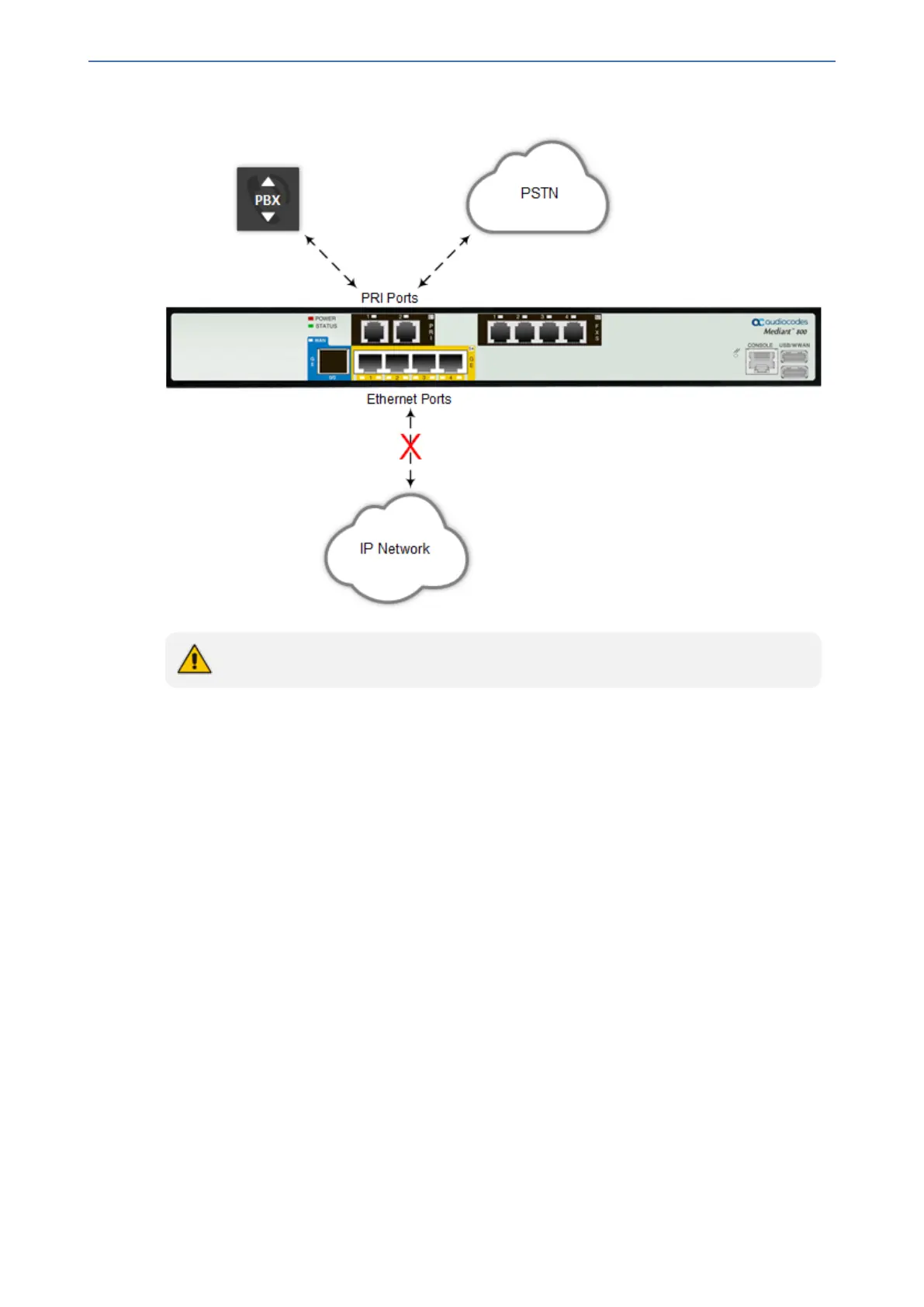

Figure 5-16: Cabling PRI Ports for PSTN Fallback
It doesn't matter which PRI port you use to connect to a Tel entity (i.e., PBX or PSTN).
Connecting to a Computer for Serial Communication
The device provides an RS-232 serial interface port on its front panel for serial communication with
a PC.
Cable specifications:
■ Connector Type: RJ-45
■ Cable: RJ-45 to DB-9 cable adaptor
➢ To connect the device's serial interface to a computer:
1. Connect the RJ-45 cable connector to the device's serial port, labeled CONSOLE.
2. Connect the other end of the cable to the COM1 or COM2 RS-232 communication port on your
PC.
- 25 -

AudioCodes Mediant 800 Series Specifications

General

VoIP Protocols	SIP, H.323
Humidity	10% to 90% non-condensing
Interfaces	FXS, FXO, BRI, E1/T1
Network Interfaces	10/100/1000 Ethernet
Telephony Interfaces	FXS, FXO, BRI, E1/T1
Management	Web GUI, CLI, SNMP
Security	TLS, SRTP, HTTPS, SSH, IPsec
Power Supply	AC 100-240V, 50/60Hz
Type	VoIP Gateway
Redundancy	Optional
Fax Support	T.38, G.711 pass-through
Codecs	G.711, G.726, G.729, G.723
Ethernet Interfaces	Up to 4 x 10/100/1000Base-T
Dimensions	1U
Operating Temperature	0°C to 40°C
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
