AudioCodes Mediant 800 Series User Manual

CHAPTER4 Mounting the Device
Mediant 800 Gateway & E-SBC | Hardware Installation Manual

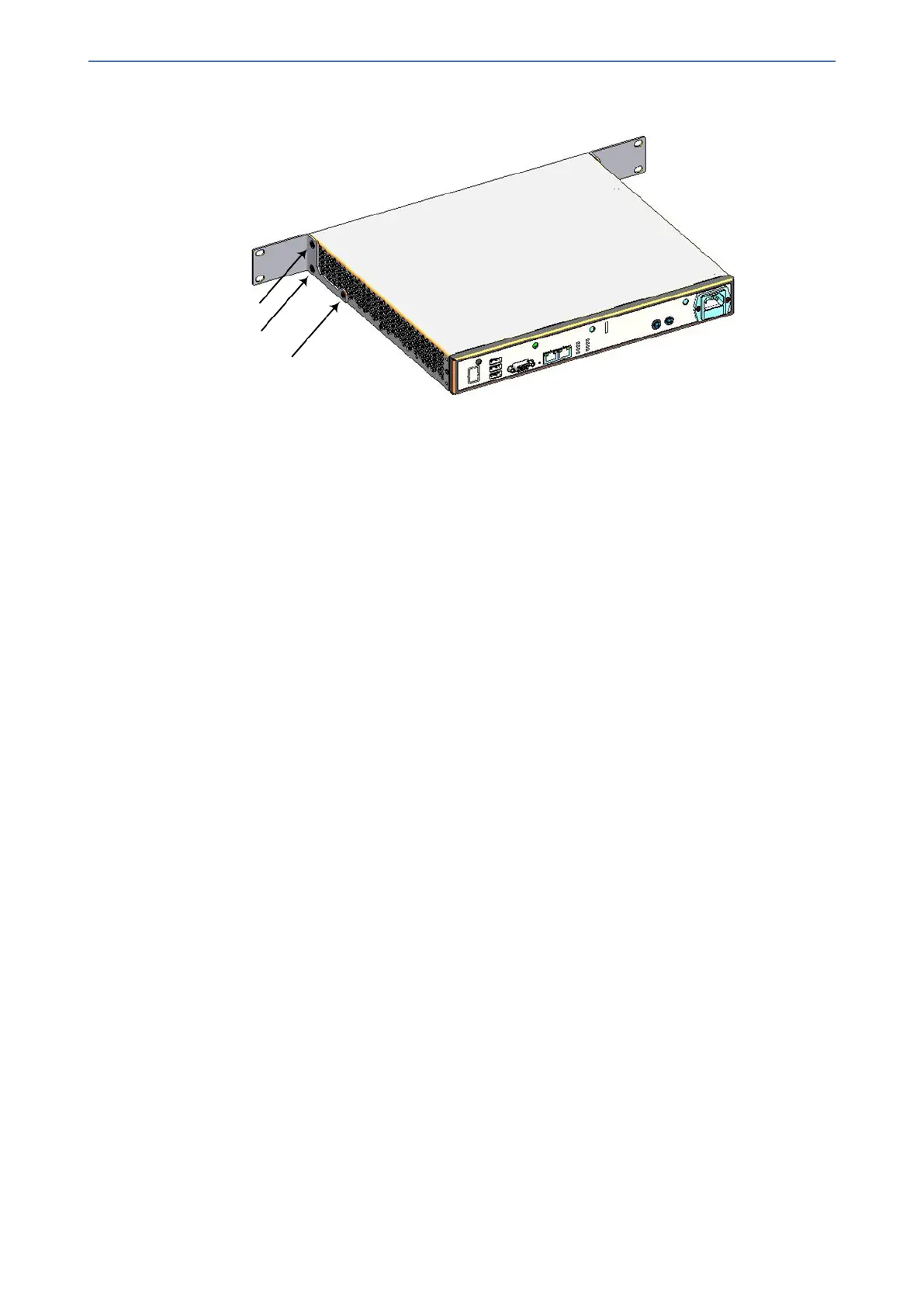

Figure 4-5: Attaching the Mounting Brackets
2. Place the device on a pre-installed shelf in the rack.
3. Attach the ends of the mounting brackets (that you installed in Step 1) to the vertical track of
the rack's frame, using standard 19-inch rack bolts (not supplied).
- 14 -

AudioCodes Mediant 800 Series Specifications

General

VoIP Protocols	SIP, H.323
Humidity	10% to 90% non-condensing
Interfaces	FXS, FXO, BRI, E1/T1
Network Interfaces	10/100/1000 Ethernet
Telephony Interfaces	FXS, FXO, BRI, E1/T1
Management	Web GUI, CLI, SNMP
Security	TLS, SRTP, HTTPS, SSH, IPsec
Power Supply	AC 100-240V, 50/60Hz
Type	VoIP Gateway
Redundancy	Optional
Fax Support	T.38, G.711 pass-through
Codecs	G.711, G.726, G.729, G.723
Ethernet Interfaces	Up to 4 x 10/100/1000Base-T
Dimensions	1U
Operating Temperature	0°C to 40°C
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
