AudioCodes Mediant 800 Series User Manual

CHAPTER5 Cabling the Device
Mediant 800 Gateway & E-SBC | Hardware Installation Manual

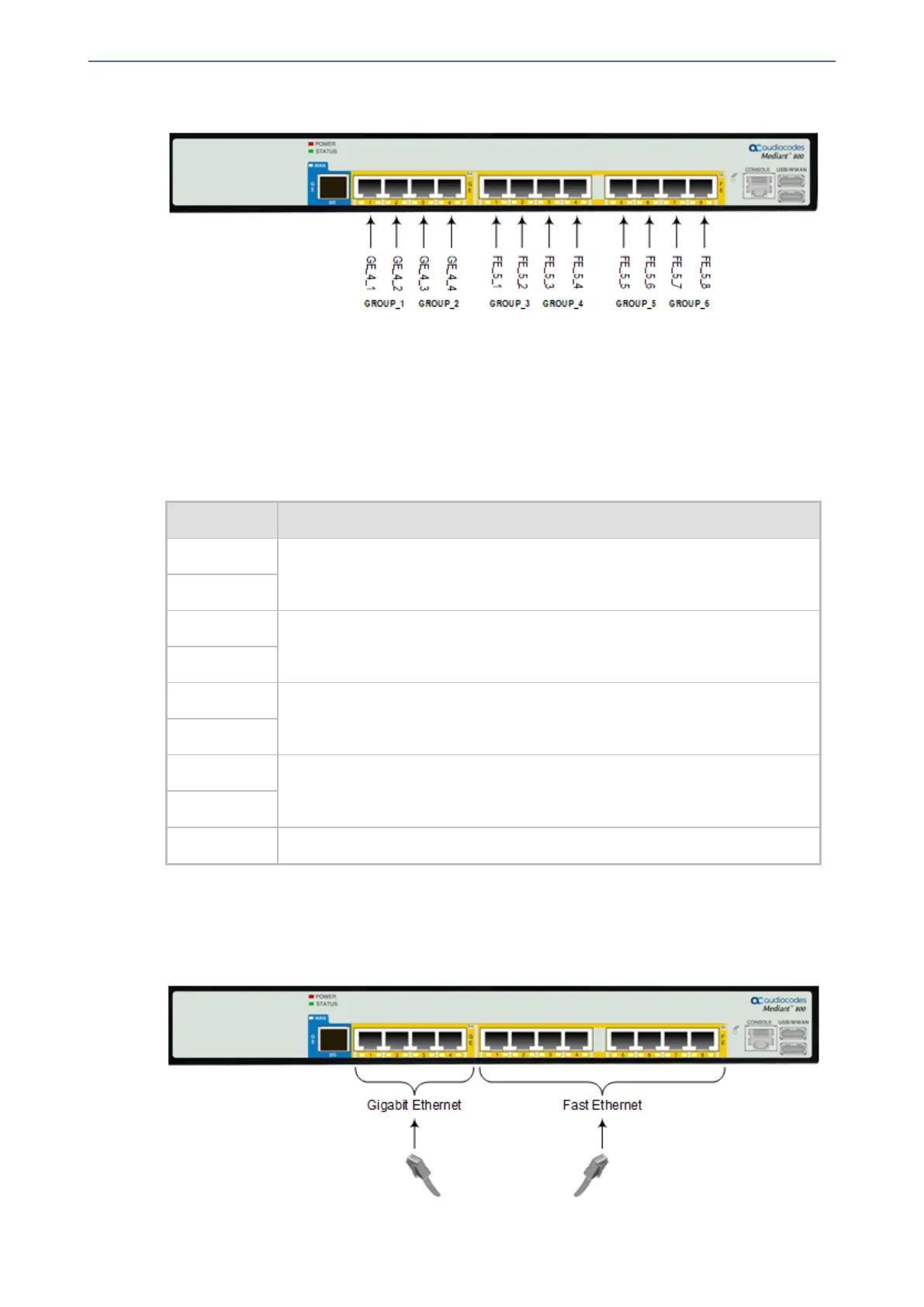

Figure 5-2: LAN Port-Pair Groups and Web Interface String Names
These ports support half- and full-duplex modes, auto-negotiation, and straight or crossover cable
detection.
Cable specifications:
■ Cable: Category 5e or Category 6 shielded twisted pair (STP) straight-through
■ Connector Type: RJ-45
■ Connector Pinouts:
Table 5-1: RJ-45 Connector Pinouts for GbE/FE
Pin Signal Name
1 Ethernet signal pair (10/100/1000Base-T)
2
3 Ethernet signal pair (10/100/1000Base-T)
6
4 Ethernet signal pair (1000Base-T)
5
7 Ethernet signal pair (1000Base-T)
8
Shield Chassis ground
➢ To connect the device to the LAN:
1. Connect the RJ-45 connector on one end of the Ethernet cable to one of the device's Ethernet
ports, labeled GE (for Gigabit Ethernet ports) and FE (for Fast Ethernet ports).
Figure 5-3: Connecting the LAN Ports
- 17 -

AudioCodes Mediant 800 Series Specifications

General

VoIP Protocols	SIP, H.323
Humidity	10% to 90% non-condensing
Interfaces	FXS, FXO, BRI, E1/T1
Network Interfaces	10/100/1000 Ethernet
Telephony Interfaces	FXS, FXO, BRI, E1/T1
Management	Web GUI, CLI, SNMP
Security	TLS, SRTP, HTTPS, SSH, IPsec
Power Supply	AC 100-240V, 50/60Hz
Type	VoIP Gateway
Redundancy	Optional
Fax Support	T.38, G.711 pass-through
Codecs	G.711, G.726, G.729, G.723
Ethernet Interfaces	Up to 4 x 10/100/1000Base-T
Dimensions	1U
Operating Temperature	0°C to 40°C
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
