CHAPTER5 Cabling the Device
Mediant 800 Gateway & E-SBC | Hardware Installation Manual

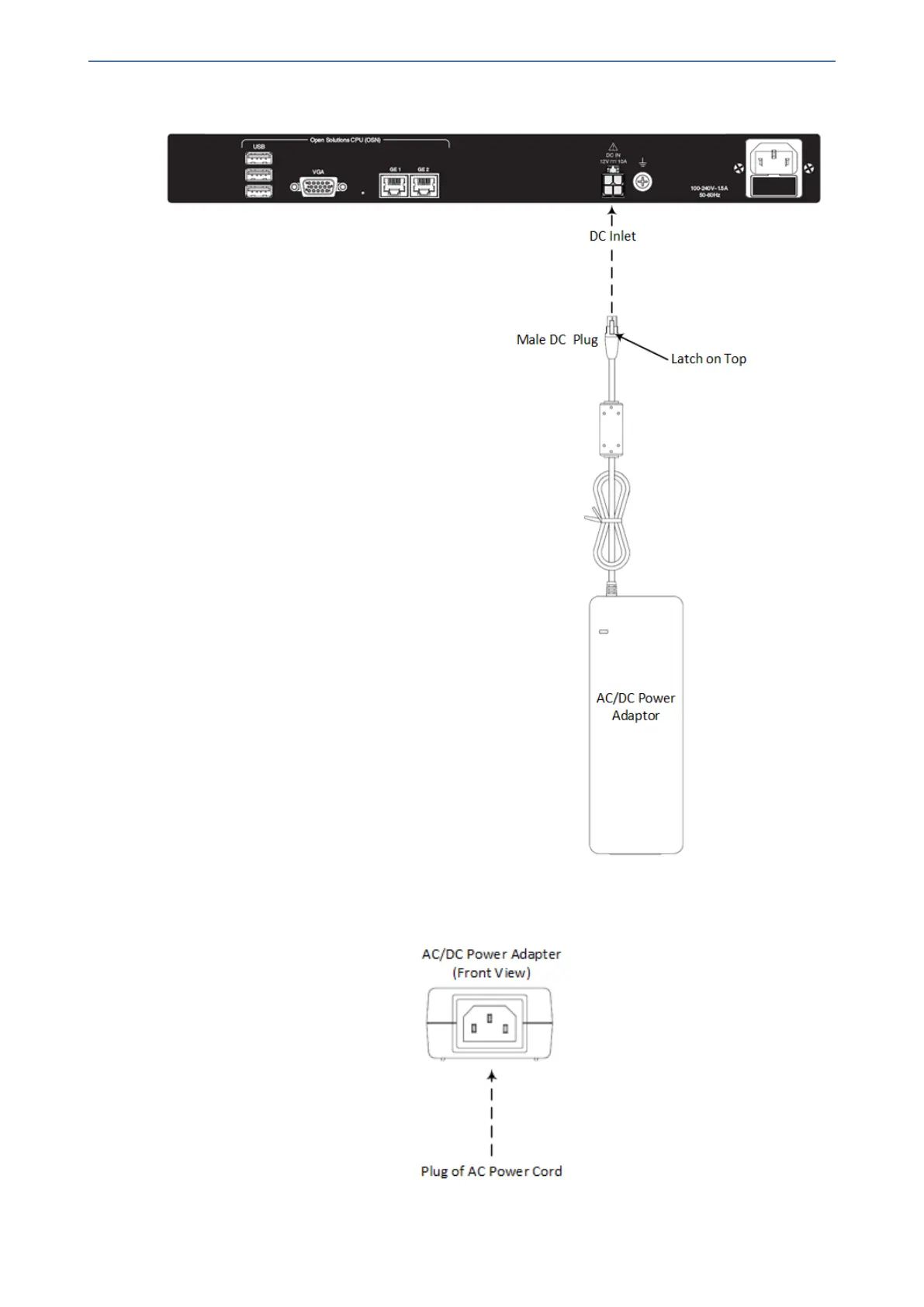

Table 5-6: Connecting DC Power Plug to DC Inlet
2. Plug the female connector that is located on one end of the AC power cord (supplied), into the
AC/DC power adaptor.
Figure 5-20: Plugging AC Power Cord into AC/DC Adaptor
- 30 -
