An advanced example shows when the MSBR can recognize LAN ports as Trunk mode:

VLAN 100 is configured on both the MSBR1 and switch devices.

On the switch, VLAN 100 and VLAN 300 is configured with clients.

On MSBR1, only enable VLAN 300 with access to the private network.

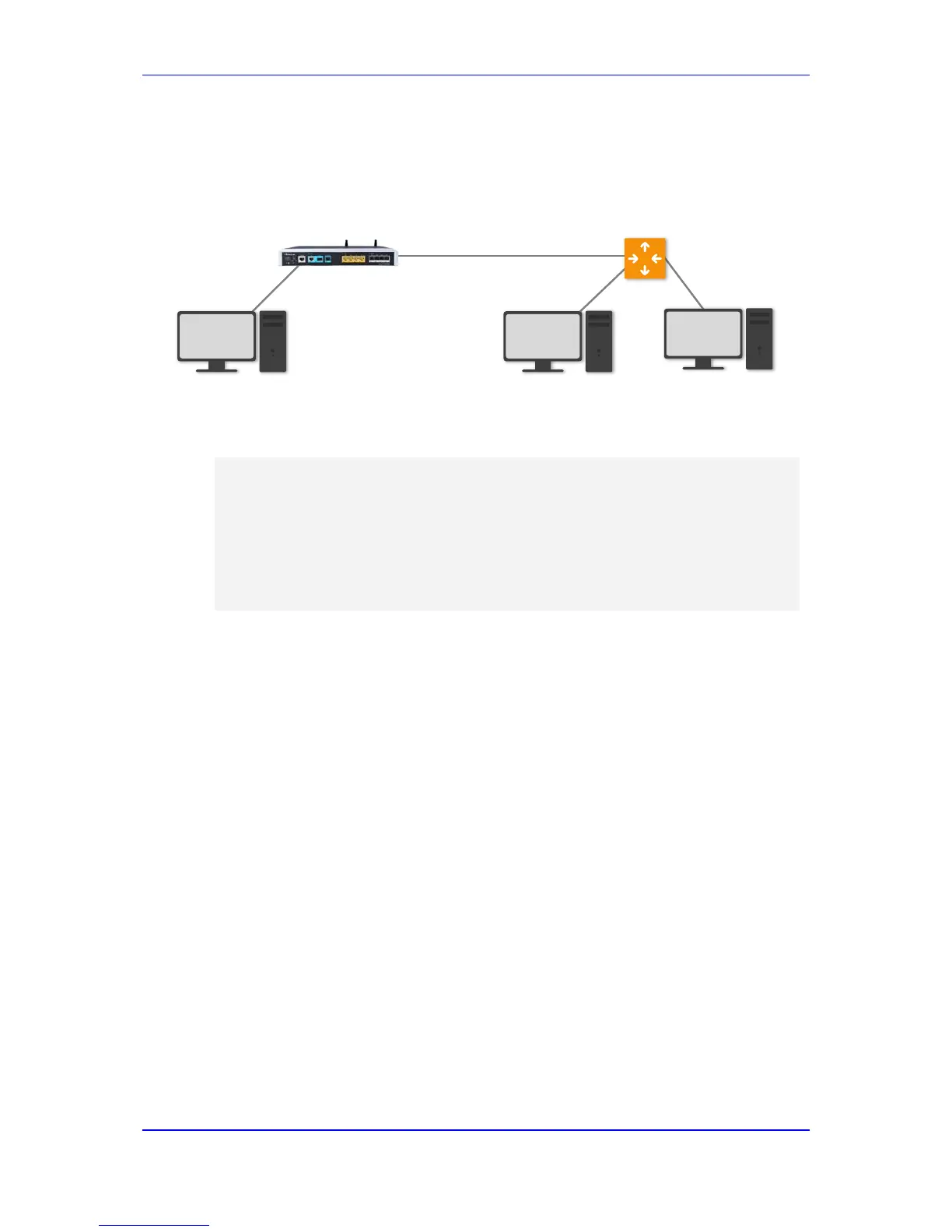

Figure 3-2: Trunk
Client 1
Host on Vlan100
Client 3
Host on Vlan100
Client 4
Host on Vlan300
Trunk Link
(Pass Vlan
100,
300
)
MSBR
Gig 4
/1
Switch
The above example is implemented using the following commands:
MSBR(config-data)# interface gigabitethernet 4/1
MSBR(conf-if-GE 4/1)# switchport mode trunk
MSBR(conf-if-GE 4/1)# switchport trunk allowed vlan add 100,300
MSBR(conf-if-GE 4/1)# exit
MSBR(config-data)# interface gigabitethernet 4/2
MSBR(conf-if-GE 4/2)# switchport mode access
MSBR(conf-if-GE 4/2)# switchport access vlan 100
MSBR(conf-if-GE 4/2)# exit
