Layer 2 Bridging using CLI
5.2 Examples
In this example, a sniffer is connected to one of the switch ports on the MSBR and a client
connected to another switch port. The figure below shows how the sniffer listens to all
transport that passes through from the Gigabit Ethernet interface 1/2.

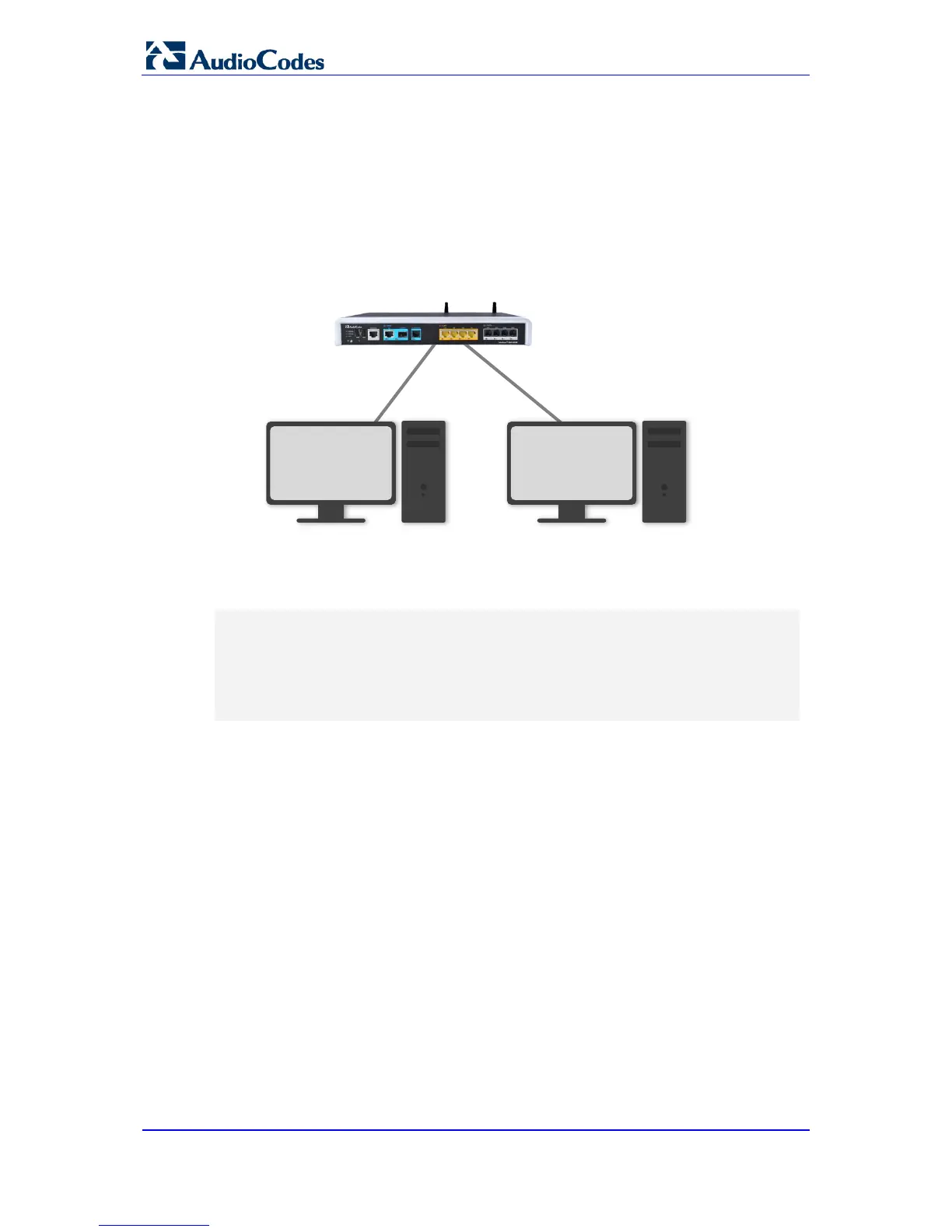

Figure 5-1: Port-Monitor
Sniffer
Client 1
IP Address
:192.168.0.1
IP Address:192.168.0.3
Gi 1/1
MSBR
Gi 1/2
The above example is implemented using the following commands:
MSBR# configure data
MSBR (config-data)# interface vlan 1
MSBR (conf-if-VLAN 1)# ip address 192.168.0.1
MSBR (config-data)# interface gigabitethernet 1/1
MSBR (conf-if-GE 1/1)# port-monitor gigabitethernet 1/2 both-
direction
