2.2.2 MP-11x Rear Panel

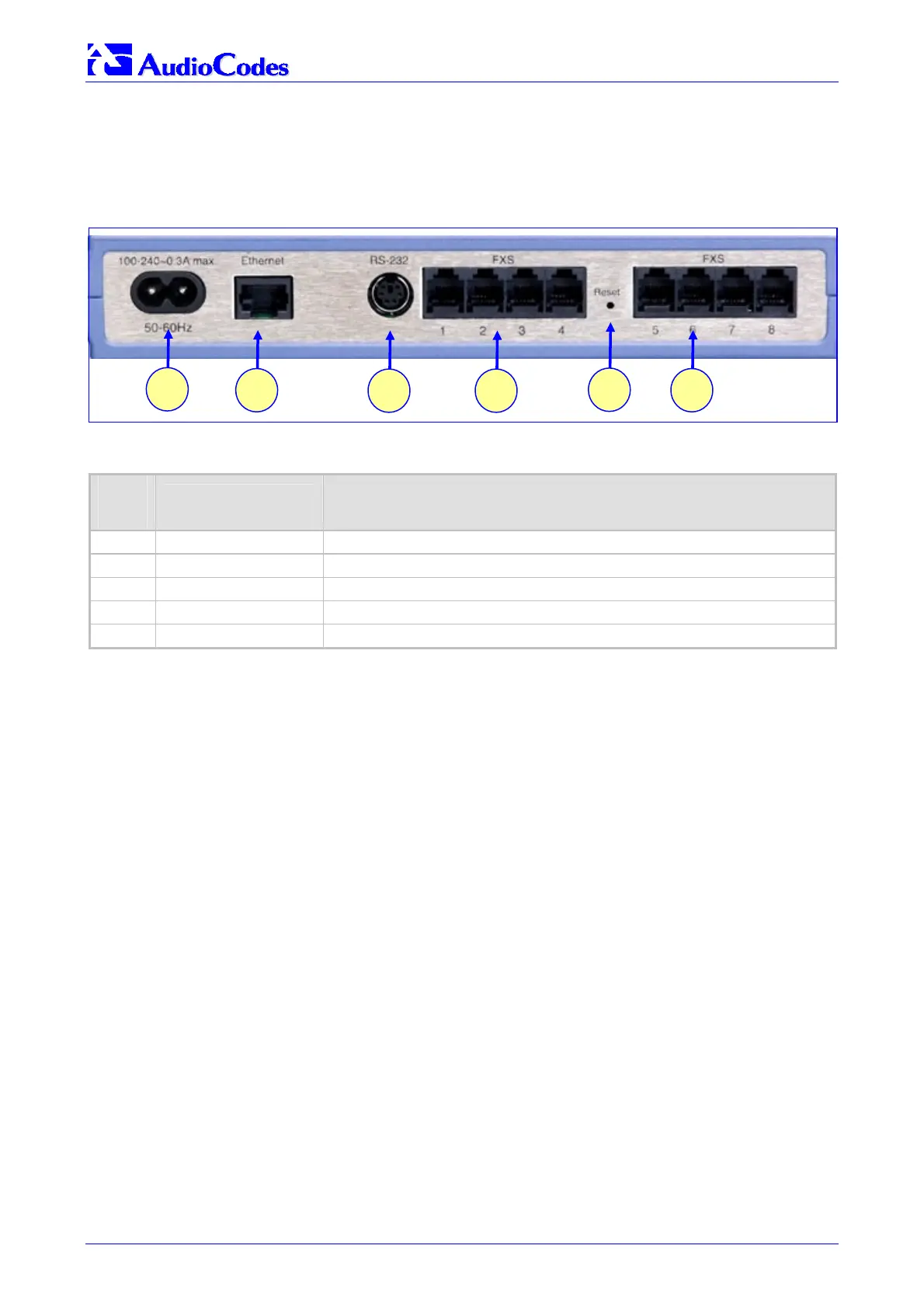

Figure 2-6 illustrates the rear layout of the MP-118 (almost identical on MP-114 and MP-112).
Table
2-8 lists and describes the rear panel connectors and button on the MP-11x.
Figure
2-6: MP-118 Rear Panel Connectors
Table 2-8: MP-11x Rear Panel Component Descriptions
Item
#
Label
Component Description
1 100-240~0.3A max. AC power supply socket
2 Ethernet 10/100 Base-TX Uplink port
3 RS-232 RS-232 status port (requires a DB-9 to PS/2 adaptor)
4 FXS 4 RJ-11 FXS ports (total 8)
5 Reset Reset button
1
2
3 4
4
5
