MediaPack SIP User’s Manual 5. Configuring the MediaPack
Version 4.6 93 June 2005
5.5.5.2 Tel Profile Settings
Use the Tel Profile Settings screen to define up to four different Tel Profiles. These Profiles are
used in the ‘Endpoint Phone Number’ table to associate different Profiles to gateway’s endpoints,
thereby applying different behavior to different MediaPack ports.
¾ To configure the Tel Profile settings, take these 9 steps:
1. Open the ‘Tel Profile Settings’ screen (Protocol Management menu > Profile Definitions
submenu > Tel Profile Settings option); the ‘Tel Profile Settings’ screen is displayed.

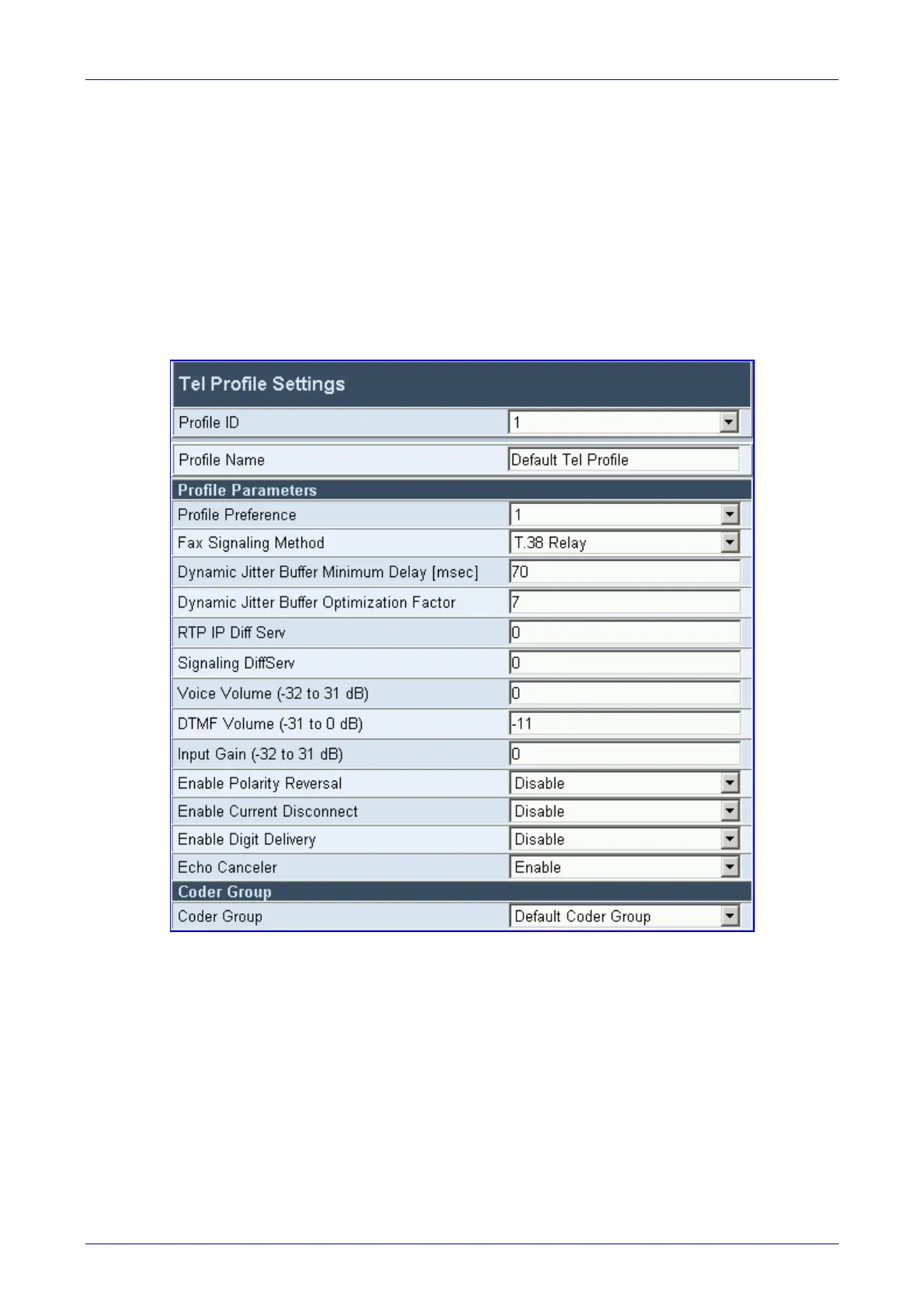

Figure
5-17: Tel Profile Settings Screen
2. In the ‘Profile ID’ drop-down list, select the Tel Profile you want to edit (up to four Tel Profiles
can be configured).
3. In the ‘Profile Name’ field, enter a name that enables you to identify the Profile intuitively and
easily.
4. In the ‘Profile Preference’ drop-down list, select the preference (1-10) of the current Profile.
The preference option is used to determine the priority of the Profile. If both IP and Tel
profiles apply to the same call, the coders and other common parameters of the preferred
Profile are applied to that call. If the Preference of the Tel and IP Profiles is identical, the Tel
Profile parameters are applied.
Note: If the coder lists of both IP and Tel Profiles apply to the same call, an intersection of
the coders is performed (i.e., only common coders remain). The order of the coders is
determined by the preference.
