Analog Gateways 13 MP-11x
Hardware Installation Manual 3. Physical Description
3 Physical Description
This chapter provides a physical description of MP-11x.
3.1 Physical Dimensions and Operating Environment
The device's physical dimensions and operating environment are listed in the table below:
Table 3-1: Physical Dimensions and Operating Environment
Physical Specification Description
Dimensions (H x W x D)
42 x 172 x 220 mm (1.65 x 8.66 x 6.77 in.)
Weight
0.5 kg (1.1 lbs.) approx.
Environmental
Operational: 5 to 40°C (41 to 104°F)
Storage: -25 to 85°C (-13 to 185°F)
Humidity: 10 to 90% non-condensing
3.2 Front Panel and LED Description
The device's front panel provides LEDs for indicating various operating statuses. The figure
below displays the front panel of the MP-118. This is similar to the MP-114 and MP-112
models, differing only in the number of Channel Status LEDs (corresponding to the
number of channels).

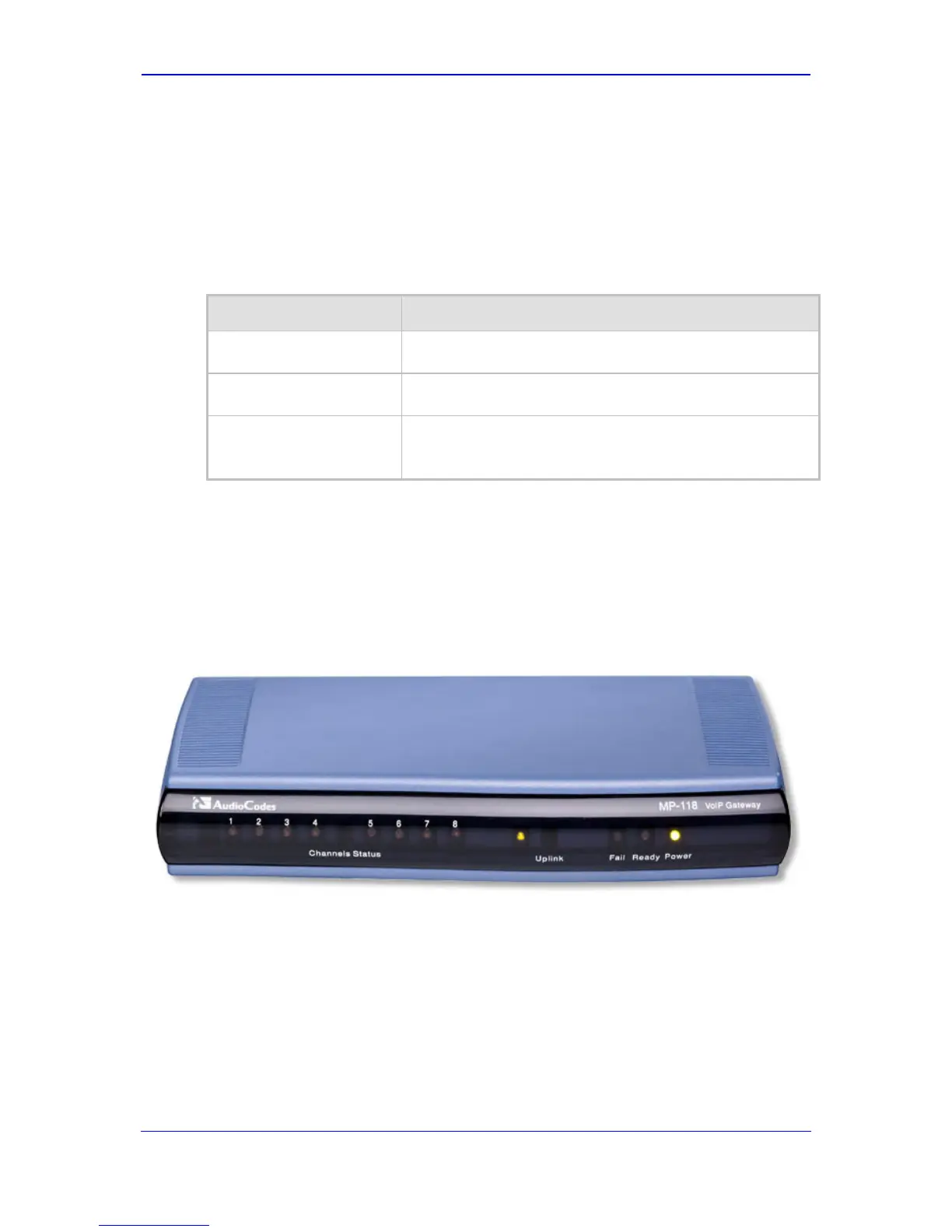

Figure 3-1: MP-11x Front Panel (e.g., MP-118)
