Hardware Installation Manual 5. Cabling MP-11x
5.6 Connecting MP-11x to Computer for Serial
Communication
The procedure below describes how to connect the MP-11x serial (RS-232) interface to a
computer.
This cabling requires a straight-through PS/2 to DB-9 cable adaptor with the following
connector pinouts:

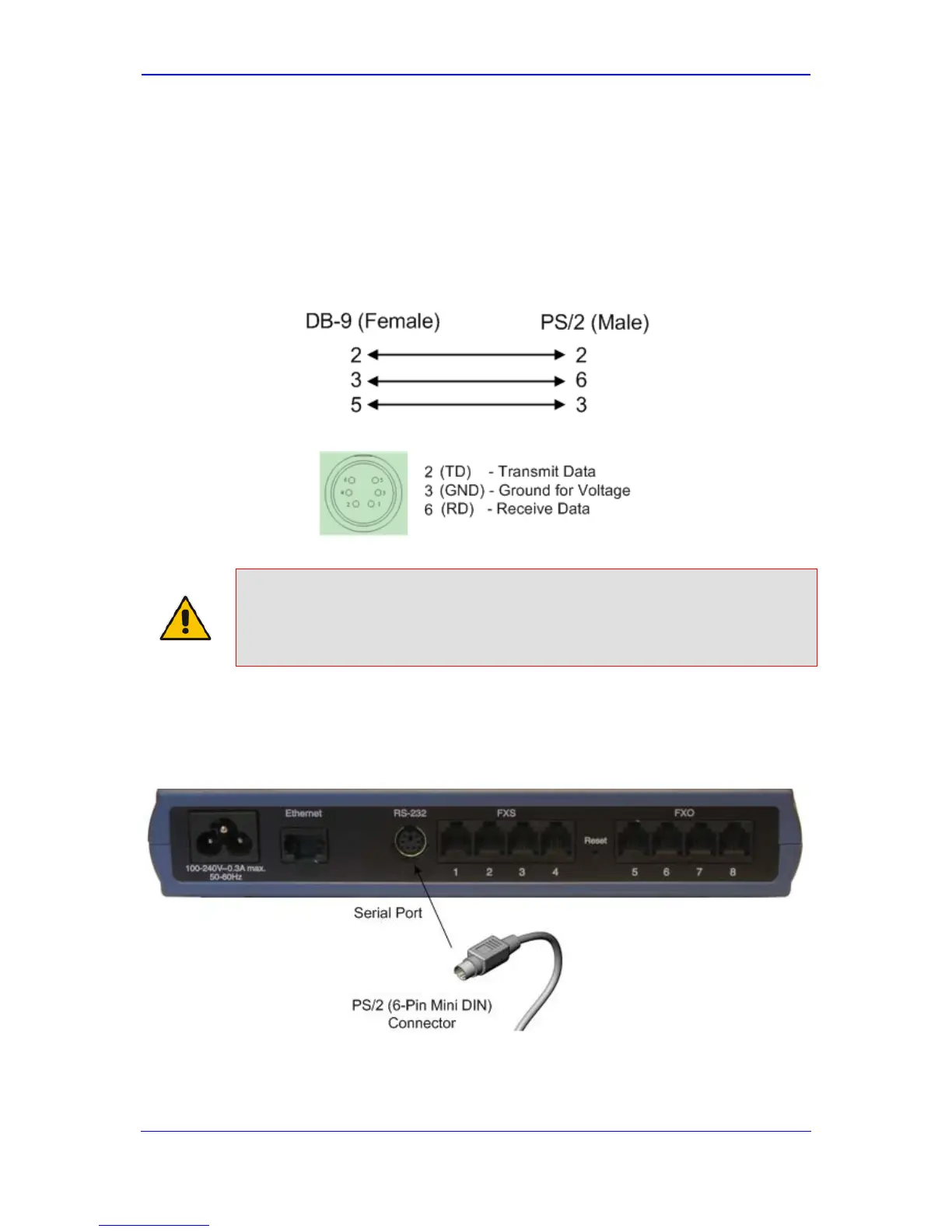

Figure 5-11: PS/2 to DB-9 Adaptor Connector Pinouts
Figure 5-12: PS/2 Connector Pinouts
Notes:
• This procedure is not applicable to MP-112 as this model does not provide an RS-
232 serial interface port.
• The PS/2 to DB-9 cable adaptor is not included in the MP-11x package.
 To connect MP-11x to a computer for serial communication:
1. Connect the PS/2 connector on one end of the cable to the MP-11x RS-232 port
(labeled RS-232).
Figure 5-13: Connecting the Serial Port
2. Connect the DB-9 connector at the other end of the cable to either the COM1 or COM2
RS-232 communication port on your computer.

AudioCodes MediaPack MP-118 Specifications

General

Category	Gateway
Analog Ports	8 FXS ports
Voice Codecs	G.711, G.723.1, G.726, G.729A/B
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Protocols	SIP, MGCP, H.323
Model	AudioCodes MediaPack MP-118
Fax Support	T.38
Management	Web-based, SNMP, CLI
Security	SRTP, TLS, HTTPS
Power Supply	AC 100-240V, 50-60Hz
Humidity	10% to 90%, non-condensing
Network Interfaces	2 x 10/100Base-T Ethernet
