Analog Gateways 33 MP-11x
Hardware Installation Manual 5. Cabling MP-11x
To connect MP-11x to the power supply:
1. Connect the line socket of the AC power cord (supplied) to the device's AC power
socket (labeled 100-240V 0.3A ~50-60 Hz), located on the rear panel.

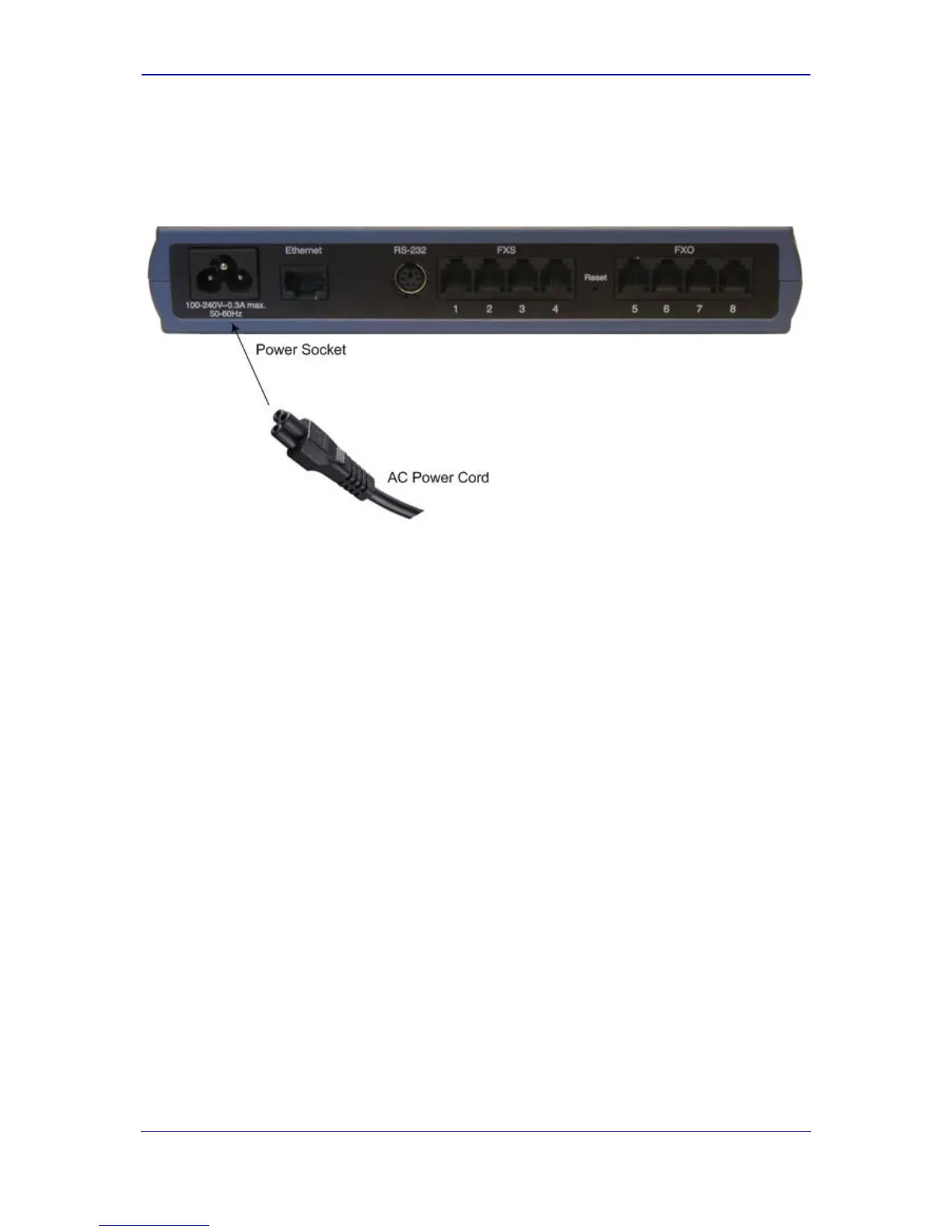

Figure 5-14: Connecting to the Power Supply
2. Connect the plug at the other end of the AC power cord to a standard electrical outlet.
