Analog Gateways 25 MP-11x
Hardware Installation Manual 5. Cabling MP-11x
5.2 Connecting MP-11x to the Ethernet Network
The procedure below describes how to connect MP-11x directly to the Ethernet network.
Cable specifications:
Cable: Crossover Ethernet cable
Connector: RJ-45
Connector Pinouts:

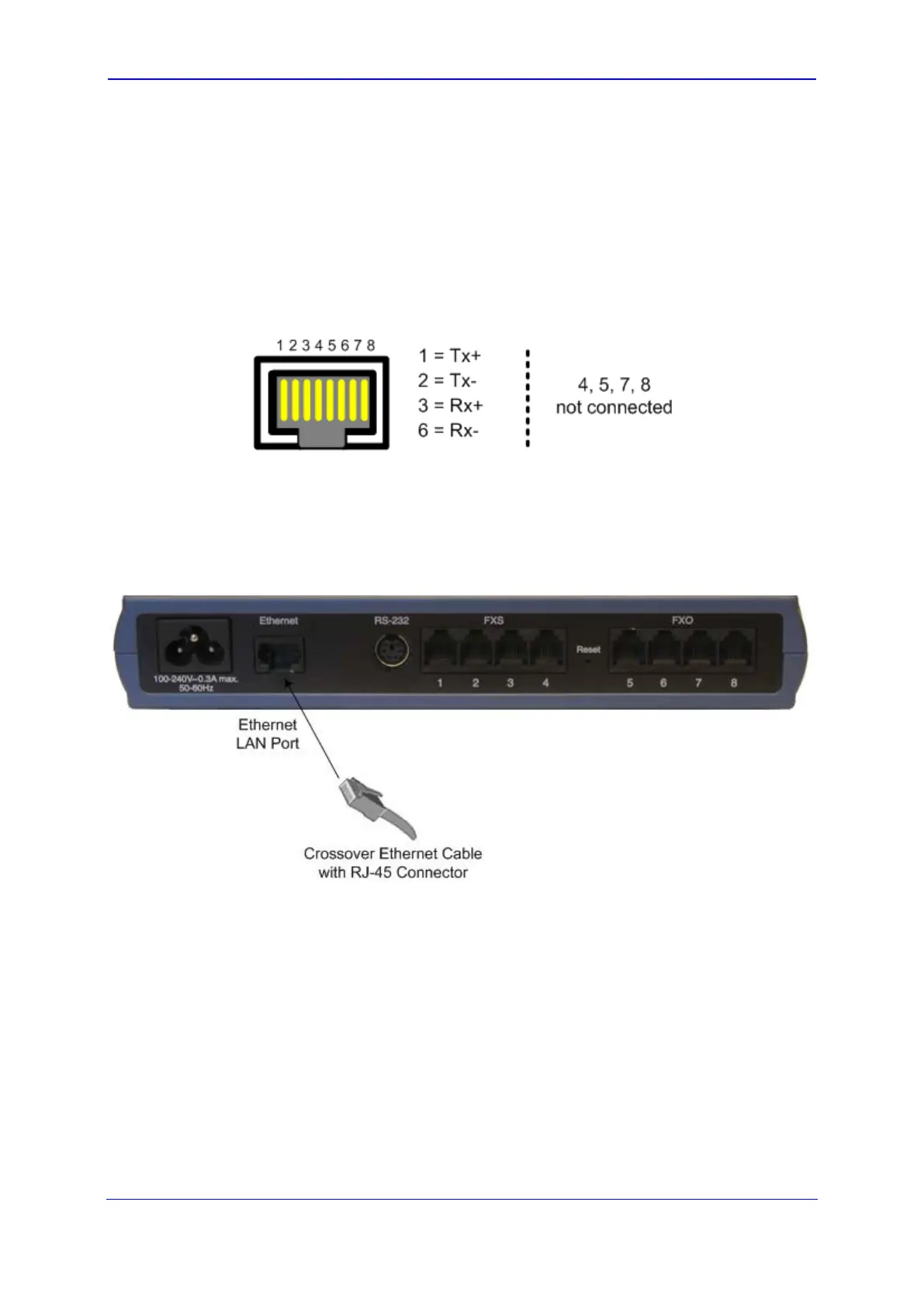

Figure 5-2: RJ-45 Connector Pinouts for Ethernet Connection
To connect MP-11x directly to the Ethernet network:
1. Connect one end of a crossover RJ-45 Ethernet cable to the Ethernet port (labeled
Ethernet).
Figure 5-3: Connecting to the Ethernet
2. Connect the other end of the cable to the network.
