To connect MP-11x to FXO devices:
1. Connect one end of an RJ-11 cable to the desired FXO port (labeled FXO).

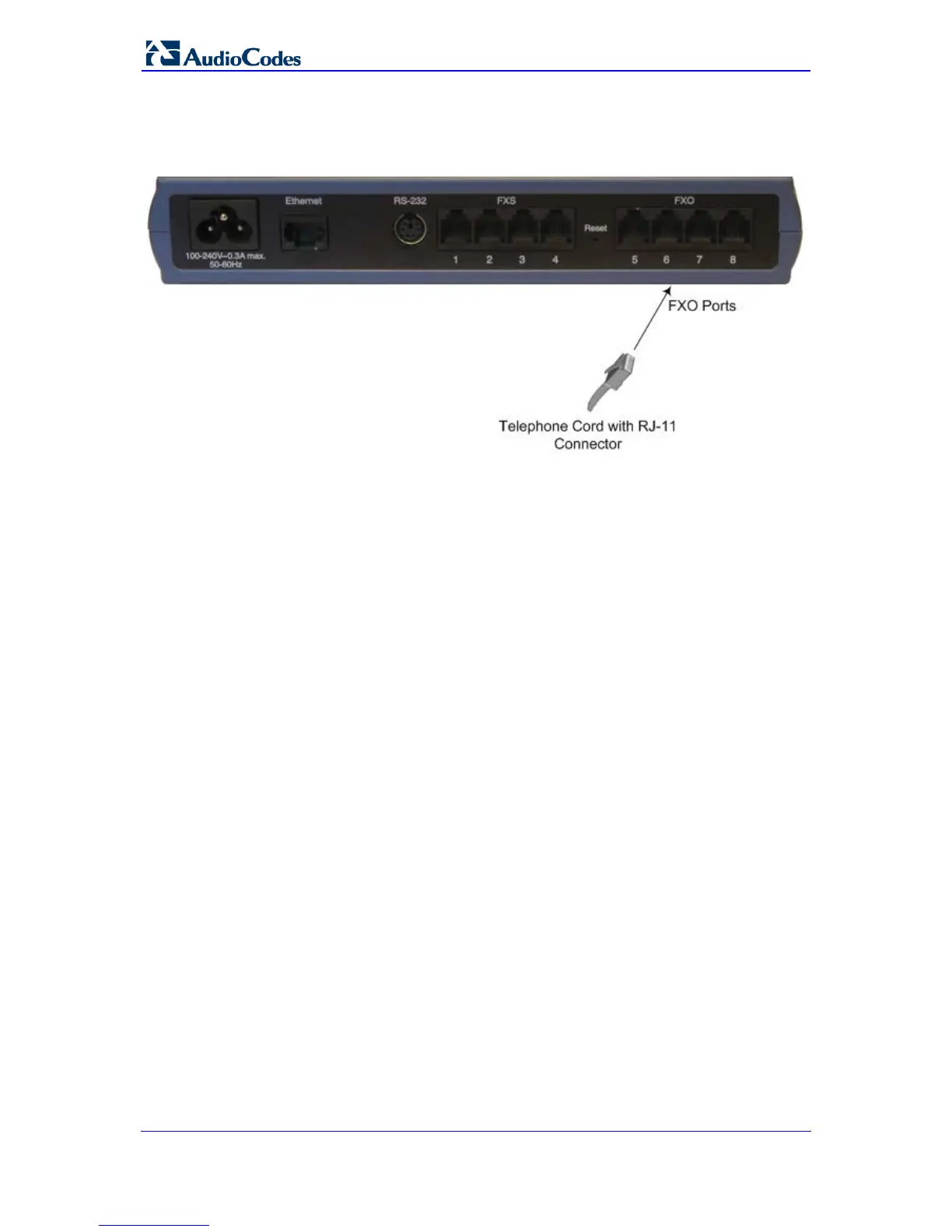

Figure 5-7: Connecting FXO Interfaces
2. Connect the other end of the cable to the required telephone interface (e.g., telephone
exchange analog lines or PBX extensions).
