Hardware Installation Manual 4. Mounting MP-11x
4 Mounting MP-11x
The device can be mounted in one of the following ways:
Desktop mounting - see 'Desktop Mounting' on page 18
Wall mounting - see 'Wall Mounting' on page 18
Standard 19-inch rack mounting - see '19-inch Rack Mounting' on page 20

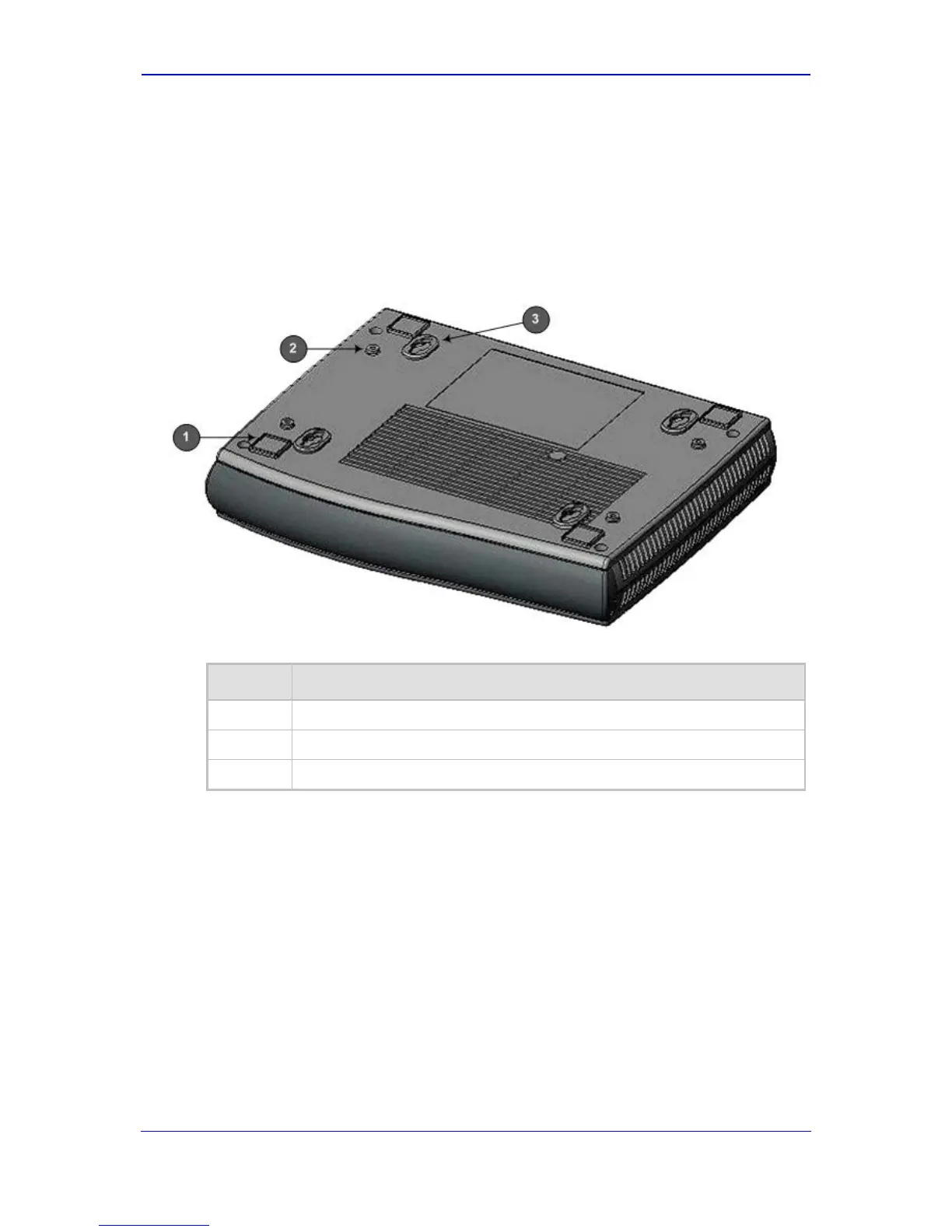

The figure below shows the mounting components on the underside of MP-11x:
Figure 4-1: MP-11x Underside
Table 4-1: Mounting Components on MP-11x Underside
Item # Description
1
Square slot used to attach anti-slide bumpers (for desktop mounting).
2
Screw opening used to attach MP-11x to a 19-inch shelf rack.
3
Keyholes for mounting MP-11x to a wall.
