AudioCodes MediaPack MP-124 Installation Manual

Version 6.0 13 March 2010
Installation Manual 2. Installing the Device
2 Installing the Device
This section describes the MP-11x (refer to 'Installing the MP-11x Series' 13 on page ) and
MP-124 (refer to 'Installing MP-124' 21 on page ) hardware installation. This includes
physical description, unpacking the shipped package, and mounting and cabling
procedures.
2.1 Installing the MP-11x Series
This subsection describes the MP-11x hardware installation.
2.1.1 Physical Description
The subsections below provide a physical description of the front and rear panels of the
MP-11x.
2.1.1.1 MP-11x Front Panel
The device's front panel provides LEDs for indicating various operating statuses. The figure
below displays the front panel of the MP-118. This is similar to the MP-114 and MP-112
models, differing only in the number of Channel Status LEDs (corresponding to the
number of channels). For a description of the device's LEDs, refer to 'Monitoring Front-
Panel LEDs' 55 on page .

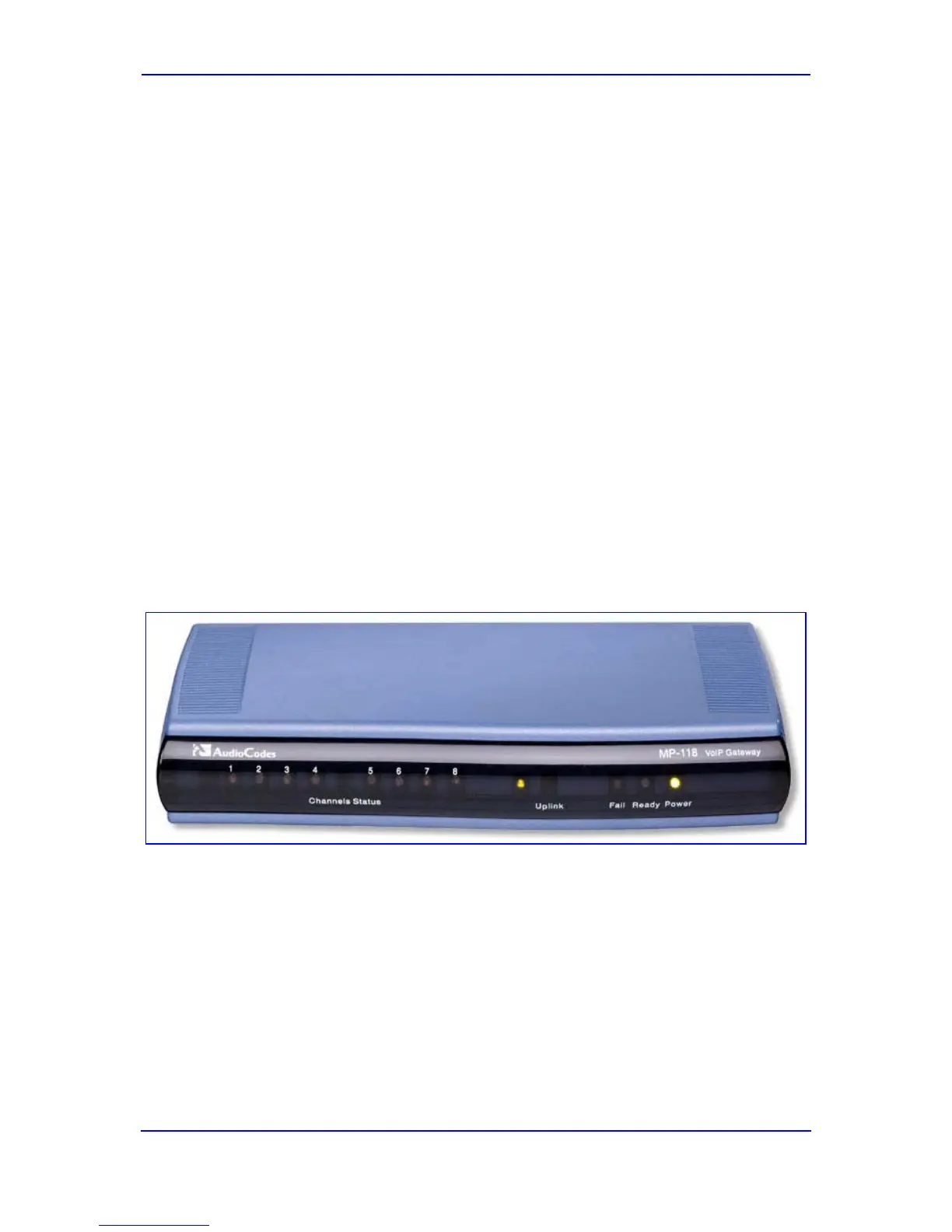

Figure 2-1: MP-11x (e.g., MP-118) Front Panel

AudioCodes MediaPack MP-124 Specifications

General

Model	MediaPack MP-124
Category	Gateway
Protocols	SIP, H.323, MGCP
Voice Codecs	G.711, G.723.1, G.726, G.729A/B
Fax Support	T.38
Management	SNMP
Security	TLS/SRTP
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-25 to 70°C
Humidity	10% to 90%, non-condensing
Analog Ports	24 FXS
