Installation Manual 4. Monitoring the Device
4 Monitoring the Device
The operating status of the device can be monitored in the following ways:
Monitoring the device's hardware front-panel LEDs (refer to 'Front-Panel LEDs'
55
on
page ).
Monitoring the device using the Web interface (refer to 'Web Interface' 56 on page ).
4.1 Front-Panel LEDs

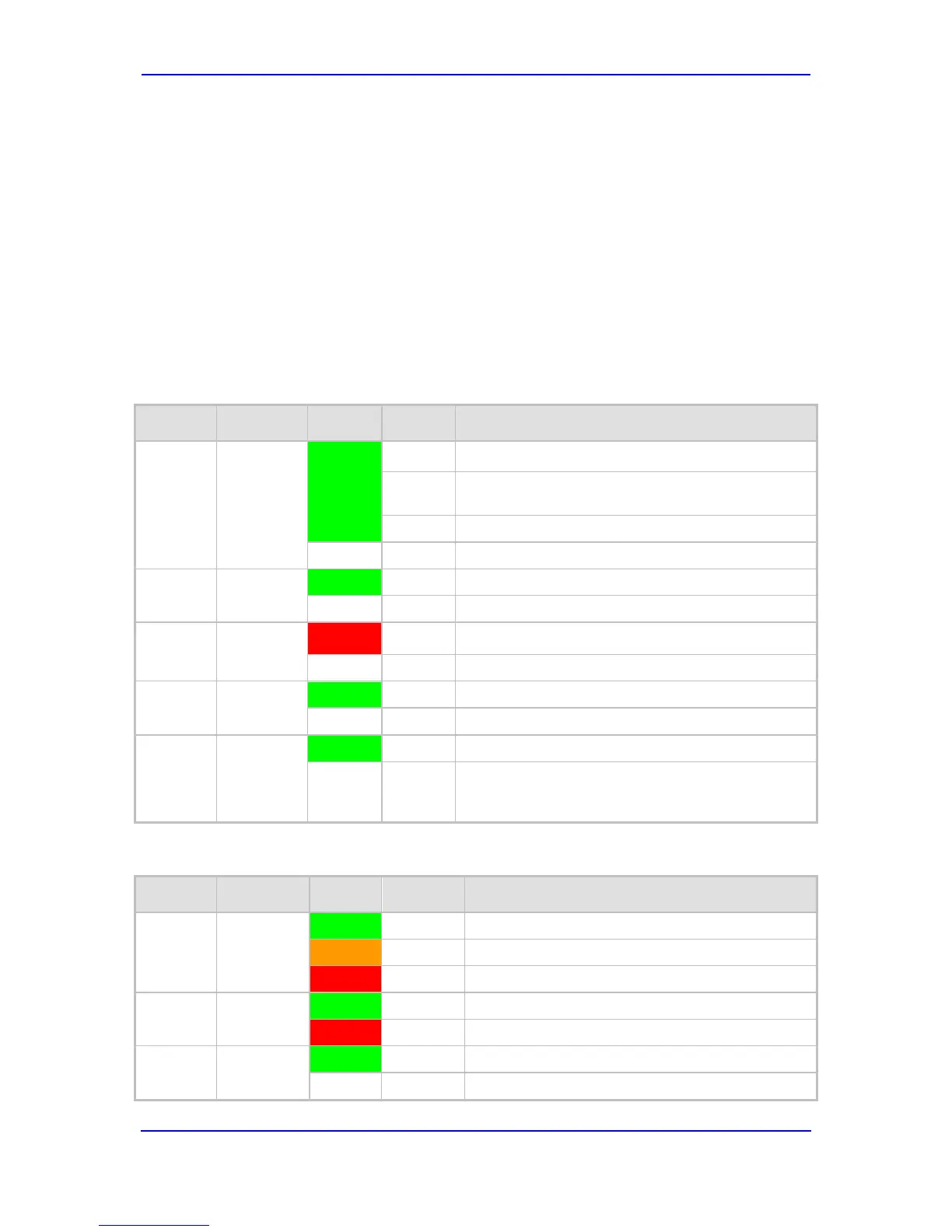

Table 4-1: MP-11x Front-Panel LEDs Descriptio
The operating status LEDs on the front panel of the device are described in the tables
below:
n
LED Type Color State Definition
Channels
Status
Telephone
Interface
Green
Blinking
Phone is ringing (incoming call, before answering).
Fast
Blinking
Line malfunction.
On Off-hook or ringing.
- Off Normal on-hook position.
Uplink
Ethernet
Link Status
Green On Valid 10/100Base-TX Ethernet connection.
- Off No uplink.
Fail
Failure
Indication
Red On
Failure (fatal error) or system initialization.
- Off Normal working condition.
Ready
Device
Status
Green On Device powered, self-test OK.
- Off Software loading or system failure.
Power
Power
Supply
Status
Green
On
Power is received by the device.
-
Off
Failure / disruption in the AC power supply or power
is currently not being supplied to the device through
the AC power supply entry.
Table 4-2: MP-124 Front-Panel LEDs Description
Label Type Color State Function
Ready
Device
Status
Green On Device powered on, self-test OK.
Orange Blinking Software loading/initialization.
Red On Malfunction.
LAN
Ethernet
Link Status
Green On Valid 10/100Base-TX Ethernet connection.
Red On Malfunction.
Control
Control
Link
Green Blinking Sending and receiving Protocol (SIP) messages.
- - No traffic.
