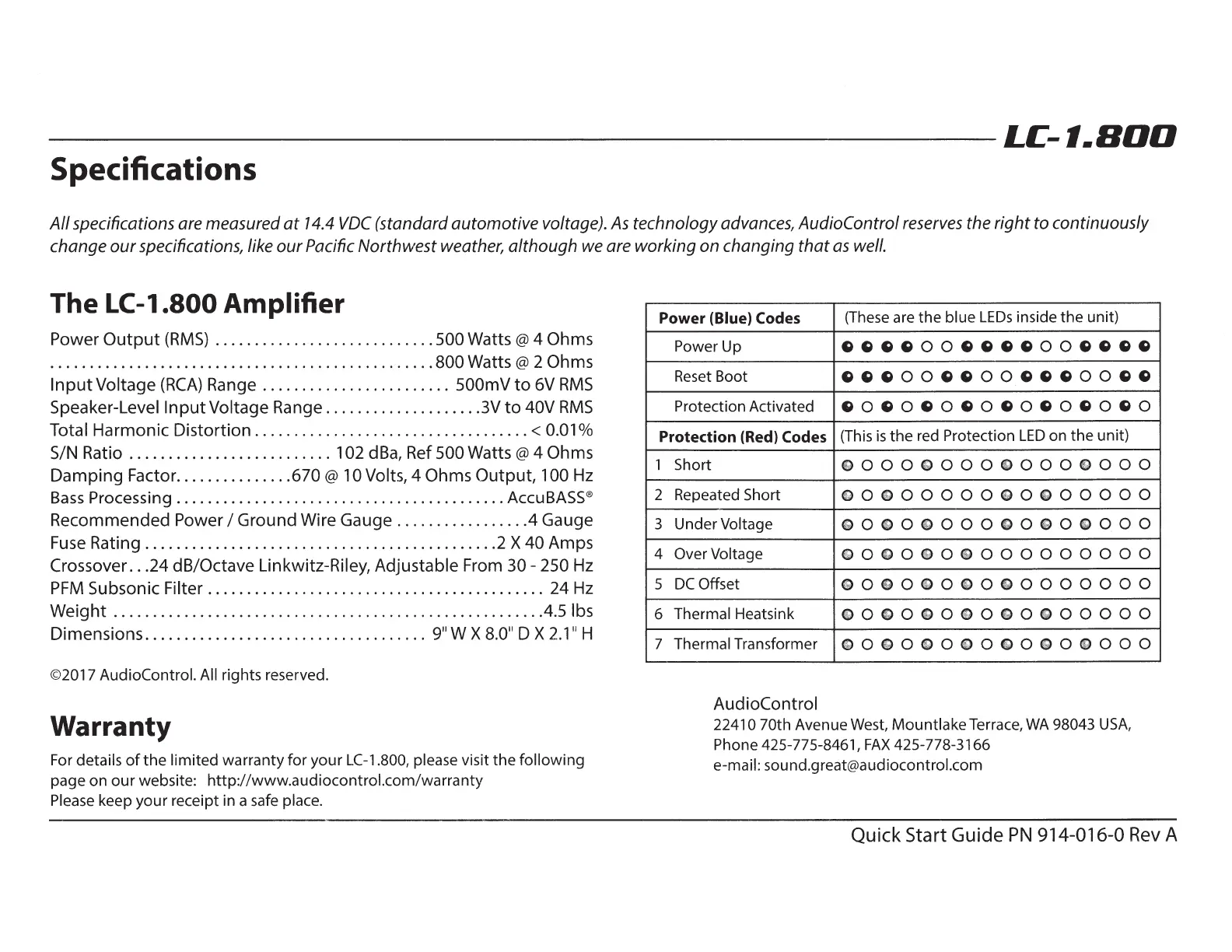

Specifications
All specifications are measured at 14.4 VDC (standard automotive voltage). As technology advances, AudioControl reserves the right to continuously
change
our specifications, like our Pacific Northwest weather, although we are working on changing that as well.
The LC-1.800 Amplifier
Power Output (RMS) ............................ 500 Watts @ 4 Ohms
................................................. 800 Watts@ 2 Ohms
Input Voltage (RCA) Range ........................ 500mV to 6V RMS
Speaker-Level Input Voltage Range .................... 3V to 40V RMS
Total Harmonic Distortion ................................... < 0.01 o/o
5/N Ratio .......................... 102 dBa, Ref 500 Watts@ 4 Ohms
Damping Factor ............... 670@ 10 Volts, 4 Ohms Output, 100Hz
Bass Processing .......................................... AccuBASS®
Recommended Power I Ground Wire Gauge ................. 4 Gauge
Fuse Rating
............................................. 2 X 40 Amps
Crossover
... 24 dB/Octave Linkwitz-Riley, Adjustable From 30- 250Hz
PFM Subsonic Filter ........................................... 24Hz
Weight ....................................................... 4.5 lbs
Dimensions
.................................... 9
11
W X 8.0" D X 2.1
11
H
©2017 AudioControl. All rights reserved.
Warranty
For details of the limited warranty for your LC-1.800, please visit the following
page on
our website: http:/ /www.audiocontrol.com/warranty
Please keep your receipt in a safe place.
Power (Blue) Codes
(These are the blue LEOs inside the unit)
Power Up
ll ll ll ll 0 0 ll Q Q Q 0 0 Q Q Q Q
Reset Boot Q Q Q 0 0 Q Q 0 0 ll Q Q 0 0 ll Q
ProtectionActivated Q 0 Q 0 ll 0 Q 0 Q 0 Q 0 Q 0 Q 0
Protection (Red) Codes (This is the red Protection LED on the unit)
Short
I Q 0 0 0 Q 0 0 0 Q 0 0 0 Q 0 0 0
2 Repeated Short
QOQOOOOOQOQOOOOO
3 Under Voltage
QOQOQOOOQOQOQOOO
--
4 Over Voltage
QOQOQOQOOOOOOOOO
--
5 DC Offset
QOQOQOQOQOOOOOOO
6 Thermal Heatsink QOGOGOGOQOGOOOOO
7 Thermal Transformer
GOGOGOGOGOGOGOOO
AudioControl
2241 0 70th Avenue West, Mountlake Terrace, WA 98043 USA,
Phone 425-775-8461, FAX 425-778-3166
e-mail: sound.great@audiocontrol.com
Quick Start Guide PN 914-016-0 Rev A

AudioControl LC-1.800 Specifications

Power

power output at 4 ohms	500 Watts
power output at 2 ohms	800 Watts
fuse rating	2 x 40 Amps

Voltage and Input

input voltage (RCA) range	500mV to 6V RMS
speaker-level input voltage range	3V to 40V RMS
total harmonic distortion	< 0.01%

Audio Performance

signal-to-noise ratio	102 dBa, Ref 500 Watts@ 4 Ohms
damping factor	670@ 10 Volts, 4 Ohms Output, 100Hz
crossover	24 dB/Octave Linkwitz-Riley, Adjustable From 30-250Hz

Weight and Dimensions

weight	4.5 lbs
width	9.11"
depth	8.0"
height	2.11"
