AudioControl LC-1.800 User Manual

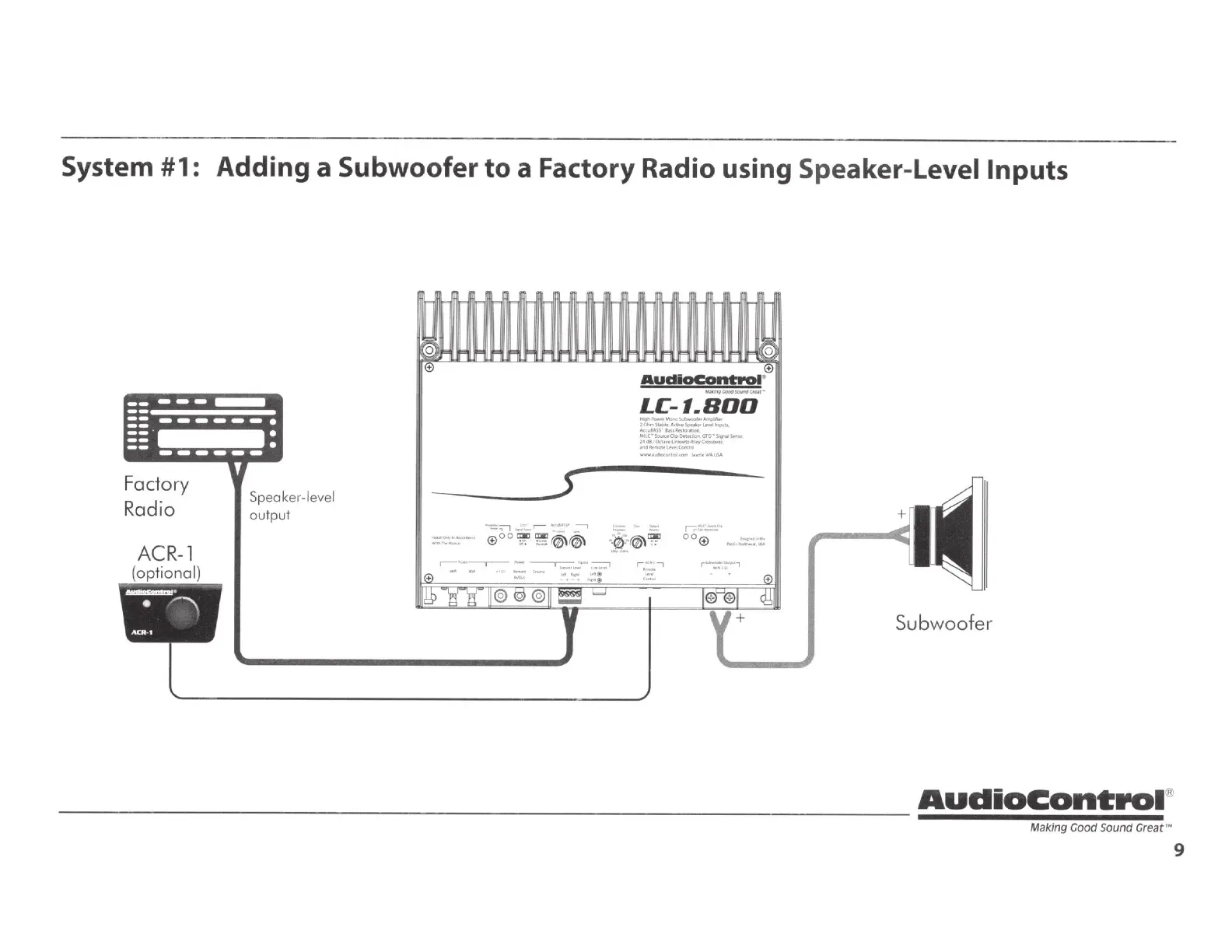

System #1:
Adding
a
Subwoofer
to
a Factory Radio using Speaker-Level
Inputs
Factory
Radio
ACR-1
(optiona
l)
-=-~
A.CR-1
Speaker-level
ou
t
put
--
5
AudioControt
•
-
....
COOd~CI'H(-
LC-I.BDD
I
_..,_,
.~,.,..
~~
...
,._
,.._
..............
~
""'MH.._,...,..
__
...
~.~·~eOc.OIN<-.r.lo·~w..
.
;··~~
....
c.-.
.,..,_.,_c...-
~:~
r-
........
..:'
·.:::=
.;;;.
r::....-:.."·
=~.:~·
0
00
~
~®
®
·
-0-®~
00
0
~~=.:::-.::
r.
·
.
...,
Subwoofer
Audiocont.-ol
:·;
------
--------------
----
------------------
-------
Making
Gooa
Sound Great'"
9

AudioControl LC-1.800 Specifications

Power

power output at 4 ohms	500 Watts
power output at 2 ohms	800 Watts
fuse rating	2 x 40 Amps

Voltage and Input

input voltage (RCA) range	500mV to 6V RMS
speaker-level input voltage range	3V to 40V RMS
total harmonic distortion	< 0.01%

Audio Performance

signal-to-noise ratio	102 dBa, Ref 500 Watts@ 4 Ohms
damping factor	670@ 10 Volts, 4 Ohms Output, 100Hz
crossover	24 dB/Octave Linkwitz-Riley, Adjustable From 30-250Hz

Weight and Dimensions

weight	4.5 lbs
width	9.11"
depth	8.0"
height	2.11"
