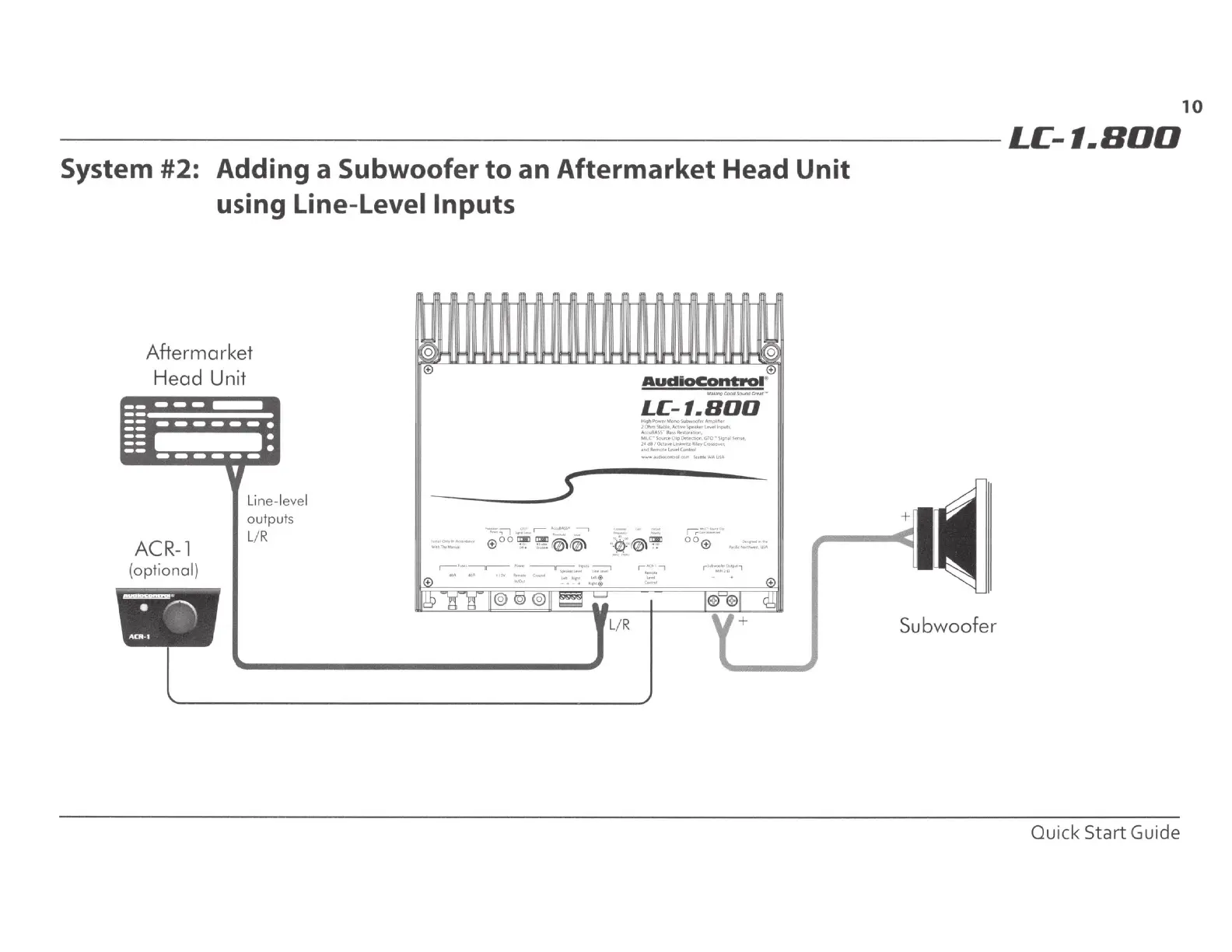

System #2: Adding a Subwoofer to an Aftermarket Head Unit
using Line-Level Inputs
Aftermarket
Head Unit
ACR-1
(optional)
~ ~
A.CR· I
Line-level
o ut puts
L/ R
-- _J
LC-1.800
Hoo,Jhl'owt<-s.booooft<.l.mp<fot<
l<lhro'l~t.otllt . .-.n-s,. .. l...-.1""""'
.... , ..... 6$ ' .... 111t\lor.toon.
Mll.(•!.o..oct<;,op!WIKtoon.GTO•SogNI~,..
]4 .. '()(t .... L"""""IW..,(t0\00¥ft _
....;"-">'!,1...,.1(-"01
____ .... <..., ~ .. nloWAU1A
- - =11 ·- .-- ..,, ...... -, - - - lr"'
···--·-· ;oo~~~~ · ~ ~~ oo-;...- ·--~
.... ,._ \!:I ~· - 'W''W' "V1J" 'W' . v ........... -..\Jl,O.
r-•-·._,....-- - --.-:--- ...... -----., r.o(•·...,
~ ~ '" ~= - :~ .. ;: .~~- ~
L/ R
Subw oofer
Quick St art Guide
10

AudioControl LC-1.800 Specifications

Power

power output at 4 ohms	500 Watts
power output at 2 ohms	800 Watts
fuse rating	2 x 40 Amps

Voltage and Input

input voltage (RCA) range	500mV to 6V RMS
speaker-level input voltage range	3V to 40V RMS
total harmonic distortion	< 0.01%

Audio Performance

signal-to-noise ratio	102 dBa, Ref 500 Watts@ 4 Ohms
damping factor	670@ 10 Volts, 4 Ohms Output, 100Hz
crossover	24 dB/Octave Linkwitz-Riley, Adjustable From 30-250Hz

Weight and Dimensions

weight	4.5 lbs
width	9.11"
depth	8.0"
height	2.11"
