Audiovox AMP-591A - Mono (Bridged) Input Wiring Diagram

R
L
LOW INPUT
HPF LPF
PROT PWR
BASS BOOST X-OVER
GAIN
-8-

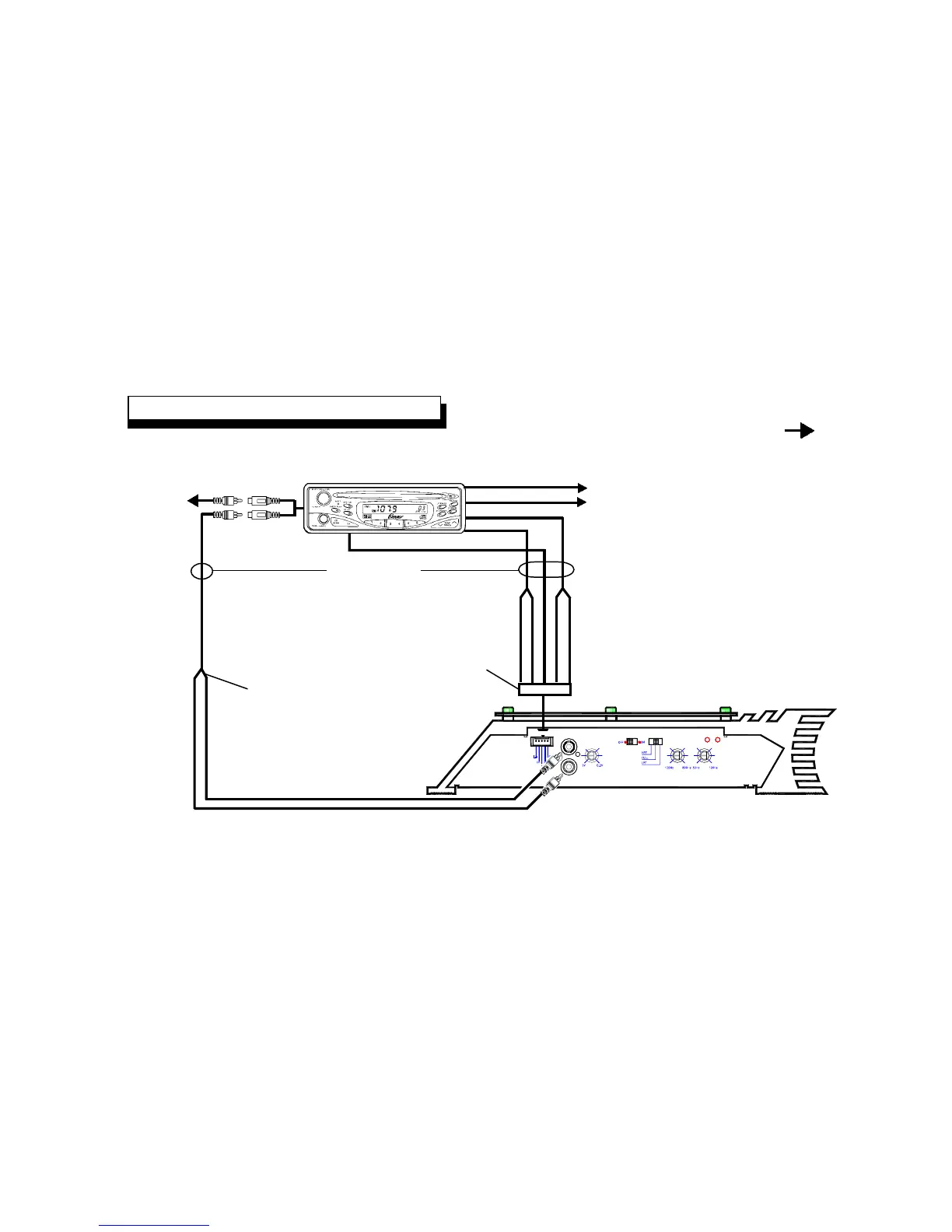

MONO (BRIDGED) INPUT WIRING DIAGRAM
CAR STEREO
LOW-LEVEL
RCA OUTPUTS
"Y" RCA TYPE
SHIELDED CABLE
(NOT SUPPLIED)
TO2nd
AMPLIFIER
IMPORTANT
USE EITHER HIGH OR LOW-LEVEL
INPUTS, NOT BOTH.
HIGH-LEVEL
(SPEAKER) OUTPUTS
+
-
+
-
TO 2nd AMPLIFIER
5-PIN
CONNECTOR
USETHISINPUTWIRINGWITH
OUTPUTWIRINGONPAGE9
GREEN
WHITE
GRAY
BROWN
BLACK
CHASSIS GROUND ON RADIO
HI-INPUT
