Audiovox AMP-591A - Stereo and Mixed-Mono Output Wiring Diagram

-
LEFT
SPEAKER

-

+
RIGHT
SPEAKER


+
STEREO MODE:2-8OHMS
MIXED-MONO MODE:4-8OHMS
STEREO MODE:2-8OHMS
MIXED-MONO MODE:4-8OHMS

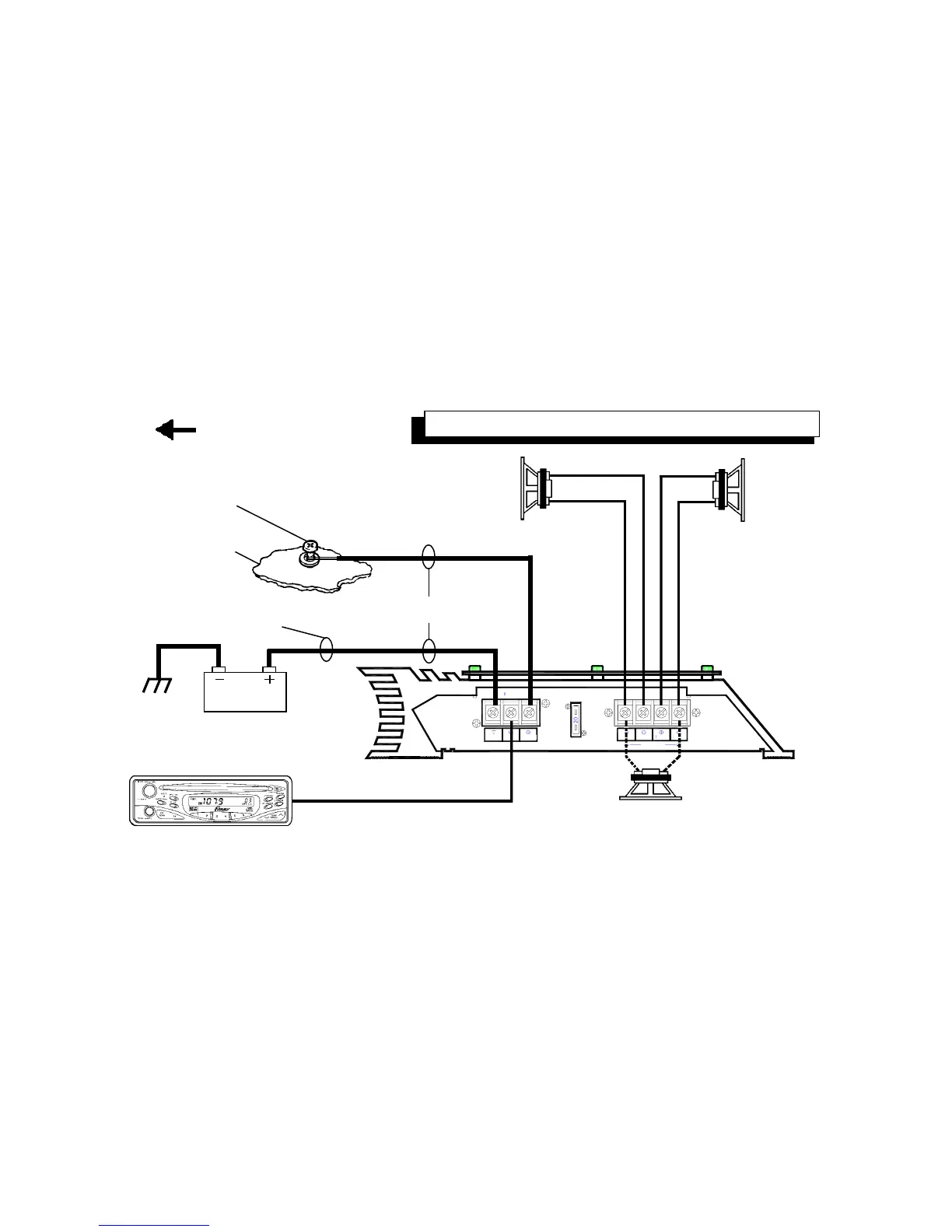

STEREO AND MIXED-MONO OUTPUT WIRING DIAGRAM
-7-
AUTO-ANTENNA LEAD
USE #16 GAUGE
WIRE (SEE TEXT)
CAR STEREO
CONNECT THIS
WIRE LAST
USE THIS OUTPUT WIRING WITH
INPUT WIRING ON PAGE 6
EXISTING SCREW OR BOLT
CLEAN PAINT, RUST, DIRT OR GREASE
FROM AREA FOR GOOD CONNECTION
GROUNDED METAL
SECTION OF VEHICLE
12 VOLT VEHICLE
BATTERY
CHASSIS
GROUND
MIXED-MONO SPEAKER OR
SUB-WOOFER WITH CROSSOVER
4-8 OHMS

-

+
BRIDGED
LEFT
LEFT RIGHT
RIGHT
20A
GND REM
BATT
POWER
FUSE
SPEAKER OUT
